CLUTCH

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

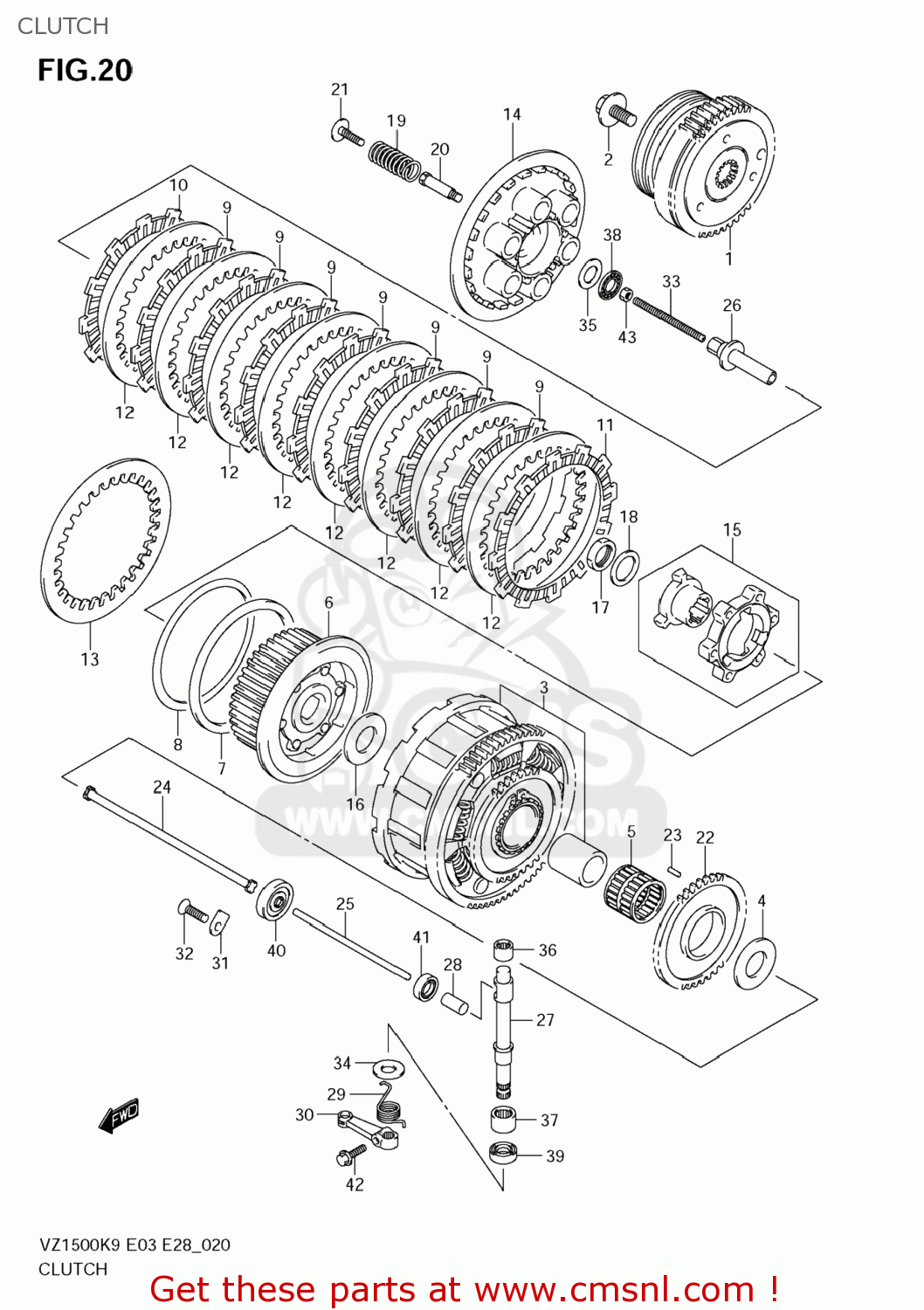

Clutch diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

CLUTCH VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
CLUTCH VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
CLUTCH VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
2110040810
ref: 1
GEAR,PRIMARY DRIVE SET
2110040810
€ 768.50
2
0910314010
ref: 2
BOLT(14X28)
0910314010
€ 15.00
3
2120040890
ref: 3
GEAR ASSY,PRI DRIVEN
2120040890
€ 488.00
4
0916025074
ref: 4
WASHER(25X52X2.5)
0916025074
€ 5.00
5
0926335013
ref: 5
BEARING(35X40X39.8)
0926335013
€ 29.00
6
2141040H00
ref: 6
HUB,CLUTCH SLEEVE
2141040H00
€ 155.00
7
2147124F00
ref: 7
SEAT,WAVE WASHER
2147124F00
€ 12.00
8
2147224F00
ref: 8
WASHER,CLUTCH PLATE WAVE
2147224F00
€ 12.50
9
2144124F40
ref: 9
PLATE,CLUTCH DRIVE NO.1 (NAS)
2144124F40
€ 19.00
10
2144124F10
ref: 10
PLATE,CLUTCH DRIVE NO.2 (NAS)
2144124F10
€ 18.50
11
2144224F00
ref: 11
PLATE,CLUTCH DRIVE NO.3 (NAS)
2144224F00
€ 16.00
12
2145124F00
ref: 12
PLATE,CLUTCH DRIVEN NO.1(T:2.0 (NAS)
2145124F00
€ 7.50
13
2145124F10
ref: 13
PLATE,CLUTCH DRIVEN NO.2(T:2.3 (NAS)
2145124F10
€ 7.50
14
2146216G00
ref: 14
DISC,CLUTCH PRESSURE
2146216G00
€ 61.00
15
2161002F20
ref: 15
CAM SET,CLUTCH
2161002F20
€ 209.50
16
0916025079
ref: 16
WASHER(25X50X3.5)
0916025079
€ 12.50
17
0915924010
ref: 17
NUT
0915924010
€ 11.00
18
0916424008
ref: 18
WASHER
0916424008
€ 3.00
19
2141340H00
ref: 19
SPRING,CLUTCH
€ 7.50
20
2148124F30
ref: 20
21481-24F31
BOLT,CLUTCH SP
€ 9.00
21
2148224F30
ref: 21
BOLT,CLUTCH SPRING
2148224F30
€ 4.00
22
1632140H00
ref: 22
GEAR,OIL PUMP DRIVE
€ 84.00
23
0926104009
ref: 23
PIN(4X15.8)
0926104009
€ 1.50
24
2311024F00
ref: 24
ROD,CLUTCH
2311024F00
€ 17.50
25
2311140H00
ref: 25
ROD,CLUTCH PUSH,L
2311140H00
€ 19.50
26
2312141G00
ref: 26
PIECE,CLUTCH PUSH
2312141G00
€ 33.00
27
2312240H00
ref: 27
CAMSHAFT,CLUTCH
€ 34.50
28
2312341G00
ref: 28
CAP,CLUTCH PUSH ROD
2312341G00
€ 9.00
29
2312548G00
ref: 29
SPRING,CLUTCH RELEASE RETURN
2312548G00
€ 2.50
30
2327148G00
ref: 30
ARM,CLUTCH RELEASE
2327148G00
€ 48.50
31
2474120A00
ref: 31
RETAINER,COUNTER BEARING,R
2474120A00
€ 2.00
32
0912606011
ref: 32
SCREW(6X12)
0912606011
€ 2.00
33
0913406015
ref: 33
SCREW(6X73)
0913406015
€ 5.50
34
0916010020
ref: 34
WASHER(10.5X24X1)
0916010020
€ 2.00
35
0916015045
ref: 35
WASHER(15.5X28X1)
0916015045
€ 4.00
36
0926310014
ref: 36
BEARING(10X14X10)
0926310014
€ 12.00
37
0926312027
ref: 37
BEARING(12X18X12)
0926312027
€ 6.00
38
0926315003
ref: 38
BEARING(15X28X2)
0926315003
€ 7.00
39
0928210012
ref: 39
SEAL,OIL(10X20X6)
0928210012
€ 7.50
40
0928306005
ref: 40
SEAL,OIL(6X18X5)
0928306005
€ 8.50
41
0928510004
ref: 41
SEAL,OIL(10X17X5)
0928510004
€ 3.50
42
015470620A
ref: 42
BOLT
015470620A
€ 2.50
43
083100006A
ref: 43
NUT
083100006A
€ 2.00
