WATER PUMP

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

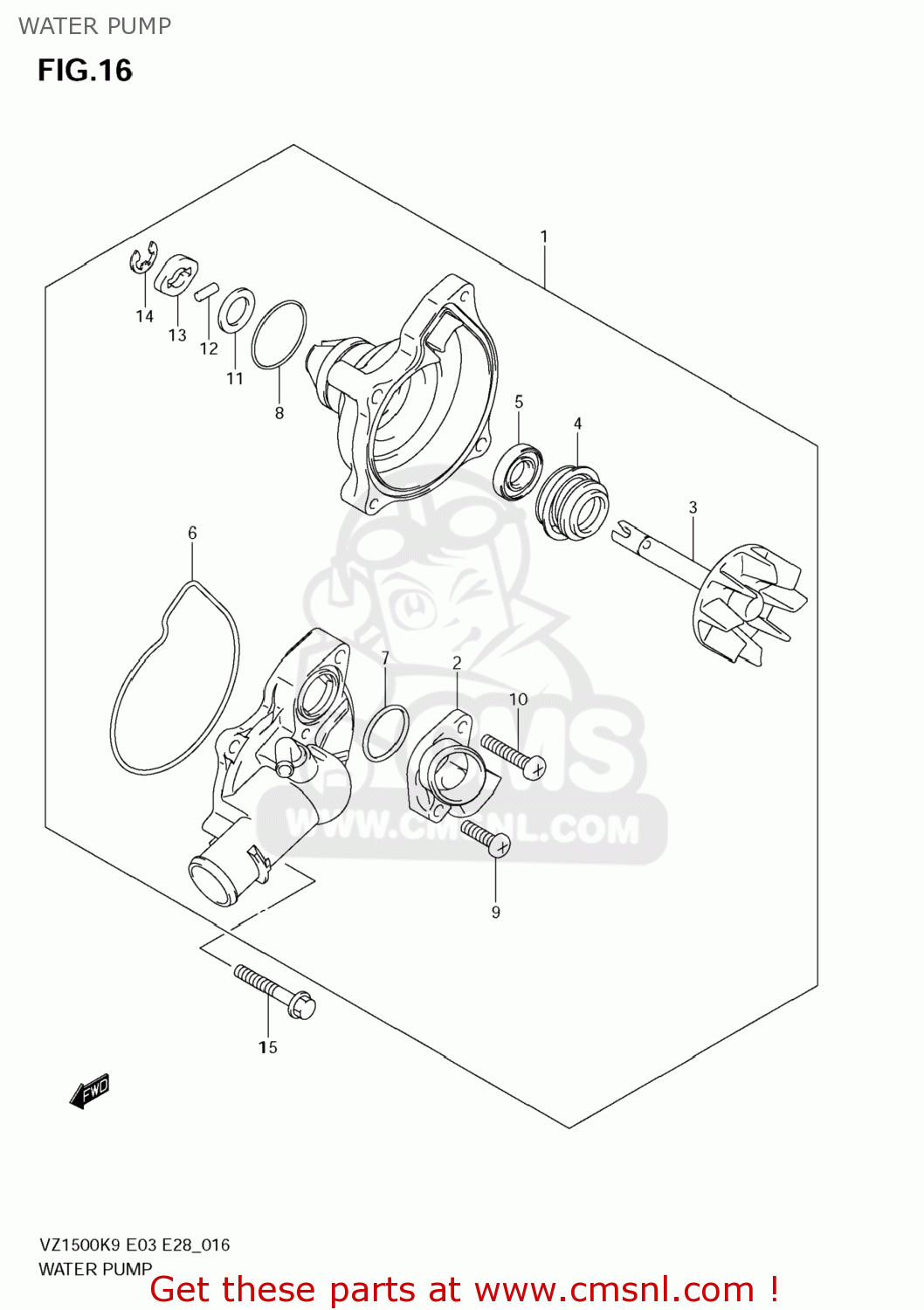

Water pump diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1740040H00
ref: 1

PUMP ASSY,WATER

€ 356.00

1741240H00
ref: 2

CONNECTOR

€ 39.50

1749140H00
ref: 3

IMPELLER

€ 37.50

1747002F10
ref: 4

SEAL,MECHANICAL

€ 21.50

1746148G00
ref: 5

SEAL,OIL

€ 11.00

1741840H00
ref: 6

O RING

€ 9.00

1741738A00
ref: 7

O RING

€ 2.50

1743533400
ref: 8

O RING,WATER PUMP HOLDER

€ 13.00

021120620A
ref: 9

SCREW

€ 1.50

021120635A
ref: 10

SCREW

€ 1.00

1743207G00
ref: 11

WASHER

€ 2.00

1748203G00
ref: 12

PIN

€ 1.50

1743211H00
ref: 13

CAP

€ 8.00

083321108A
ref: 14

E RING

€ 2.00

015470640A
ref: 15

BOLT

€ 2.50
