FRONT FENDER

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

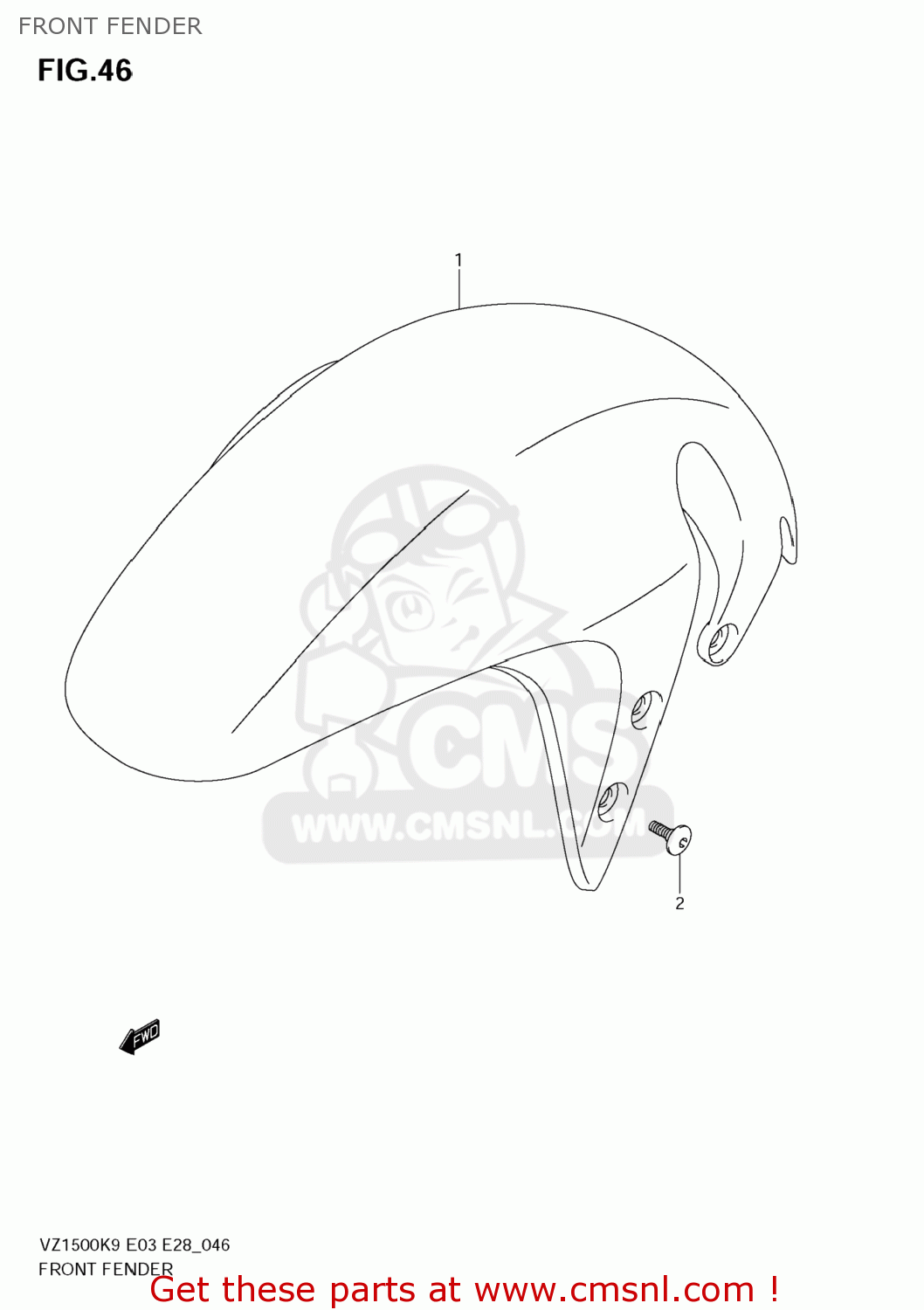

Front fender diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

FRONT FENDER VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

FRONT FENDER VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

5311140H00YAY
ref: 1-1

FENDER,FR

€ 217.50

1-2

5311140H00YHL
ref: 1-2

FENDER,FR

€ 217.50

1-3

5311140H00YSF
ref: 1-3

FENDER,FR

€ 217.50

2

0913906131
ref: 2

SCREW(6X16)

€ 4.00
