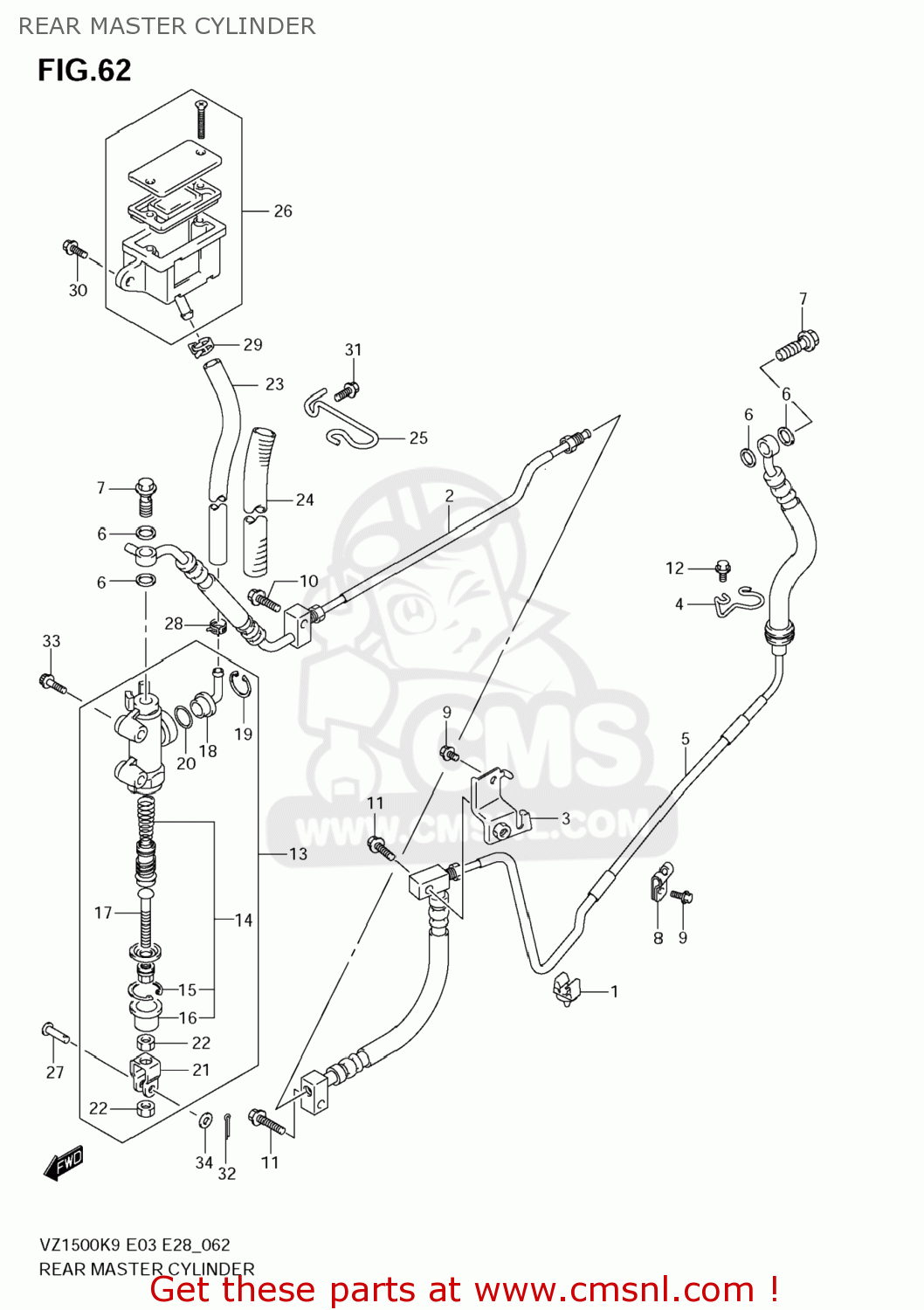

REAR MASTER CYLINDER

ref

part #

description

quantity

1

5176179J00
ref: 1

CLAMP,BK PIPE SIDE MEMBER

€ 3.00

2

6920040H00
ref: 2

HOSE ASSY,RR BRAKE NO.1

€ 89.00

3

6926040H00
ref: 3

CLAMP,RR BRAKE HOSE

€ 10.50

4

6927840H00
ref: 4

GUIDE,RR BRAKE HOSE

€ 7.50

5

6940040H00
ref: 5

HOSE ASSY,RR BRAKE NO.2

€ 167.00

6

0916110009
ref: 6

WASHER(10X15X1.5)

€ 2.00

7

0936010062
ref: 7

BOLT UNION

€ 5.00

8

0940307401
ref: 8

CLAMP

€ 3.00

9

015470612A
ref: 9

BOLT

€ 2.00

10

015470620A
ref: 10

BOLT

€ 2.50

11

015470625A
ref: 11

BOLT

€ 2.50

12

015500612A
ref: 12

BOLT

€ 2.50

13

6960048G10
ref: 13

CYLINDER ASSY,RR MASTER

€ 204.50

14

6960040810
ref: 14

PISTON/CUP SET

€ 41.00

15

5116270040
ref: 15

CIRCLIP

€ 3.00

16

6969100A00
ref: 16

BOOT

€ 3.50

17

6967044B00
ref: 17

ROD,PUSH

€ 19.50

18

6967200B20
ref: 18

CONNECTOR

€ 5.00

19

6967400B20
ref: 19

CIRCLIP

€ 3.00

20

6968634200
ref: 20

O RING

€ 3.50

21

6969219A00
ref: 21

YOKE

€ 10.50

22

6969305A00
ref: 22

NUT

€ 1.50

23

6973040H00
ref: 23

HOSE,RR RESERVOIR TANK

€ 49.50

24

6973240H00
ref: 24

HEATSHIELD

€ 11.50

25

6973840H00
ref: 25

GUIDE,RR RSVR TANK HOSE

€ 7.50

26

6974040H00
ref: 26

TANK ASSY,RR RESERVOIR

€ 93.50

27

0920006068
ref: 27

PIN(6X18.2)

€ 5.00

28

0940112404
ref: 28

CLIP

€ 2.50

29

0940113417
ref: 29

CLIP

€ 2.50

30

015470616A
ref: 30

BOLT

€ 2.00

31

021620616A
ref: 31
02162-0616B

SCREW

€ 1.50

32

041112015A
ref: 32

PIN

€ 1.50

33

071200625A
ref: 33

BOLT

€ 2.50

34

083220106A
ref: 34

WASHER

€ 2.00

all assemblies
