HEADLAMP

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

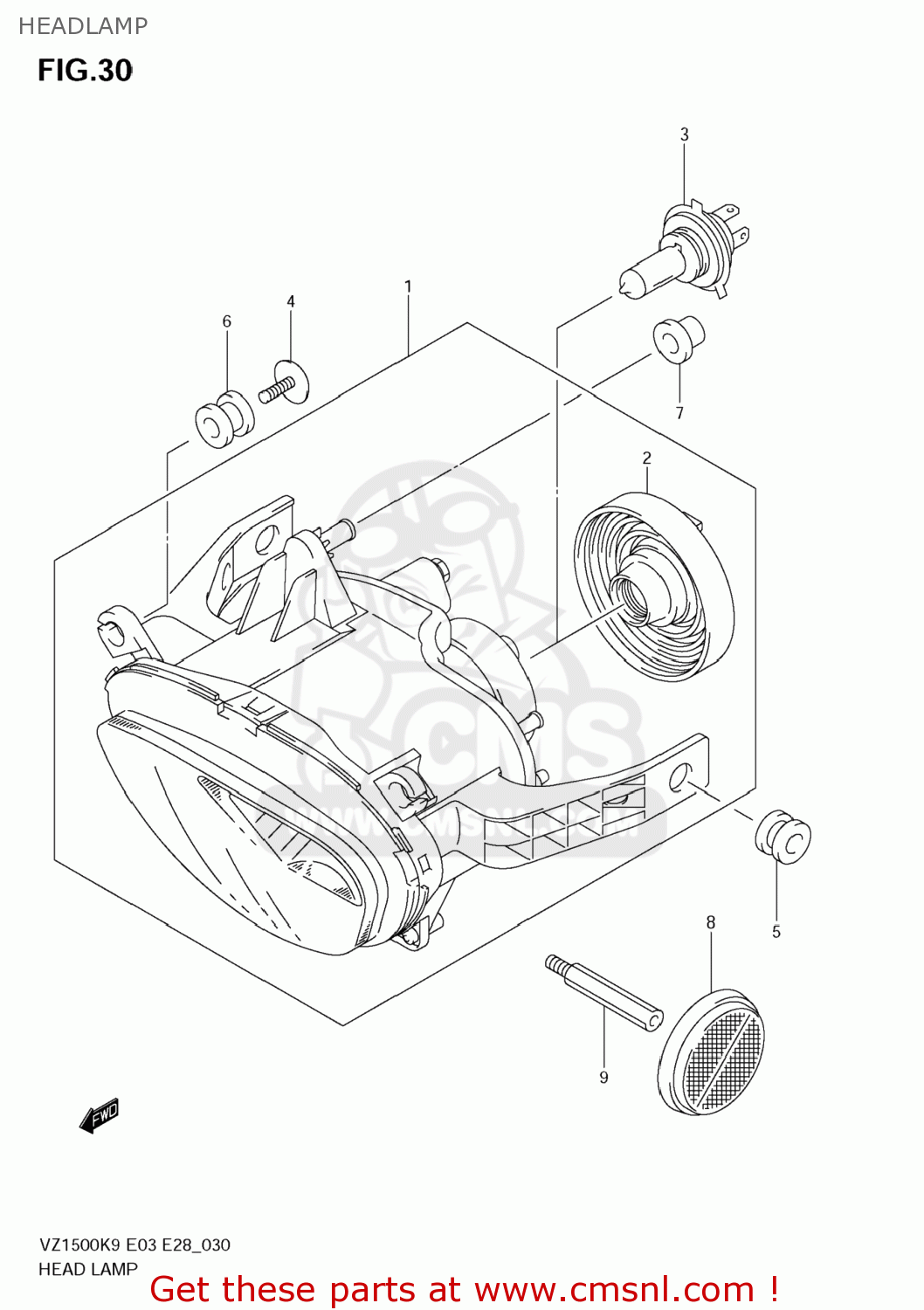

Headlamp diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

HEADLAMP VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

HEADLAMP VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3510048G40999
ref: 1

HEADLAMP ASSY

€ 255.50

2

3517314G00
ref: 2

COVER

€ 11.50

3

0947112060
ref: 3

BULB(12V60/55W,H4)

€ 8.00

4

0913605062
ref: 4

SCREW(5X15)

€ 2.50

5

0932009506
ref: 5

CUSHION

€ 2.00

6

0932009039
ref: 6

CUSHION

€ 6.00

7

0932009505
ref: 7

CUSHION

€ 3.50

8

3595014A10
ref: 8
35950-14A11

REFLECTOR,REFLEX

€ 11.00

9

0911906104
ref: 9

BOLT

€ 9.50
