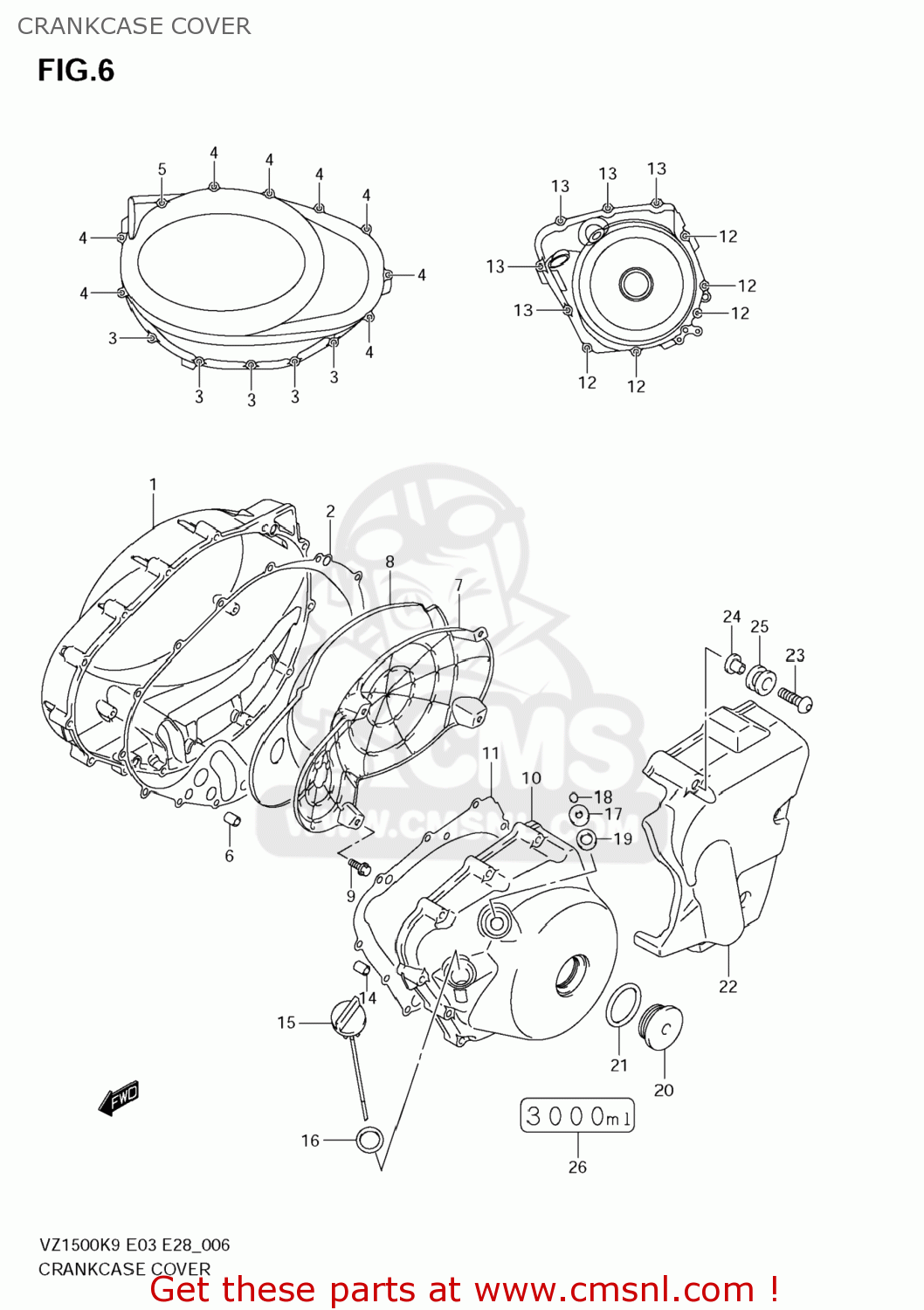

CRANKCASE COVER

ref

part #

description

quantity

1

1134140H00
ref: 1

COVER,CLUTCH

€ 857.50

2

1148240H00
ref: 2

GASKET,CL COVER (NAS)

€ 23.50

3

0910306213
ref: 3

BOLT(6X30)

€ 2.50

4

0910306215
ref: 4

BOLT(6X40)

€ 2.00

5

0910306238
ref: 5

BOLT(6X50)

€ 2.50

6

0421109189
ref: 6

PIN

€ 2.00

7

1134240H00
ref: 7

PLATE,CLUTCH COVER

€ 42.50

8

1134340H00
ref: 8

DAMPER,CLUTCH COVER

€ 62.50

9

015470612A
ref: 9

BOLT

€ 2.00

10

1135140H00
ref: 10

COVER,MAGNETO

€ 789.50

11

1148340H00
ref: 11

GASKET,MAGNETO COVER (NAS)

€ 16.00

12

0910306213
ref: 12

BOLT(6X30)

€ 2.50

13

0910306215
ref: 13

BOLT(6X40)

€ 2.00

14

0421109149
ref: 14

PIN

€ 2.00

15

1197109403
ref: 15

GAUGE,OIL LEVEL

€ 8.00

16

0928017003
ref: 16

O RING(D:3.1,ID:16.8)

€ 2.00

17

0924814005
ref: 17

PLUG,14X12

€ 5.00

18

0925008012
ref: 18

CAP(OD:12)

€ 2.00

19

0916814002
ref: 19
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

20

0925936008
ref: 20

Chrome Crankshaft Plug

€ 8.50

21

0928033004
ref: 21

O RING(D:3.1,ID:32.7)

€ 2.50

22

1136140H00
ref: 22

COVER,SECONDARY DRIVE UNIT

€ 159.00

23

0913906028
ref: 23

SCREW(6X20)

€ 3.50

24

0916906062
ref: 24

WASHER

€ 3.00

25

0932009501
ref: 25

CUSHION

€ 2.00

26

6832240H00
ref: 26

NOTE,ENGINE OIL

€ 5.50
