CYLINDER

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

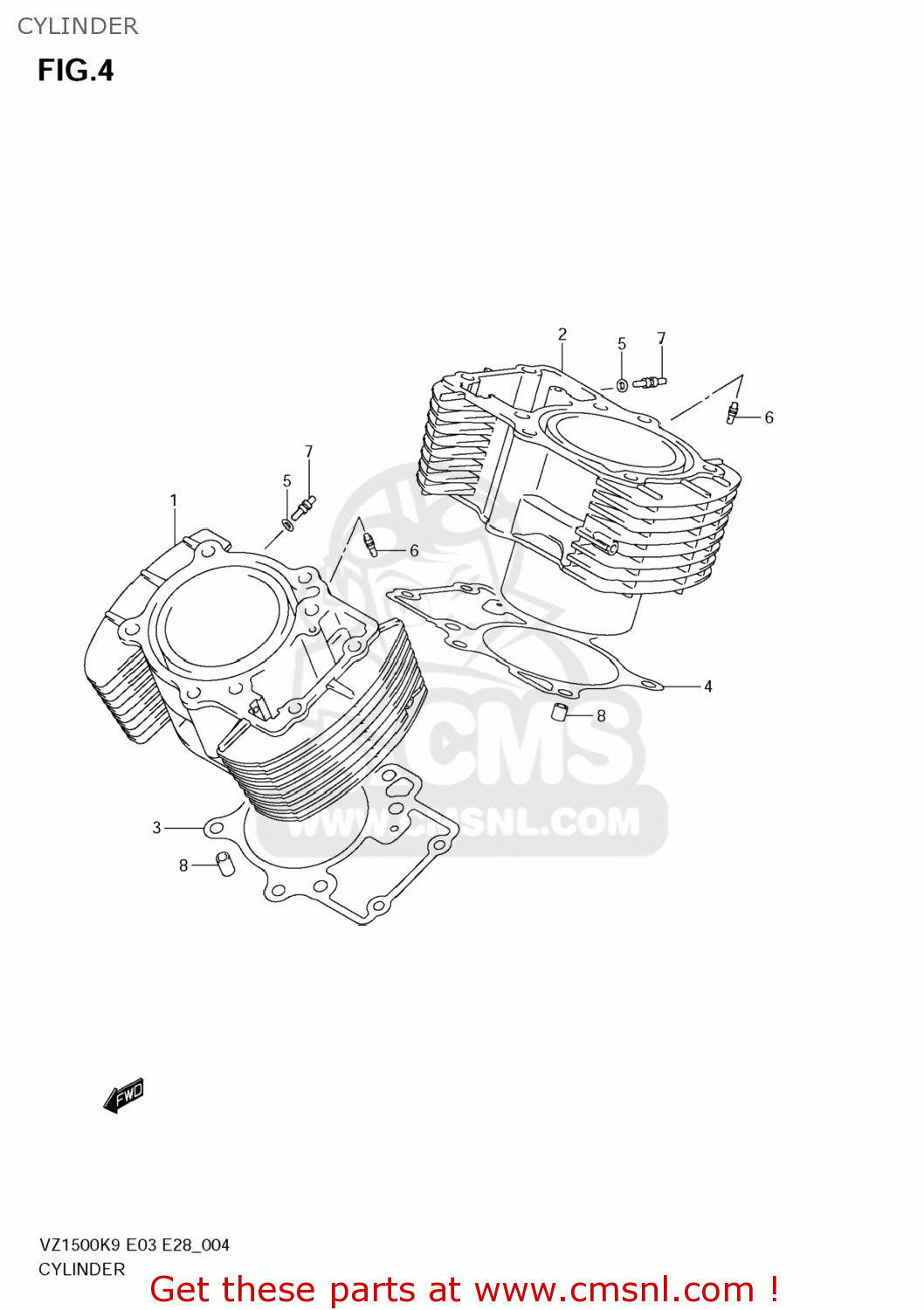

Cylinder diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

CYLINDER VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

CYLINDER VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

1121140H000F0
ref: 1

CYLINDER,FR

€ 925.50

2

1122140H000F0
ref: 2

CYLINDER,RR

€ 700.00

3

1124140H00
ref: 3

GASKET,CYLINDER FR (NAS)

€ 14.50

4

1124240H00
ref: 4

GASKET,CYLINDER RR (NAS)

€ 14.50

5

0928004004
ref: 5

O RING(D:1.2,ID:4)

€ 2.00

6

0949328015
ref: 6

JET,OIL GALLERY

€ 13.50

7

0949380005
ref: 7

JET(8)

€ 12.00

8

0421113189
ref: 8

PIN

€ 2.50
