FUEL TANK UPPER COVER

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

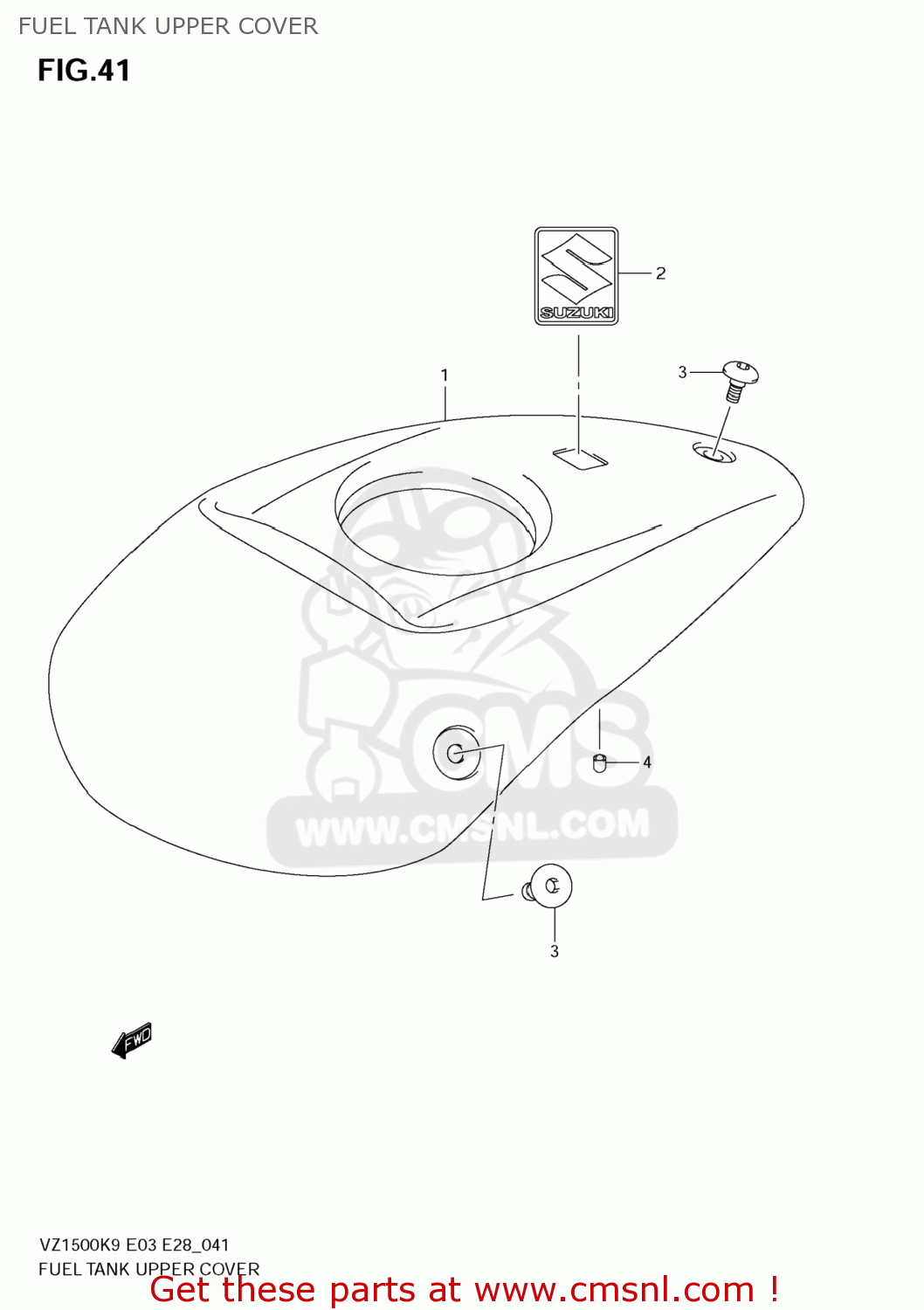

Fuel tank upper cover diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

FUEL TANK UPPER COVER VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

FUEL TANK UPPER COVER VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

4429140H00
ref: 1

COVER,FUEL TANK UPR

€ 168.00

2

6828135F00
ref: 2

EMBLEM,S

€ 13.00

3

0913906152
ref: 3

SCREW(6X12)

€ 4.50

4

0932903001
ref: 4

CUSHION

€ 1.50
