FRONT MASTER CYLINDER

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

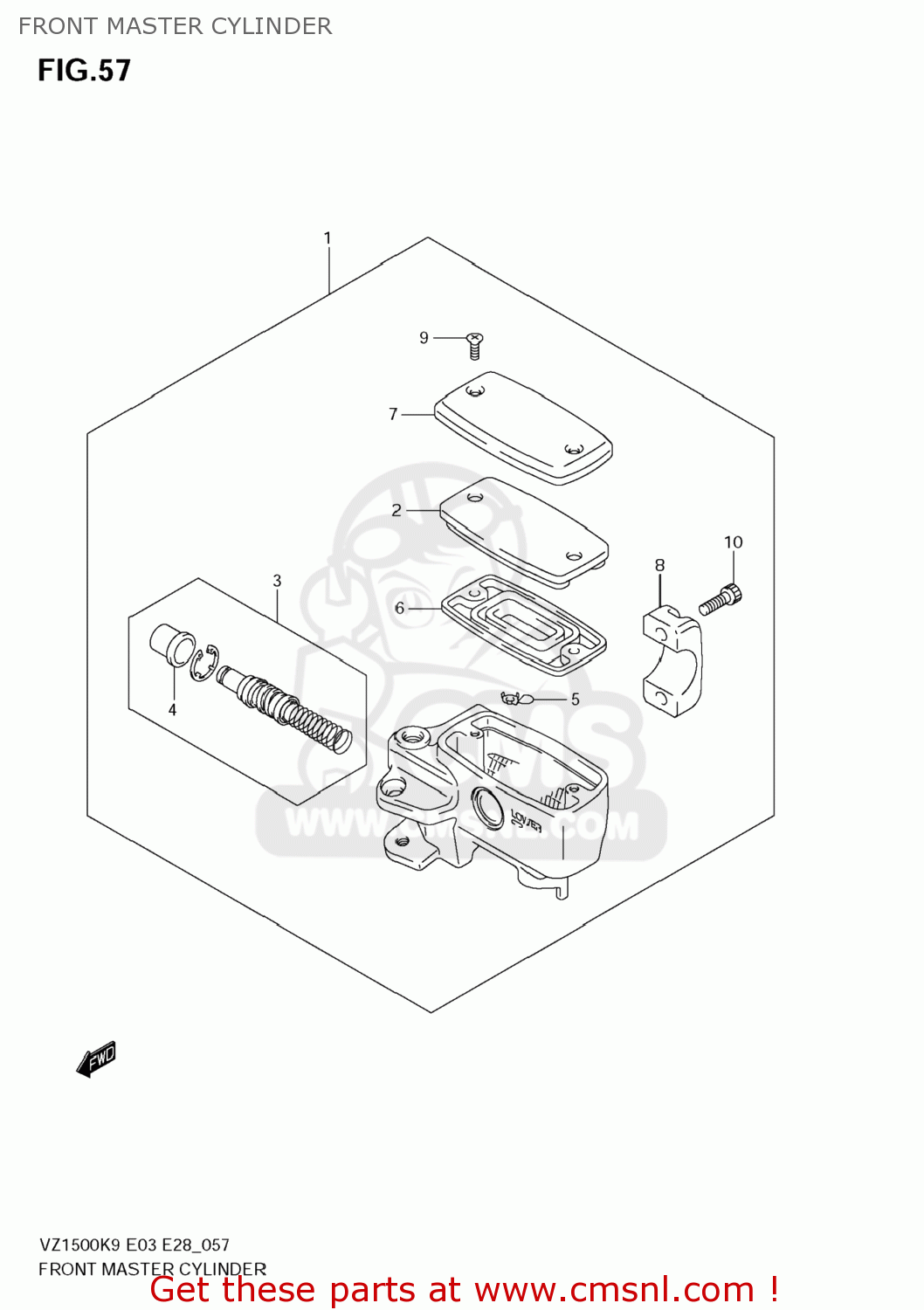

Front master cylinder diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

FRONT MASTER CYLINDER VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

FRONT MASTER CYLINDER VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

5960010F61
ref: 1

CYLINDER ASSY,FR MASTER

€ 338.50

2

5743710F00
ref: 2

PLATE,DIAPHRAGM

€ 13.00

3

5960145810
ref: 3

PISTON/CUP SET

€ 34.00

4

5966644300
ref: 4

BOOT

€ 6.00

5

5966432F00
ref: 5

PROTECTOR

€ 7.50

6

5966710F00
ref: 6

DIAPHRAGM

€ 7.00

7

5966910F10
ref: 7

CAP

€ 45.50

8

5967110F00
ref: 8

HOLDER

€ 30.50

9

0212204127
ref: 9

SCREW

€ 2.00

10

0713006207
ref: 10

BOLT

€ 3.50
