HANDLEBAR

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

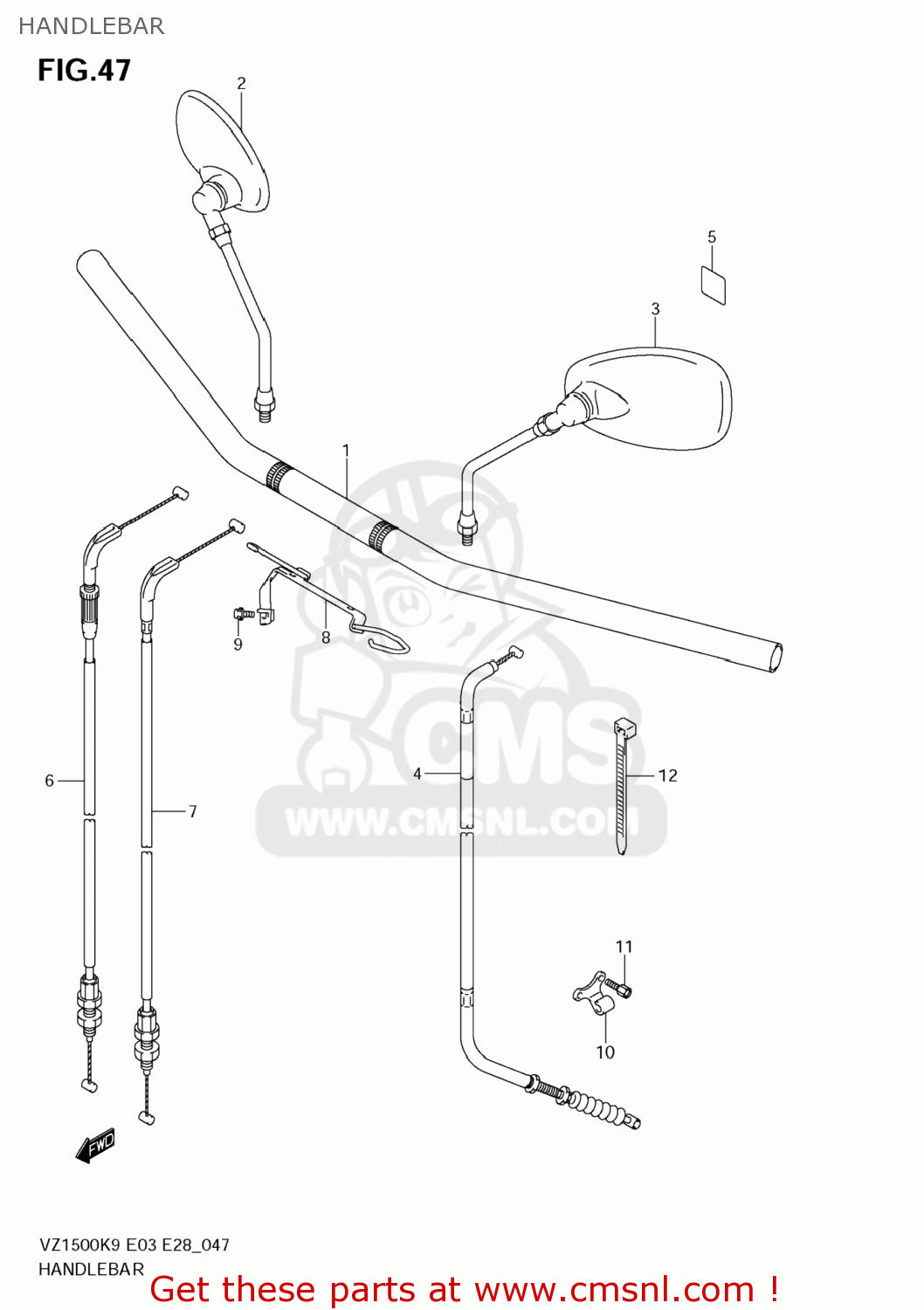

Handlebar diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

5611140H00
ref: 1

HANDLEBAR

€ 186.50

5650014G20
ref: 2

MIRROR ASSY,RR VIEW,R

€ 79.50

5660014G20
ref: 3

MIRROR ASSY,RR VIEW,L

€ 79.50

5820040H00
ref: 4

CABLE ASSY,CLUTCH

€ 52.00

8787356K50
ref: 5

PROTECTOR

€ 5.00

5830040H00
ref: 6

CABLE ASSY,THROTTLE NO.1

€ 30.50

5830040H10
ref: 7

CABLE ASSY,THROTTLE NO.2

€ 27.50

5862040H00
ref: 8

GUIDE,CABLE

€ 37.50

015470612B
ref: 9

BOLT

€ 2.00

5863440H00
ref: 10

STOPPER,CLUTCH CABLE

€ 12.50

015470612A
ref: 11

BOLT

€ 2.00

0940710403
ref: 12

CLAMP(L:95)

€ 2.50

all assemblies
