EVAP SYSTEM (E33)

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

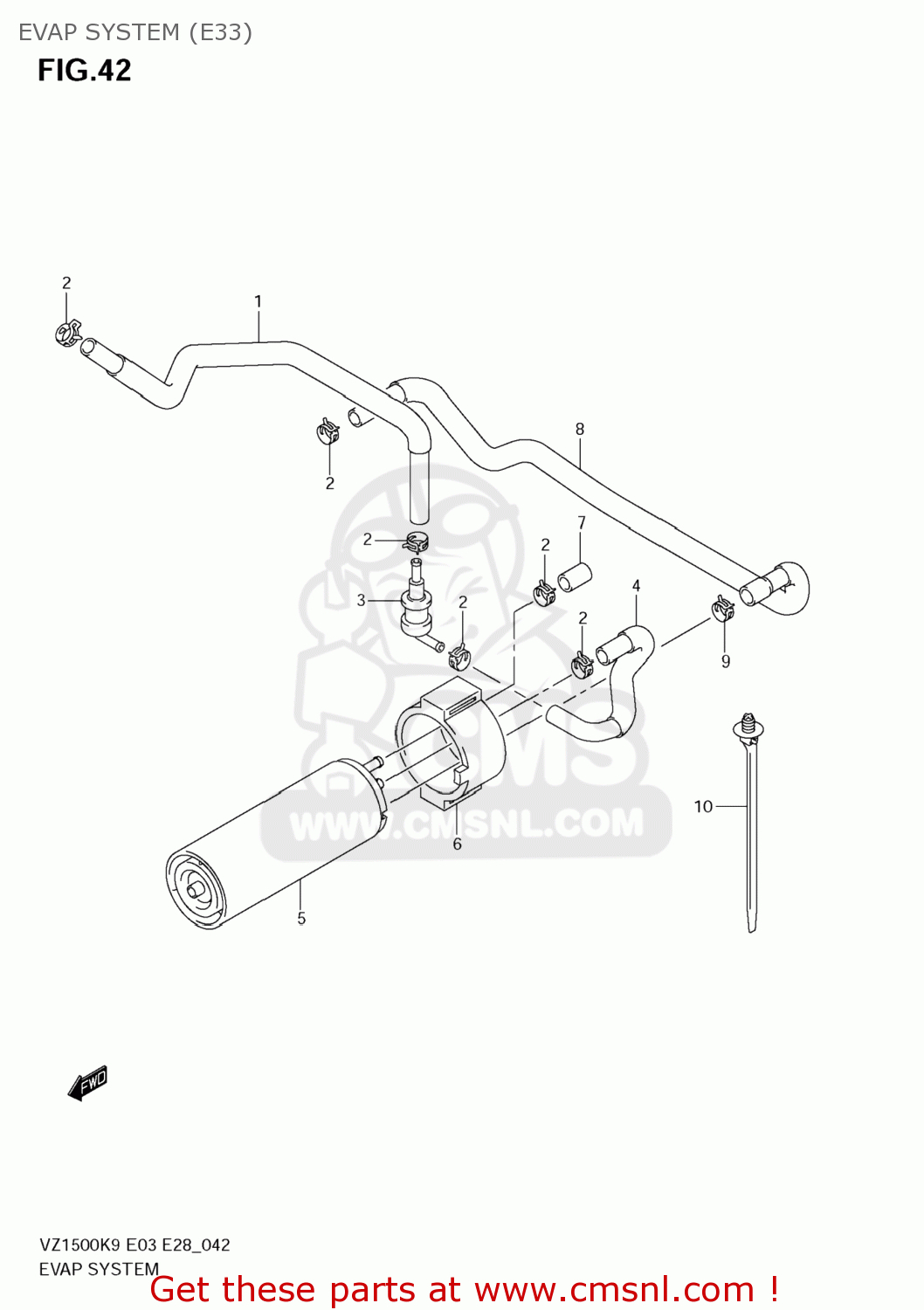

Evap system (e33) diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

EVAP SYSTEM (E33) VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
EVAP SYSTEM (E33) VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
EVAP SYSTEM (E33) VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
4443440H00
ref: 1
HOSE,TANK & BREATHER VALVE
€ 47.50
2
0940111413
ref: 2
CLIP
0940111413
€ 2.50
3
4424017C00
ref: 3
VALVE,FUEL TANK BREATHER
4424017C00
€ 40.00
4
4443540H00
ref: 4
HOSE,BREATHER VALVE & CANISTER
€ 19.50
5
1721015H00
ref: 5
CANISTER ASSY,CHARCOAL
€ 201.50
6
4488348G00
ref: 6
CUSHION,CANISTER
€ 0.00
7
0925107003
ref: 7
CAP,OD:11.5
0925107003
€ 2.00
8
4443640H00
ref: 8
HOSE,CSTR PURGE
€ 37.50
9
0940112404
ref: 9
CLIP
0940112404
€ 2.50
10
0940717403
ref: 10
CLAMP(L:154)
0940717403
€ 5.50
