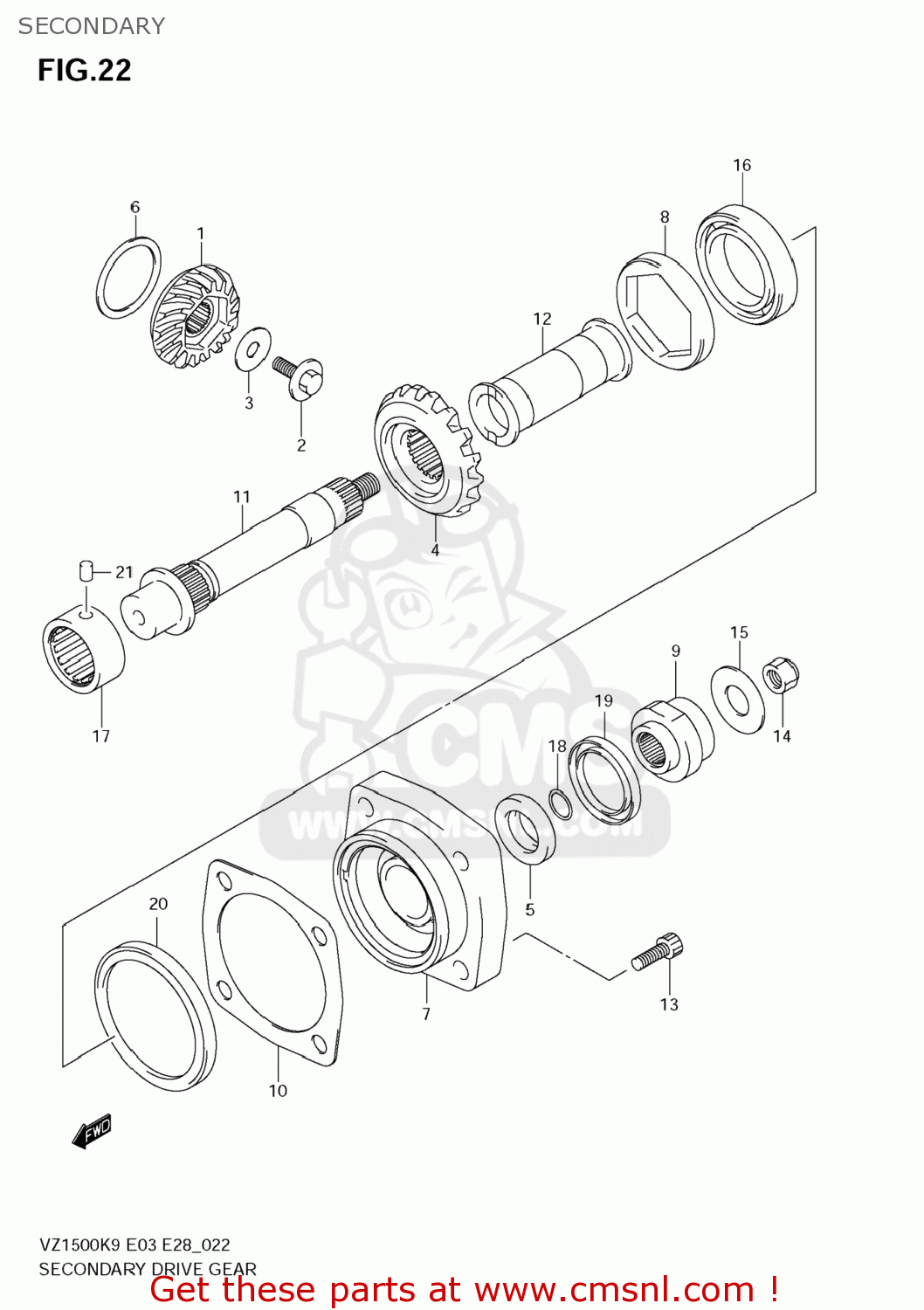

SECONDARY

ref

part #

description

quantity

1

2491140H00
ref: 1

GEAR,SECONDARY DRIVE

€ 245.50

2

0910312084
ref: 2

BOLT(12X24)

€ 5.50

3

0821112341
ref: 3

WASHER

€ 2.00

4

2492140H00
ref: 4

GEAR,SECONDARY DRIVEN

€ 278.00

5

2110231G00
ref: 5

SPACER,PRIMARY SHAFT

€ 11.50

6

2493540810
ref: 6

SHIM SET,SEC DRIVE

€ 83.00

6

2493540810
ref: 6

SHIM SET,SEC DRIVE

€ 83.00

7

2494140H00
ref: 7

HOUSING,SEC DRIVEN BEARING

€ 162.50

8

2494226D00
ref: 8

STOPPER,SEC DRIVEN BEARING

€ 37.00

9

2494340H00
ref: 9

COUPLING,SEC DRIVEN BEVEL

€ 92.50

10

2494540810
ref: 10

SHIM SET,SEC DRIVEN

€ 30.00

11

2496140H00
ref: 11

SHAFT,SECONDARY DRIVEN BEVEL

€ 151.50

12

2496240H00
ref: 12

SPACER,SEC DRIVEN BEVEL

€ 100.50

13

0910610087
ref: 13

BOLT(10X30)

€ 3.50

14

0915916013
ref: 14

NUT

€ 6.50

15

0916016040
ref: 15

WASHER(16.5X36X4)

€ 7.00

16

0926228014
ref: 16

BEARING(28X68X18)

€ 40.00

17

0926332021
ref: 17

BEARING(32X50X22)

€ 88.50

18

0928025004
ref: 18

O RING(D:2.4,ID:24.7)

€ 2.00

19

0928338011
ref: 19

SEAL,OIL(38X54X6)

€ 11.50

20

0928684001
ref: 20

SEAL,OIL(76X84X7)

€ 18.50

21

0422107129
ref: 21

PIN

€ 1.50

all assemblies
