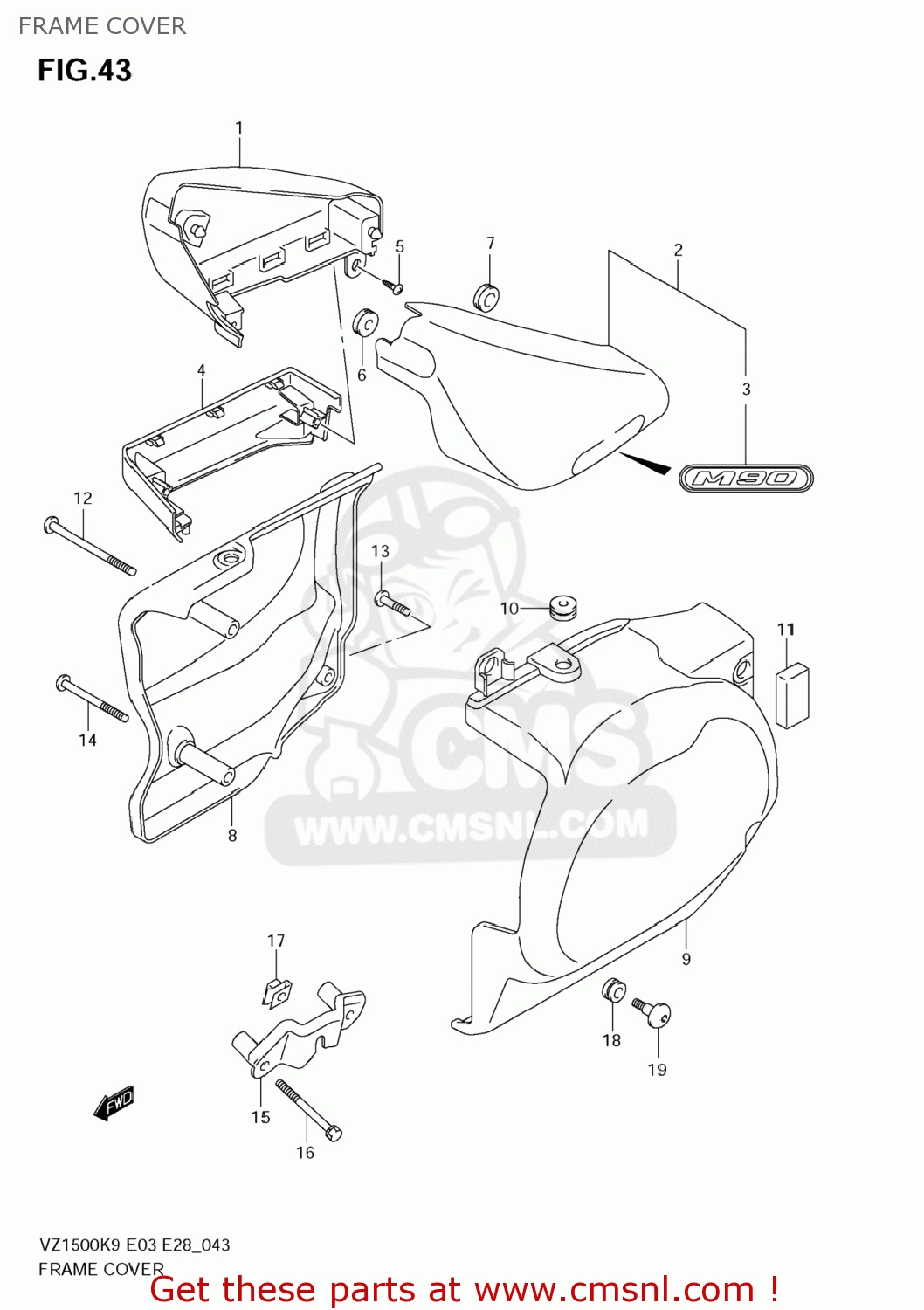

FRAME COVER

ref

part #

description

quantity

1-1

4711040H00YAY
ref: 1-1

COVER,SIDE,R(BLACK)

€ 151.50

1-2

4711040H00YHL
ref: 1-2

COVER,SIDE,R(RED)

€ 123.50

1-3

4711040H00YSF
ref: 1-3

COVER,SIDE,R(BLUE)

€ 151.50

2-1

4721040H00YAY
ref: 2-1

COVER,SIDE,L(BLACK)

€ 151.50

2-2

4721040H00YHL
ref: 2-2

COVER,SIDE,L(RED)

€ 151.50

2-3

4721040H00YSF
ref: 2-3

COVER,SIDE,L(BLUE)

€ 151.50

3

6813140H00
ref: 3

EMBLEM,M90

€ 19.50

4

4712140H00
ref: 4

COVER,SIDE LWR,R

€ 78.00

5

035410516A
ref: 5

SCREW

€ 1.50

6

0932008049
ref: 6

CUSHION

€ 4.50

7

0932008018
ref: 7

CUSHION

€ 4.00

8

4713040H00
ref: 8

COVER,LWR,R

€ 185.50

9

4723140H00
ref: 9

COVER,LWR,L

€ 171.00

10

0932006504
ref: 10

CUSHION

€ 4.00

11

6341135B00
ref: 11
51827-01A00

MUD GUARD,REAR FENDER

€ 2.50

12

4713940H00
ref: 12

SCREW,LWR COVER,R FR UP

€ 10.00

13

0913906028
ref: 13

SCREW(6X20)

€ 3.50

14

4713840H00
ref: 14

SCREW,LWR COVER,R FR LWR

€ 9.00

15

4725040H00
ref: 15

BRACKET,LWR COVER,L

€ 20.00

16

015470650A
ref: 16

BOLT

€ 2.50

17

0914806018
ref: 17

NUT

€ 2.50

18

0932009016
ref: 18

CUSHION

€ 2.50

19

0913906126
ref: 19

SCREW(6X20)

€ 4.00
