HOLDER

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

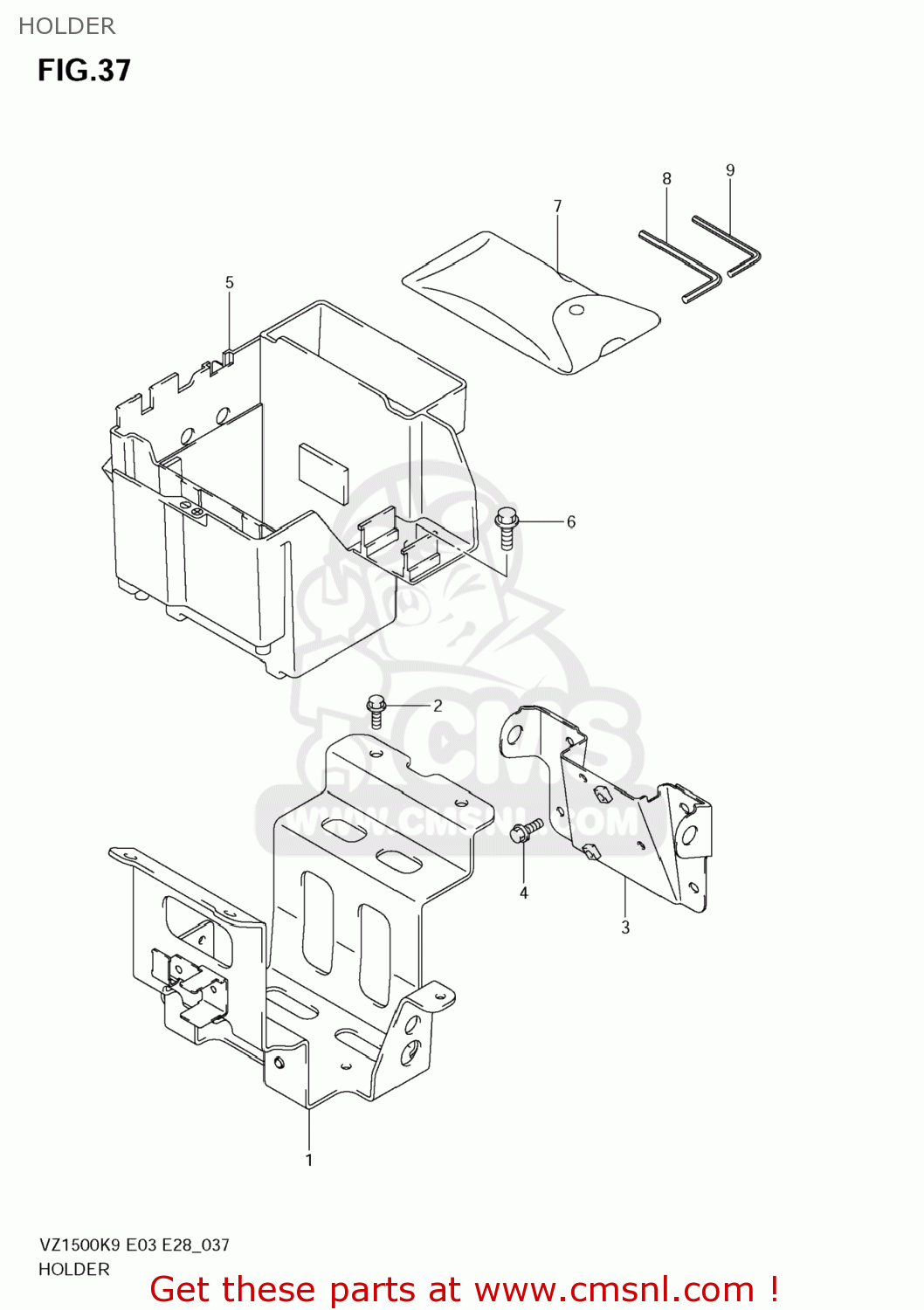

Holder diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

HOLDER VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

HOLDER VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

4154040H00
ref: 1

HOLDER,BATTERY

€ 69.50

2

015500812A
ref: 2

BOLT

€ 2.50

3

4155040H00
ref: 3

BUIS

€ 23.00

4

015470612A
ref: 4

BOLT

€ 2.00

5

4743140H00
ref: 5

HOLDER,ELECTRIC PARTS

€ 32.50

6

0911306001
ref: 6

BOLT(6X16)

€ 3.00

7

0980021055
ref: 7

TOOL ASSY

€ 6.00

8

0981600050
ref: 8

SPANNER,HEXAGON(6)

€ 5.50

9

0981600059
ref: 9

HEXAGON SPANNER,5

€ 5.50
