STAND

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

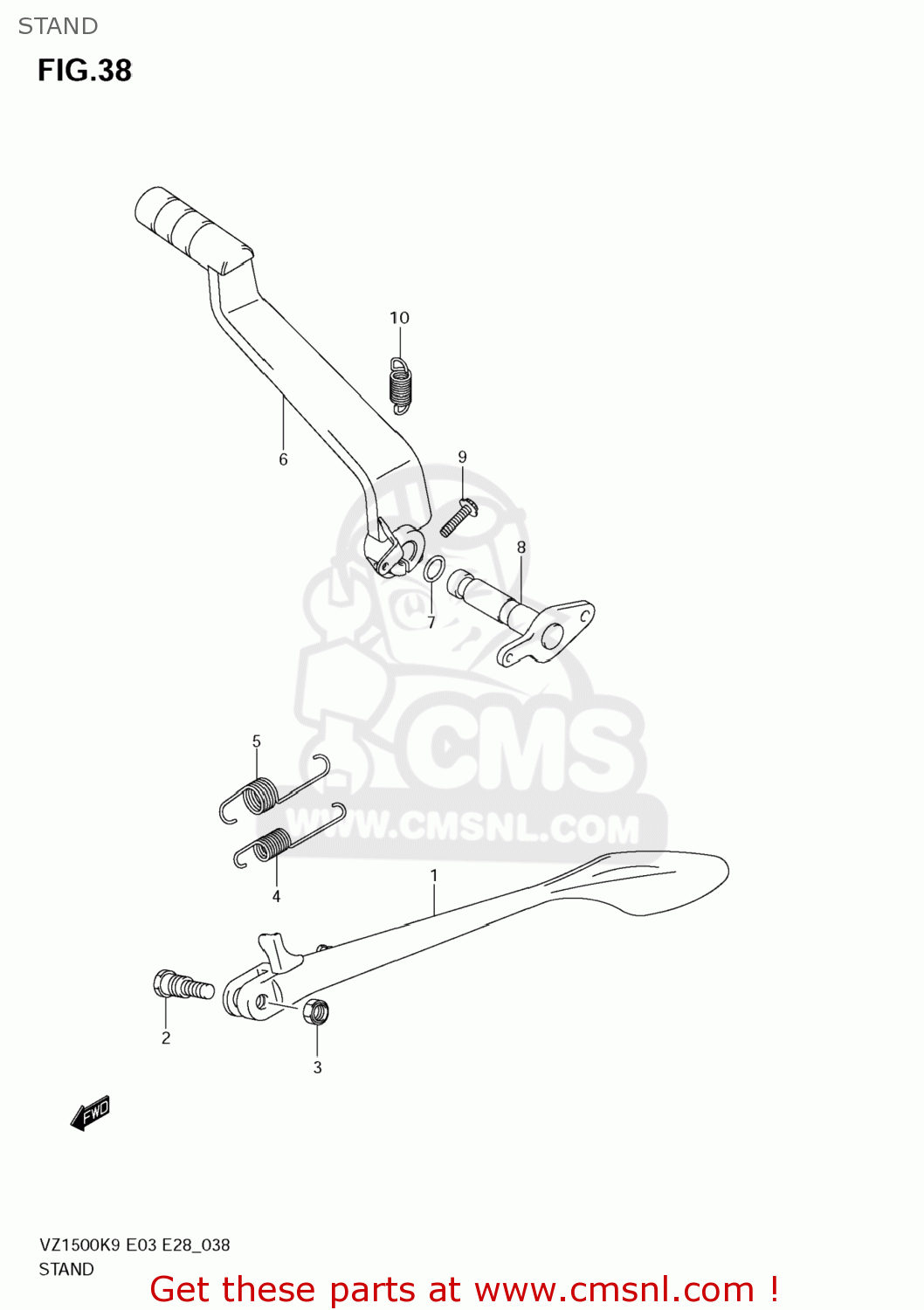

Stand diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

4231040H00
ref: 1

STAND,PROP

€ 247.00

0911110058
ref: 2

BOLT(10X37.5)

€ 6.00

4232103FK0
ref: 3

NUT,PROP STAND

€ 4.50

0944314069
ref: 4

SPRING

€ 7.00

0944319012
ref: 5

SPRING

€ 5.50

4311040H00
ref: 6
43110-40H01

PEDAL COMP,BRA

€ 135.50

0928014011
ref: 7

O RING(D:2.5,ID:13.8)

€ 3.50

4312040H00
ref: 8

ARM,BRAKE ROD

€ 45.00

071200625A
ref: 9

BOLT

€ 2.50

0944311030
ref: 10

SPRING

€ 4.00
