REAR FRAME

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

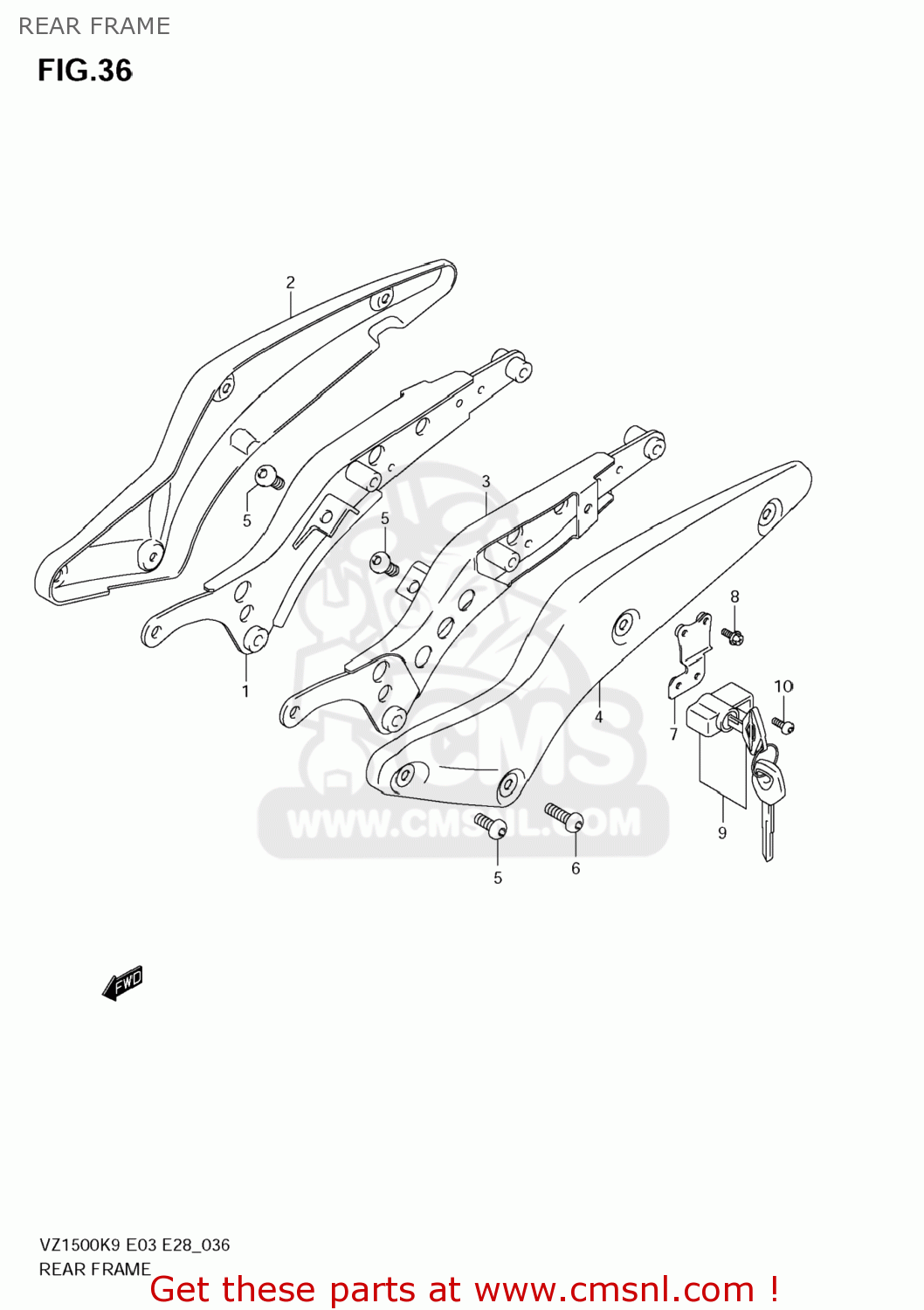

Rear frame diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

4265040H00
ref: 1

FRAME,RR,R

€ 115.50

4265140H00
ref: 2

PLATE,RR FRAME,R

€ 285.00

4266040H00
ref: 3

FRAME,RR,L

€ 115.50

4266140H00
ref: 4

PLATE,RR FRAME,L

€ 549.00

0913910003
ref: 5

BOLT(10X25)

€ 6.00

0913910005
ref: 6

BOLT(10X35)

€ 7.50

9571040H00
ref: 7

BRACKET,HELMET LOCK

€ 9.00

021620612A
ref: 8

SCREW

€ 2.50

9570041821
ref: 9

LOCK SET,HELMET

€ 88.00

0913906089
ref: 10

SCREW(6X14)

€ 2.50
