REAR SWINGINGARM

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

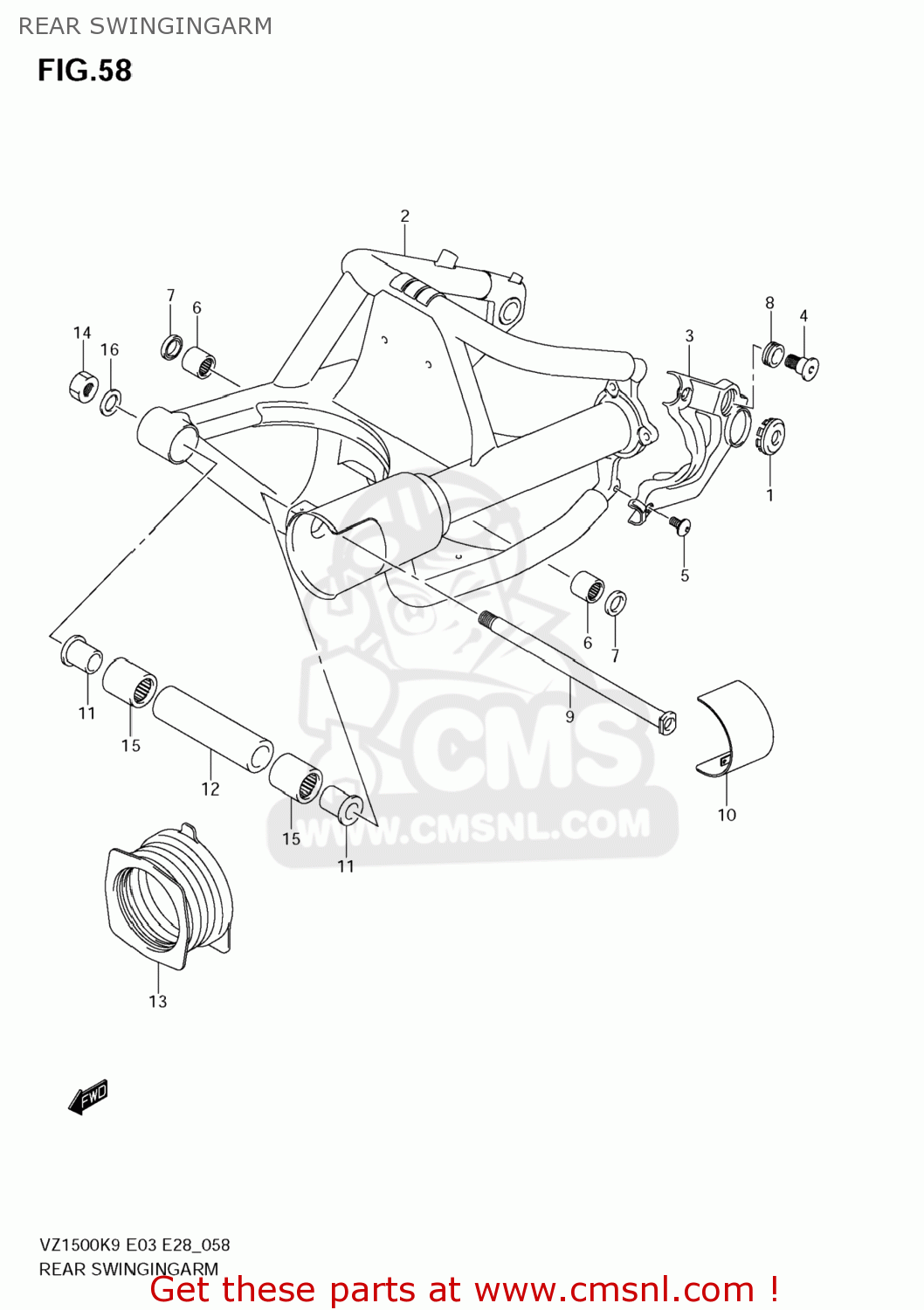

Rear swingingarm diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

4189942F10
ref: 1

CAP,FRAME PIVOT

€ 8.50

6110040H00019
ref: 2

SWINGINGARM,RE

€ 1,537.50

6112640H00019
ref: 3

COVER,RR SWINGINGARM,L(BLACK)

€ 165.00

6112741F10
ref: 4

BOLT,RR SWGARM

€ 10.50

0913908007
ref: 5

SCREW(8X16)

€ 4.50

0926322071
ref: 6

BEARING(22X29X25)

€ 18.50

0928522001
ref: 7

SEAL,OIL(22X29X4)

€ 5.00

0932022003
ref: 8

CUSHION

€ 3.00

6121122D00
ref: 9

SHAFT,RR SWINGINGARM PIVOT

€ 67.00

6123040H00
ref: 10

COVER,RR SWGARM PIVOT,L

€ 35.50

6125131E00
ref: 11

SPACER,RR SWGARM PIVOT BERRING

€ 16.00

6128048G01
ref: 12

SPACER,RR SWGARM PIVOT CTR

€ 20.50

6137240H00
ref: 13

BOOT,PROPELLER

€ 17.00

0915918007
ref: 14

NUT

€ 14.00

0926325059
ref: 15

BEARING(25X33X35)

€ 35.00

083220118B
ref: 16

WASHER

€ 2.50
