STARTER CLUTCH

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

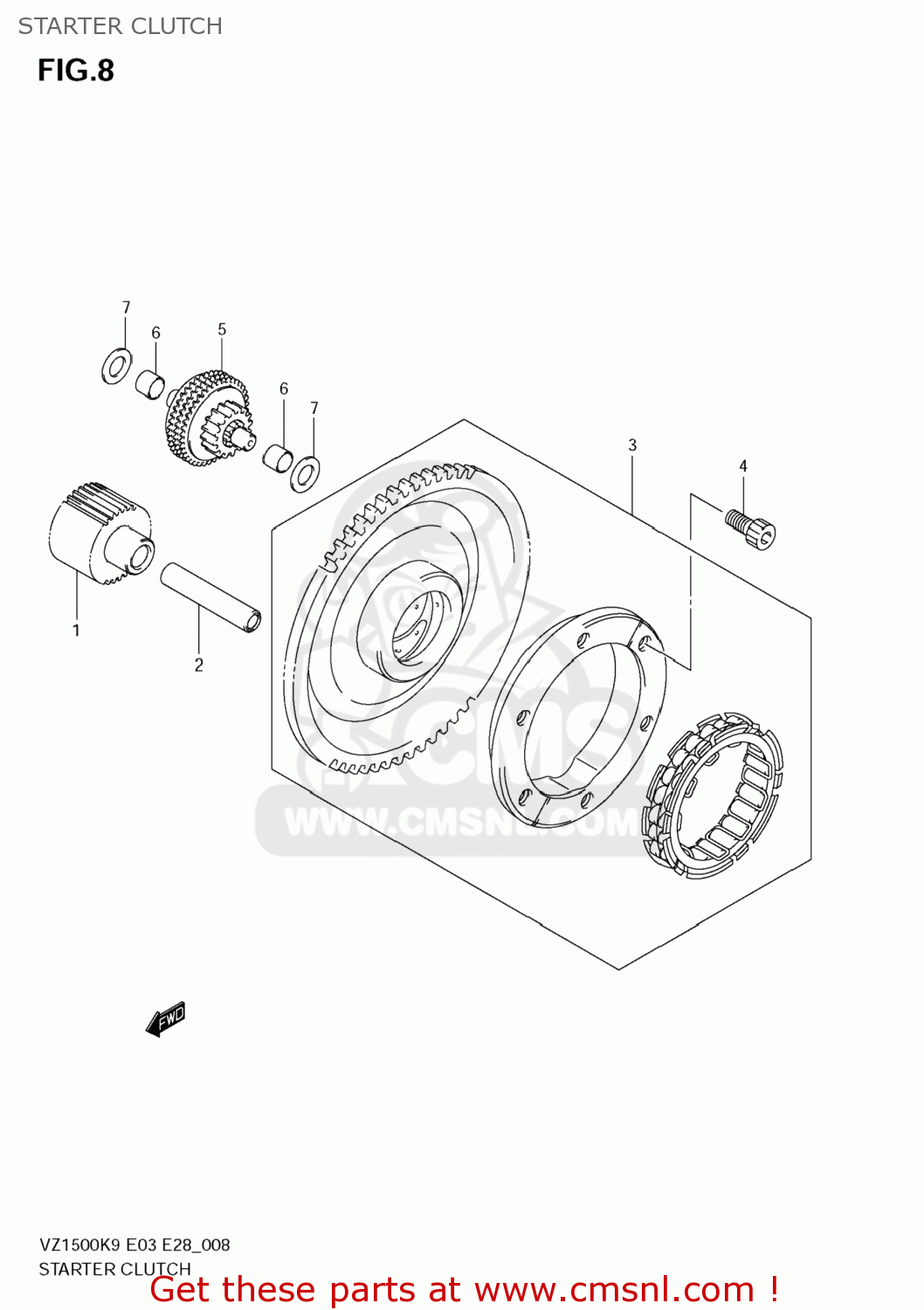

Starter clutch diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

STARTER CLUTCH VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

STARTER CLUTCH VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

1261110F00
ref: 1

GEAR,STARTER IDLE NO.1

€ 56.00

2

0920611015
ref: 2

PIN(7X11X55)

€ 9.00

3

1260040840
ref: 3

CLUTCH SET,STARTER(NT:78)

€ 292.50

4

0910608095
ref: 4

BOLT(8X16)

€ 2.50

5

1260024B01
ref: 5

LIMITER ASSY,START ID GR NO.2

€ 223.00

5

1260024B01
ref: 5

LIMITER ASSY,START ID GR NO.2

€ 223.00

6

1261831G00
ref: 6

BUSH,LIMITER GEAR SHAFT

€ 2.00

7

0918110195
ref: 7

SHIM(10X20X1)

€ 2.00
