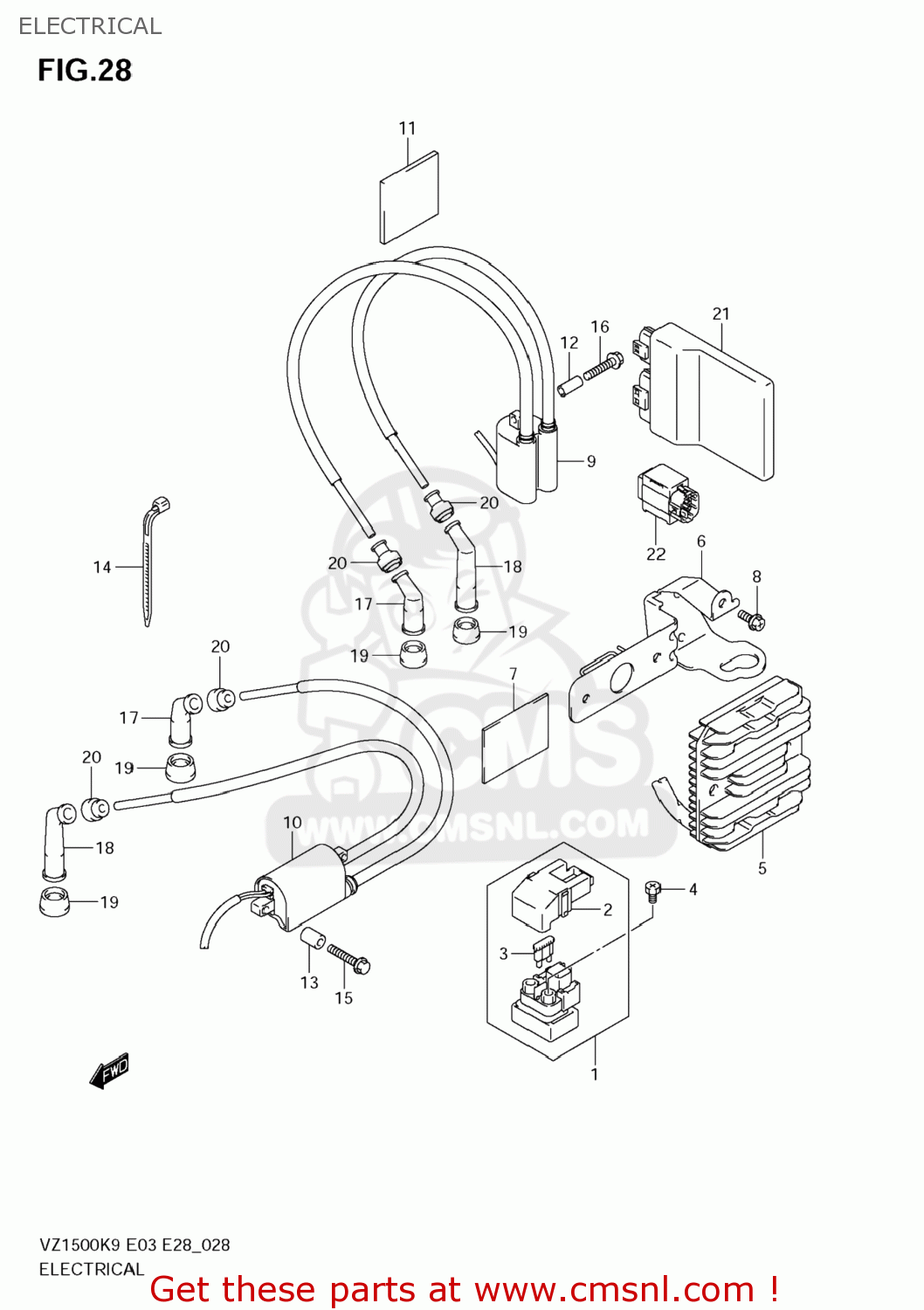

ELECTRICAL

ref

part #

description

quantity

1

3180006G00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 78.50

2

3186147E00
ref: 2

COVER

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280010G10
ref: 5

RECTIFIER ASSY

€ 336.50

6

3283040H00
ref: 6

BRACKET,RECT FTG

€ 23.00

7

3365207D00
ref: 7

PROTECTOR(80X80X2)

€ 4.50

8

021620616A
ref: 8
02162-0616B

SCREW

€ 1.50

9

3341040H00
ref: 9

COIL ASSY,IGNITION RR

€ 111.00

10

3342040H00
ref: 10

COIL ASSY,IGNITION FR

€ 131.50

11

3344241F00
ref: 11

CUSHION,HIGH TENSION CORD

€ 3.50

12

0918006178
ref: 12

SPACER(6.4X10X22)

€ 4.00

13

0918006198
ref: 13

SPACER(6.2X12X16)

€ 3.50

14

0940718402
ref: 14

CLAMP(L:165)

€ 2.50

15

015470635A
ref: 15

BOLT

€ 3.00

16

015470640A
ref: 16

BOLT

€ 2.50

17

3351038B00
ref: 17

CAP,SPARK PLUG

€ 21.50

18

3351045010
ref: 18

CAP ASSY,SPARK PLUG

€ 23.00

19

3354147D00
ref: 19

SEAL,SPARK PLUG

€ 7.00

20

3354238B00
ref: 20

SEAL,HIGH TENSION CORD

€ 4.50

21-1

3292040H10
ref: 21-1

CONTROL UNIT,FI

€ 886.00

21-2

3292040H20
ref: 21-2

CONTROL UNIT,FI

€ 886.00

22

3396006G10
ref: 22

SENSOR ASSY,FUEL CUT

€ 75.00

all assemblies
