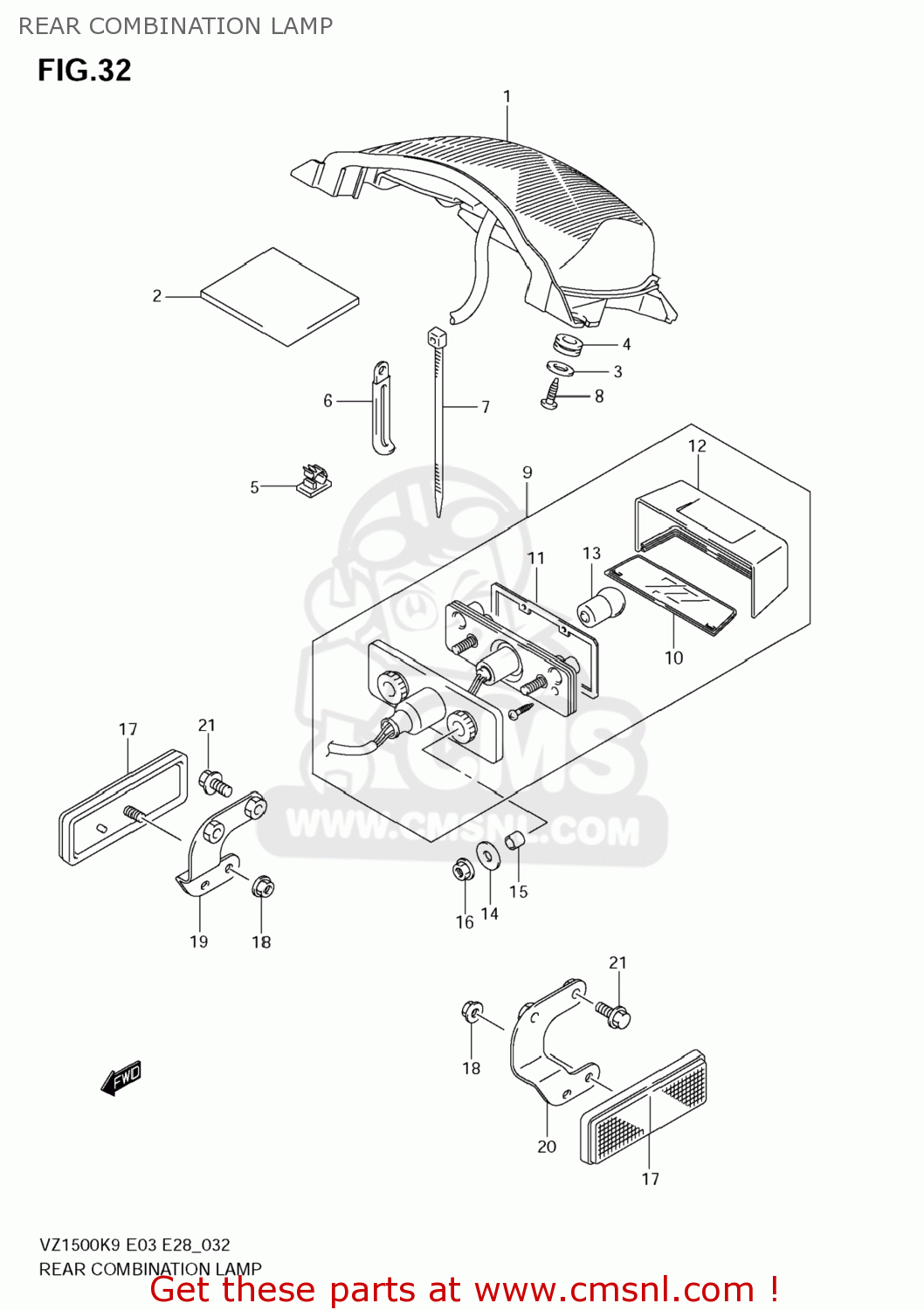

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571040H30
ref: 1
35710-40H00

LAMP ASSY,RR COMBINATION

€ 645.50

2

9221333G00
ref: 2

CUSHION,HELMET BOX

€ 4.50

3

0916005501
ref: 3

WASHER(5.5X20X1.2)

€ 2.00

4

0932010054
ref: 4

CUSHION

€ 2.00

5

0940307315
ref: 5

CLAMP

€ 3.50

6-1

0940406429
ref: 6-1

CLAMP(L:45)

€ 2.50

6-2

0940410204
ref: 6-2

CLAMP(L:62)

€ 3.50

7

0940714407
ref: 7

CLAMP(L:145)

€ 4.00

8

035410512A
ref: 8

SCREW

€ 2.00

9

3591041G00
ref: 9
35910-41G01

LAMP ASSY,LICE

€ 51.50

10

3591241G00
ref: 10

LENS LICENCE

€ 19.50

11

3591341G00
ref: 11

GASKET (NAS)

€ 19.00

12

3591741G00
ref: 12

COVER,LICENSE LAMP

€ 27.00

13

0947112140
ref: 13
09471-12058

BULB(12V5W,BF150-40160A)

€ 4.00

14

0916006077
ref: 14

WASHER(6.5X20X1.2)

€ 2.00

15

0918006261
ref: 15

SPACER(6.5X9X8)

€ 2.00

16

083161006A
ref: 16

NUT

€ 2.50

17

3597007F01
ref: 17

REFLECTOR ASSY,RR

€ 20.50

18

083161005A
ref: 18

NUT

€ 2.50

19

3597540H00
ref: 19

BRACKET,RR SIDE RR,R

€ 6.50

20

3597640H00
ref: 20

BRACKET,RR SIDE RR,L

€ 6.50

21

021620612A
ref: 21

SCREW

€ 2.50

all assemblies
