RADIATOR

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

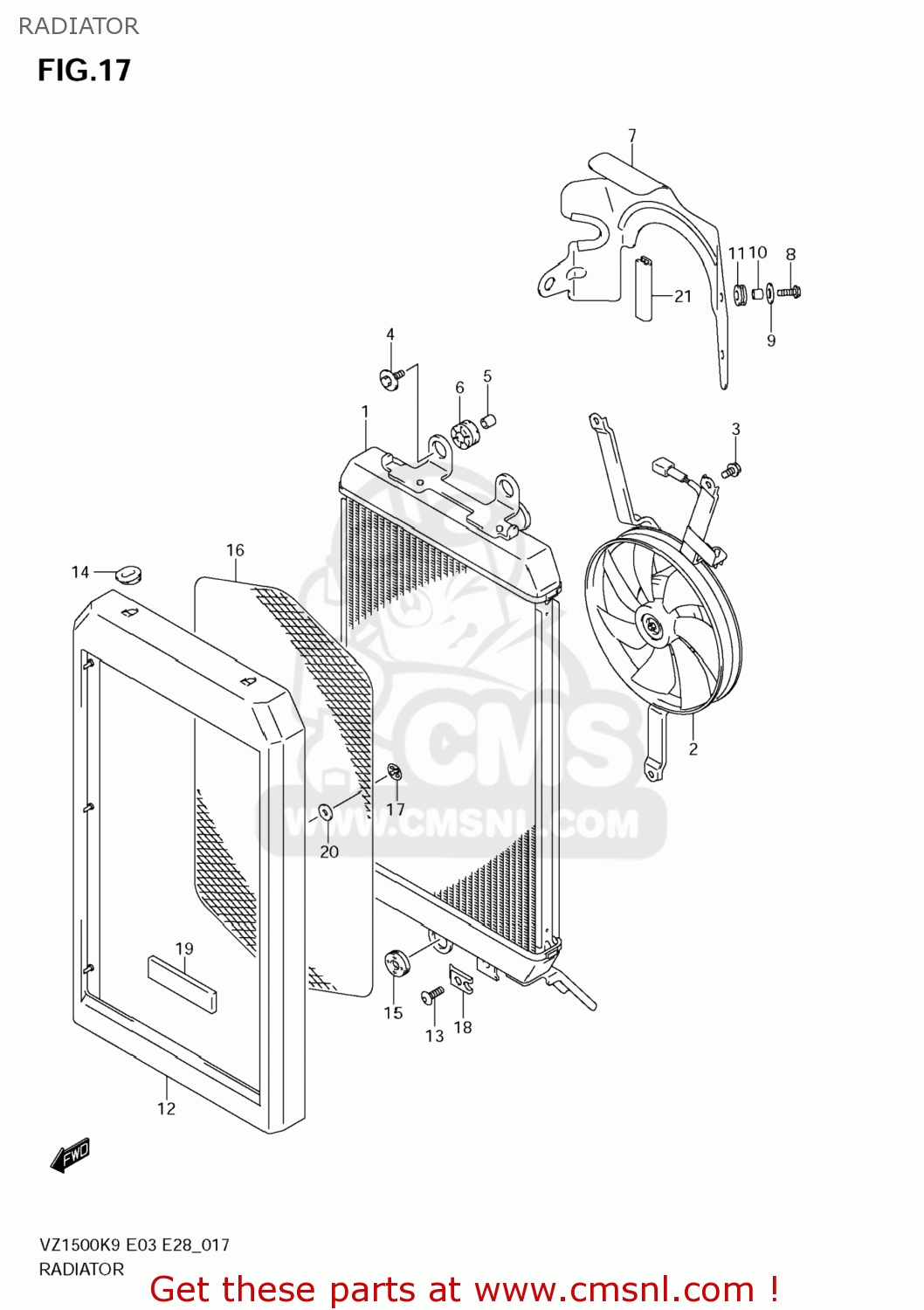

Radiator diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1771040H00
ref: 1

RADIATOR ASSY,

€ 911.50

1780040H00
ref: 2

FAN ASSY,RADIATOR

€ 718.00

1771140H00
ref: 3

BOLT

€ 5.50

0911806097
ref: 4

BOLT(6X25)

€ 2.50

0918006290
ref: 5

SPACER(6.5X10X12)

€ 2.50

0932010051
ref: 6

CUSHION

€ 3.50

1777140H00
ref: 7

SHIELD,RADIATO

€ 68.50

015470616B
ref: 8

BOLT

€ 2.50

0916006152
ref: 9

WASHER(6.5X20X1.2)

€ 1.50

0918006001
ref: 10

SPACER(6.2X8.3X5.7)

€ 2.00

0932008066
ref: 11

CUSHION

€ 7.50

1776040H00
ref: 12

COVER,RADIATOR

€ 48.00

0913906039
ref: 13

SCREW(6X16)

€ 2.50

0932003004
ref: 14

CUSHION

€ 2.00

0932008028
ref: 15

CUSHION

€ 2.50

1776540H00
ref: 16

NET,RADIATOR COVER

€ 77.00

0914803010
ref: 17

NUT

€ 3.00

0914806021
ref: 18

NUT

€ 3.00

9214143EU0
ref: 19

CUSHION,LEG SHIELD COVER

€ 3.00

0932004501
ref: 20

CUSHION

€ 3.00

1776218H00
ref: 21

MOLDING,RADIATOR COVER

€ 7.50
