AIR CLEANER
DL1000A VSTROM 2014 (L4) USA (E03)

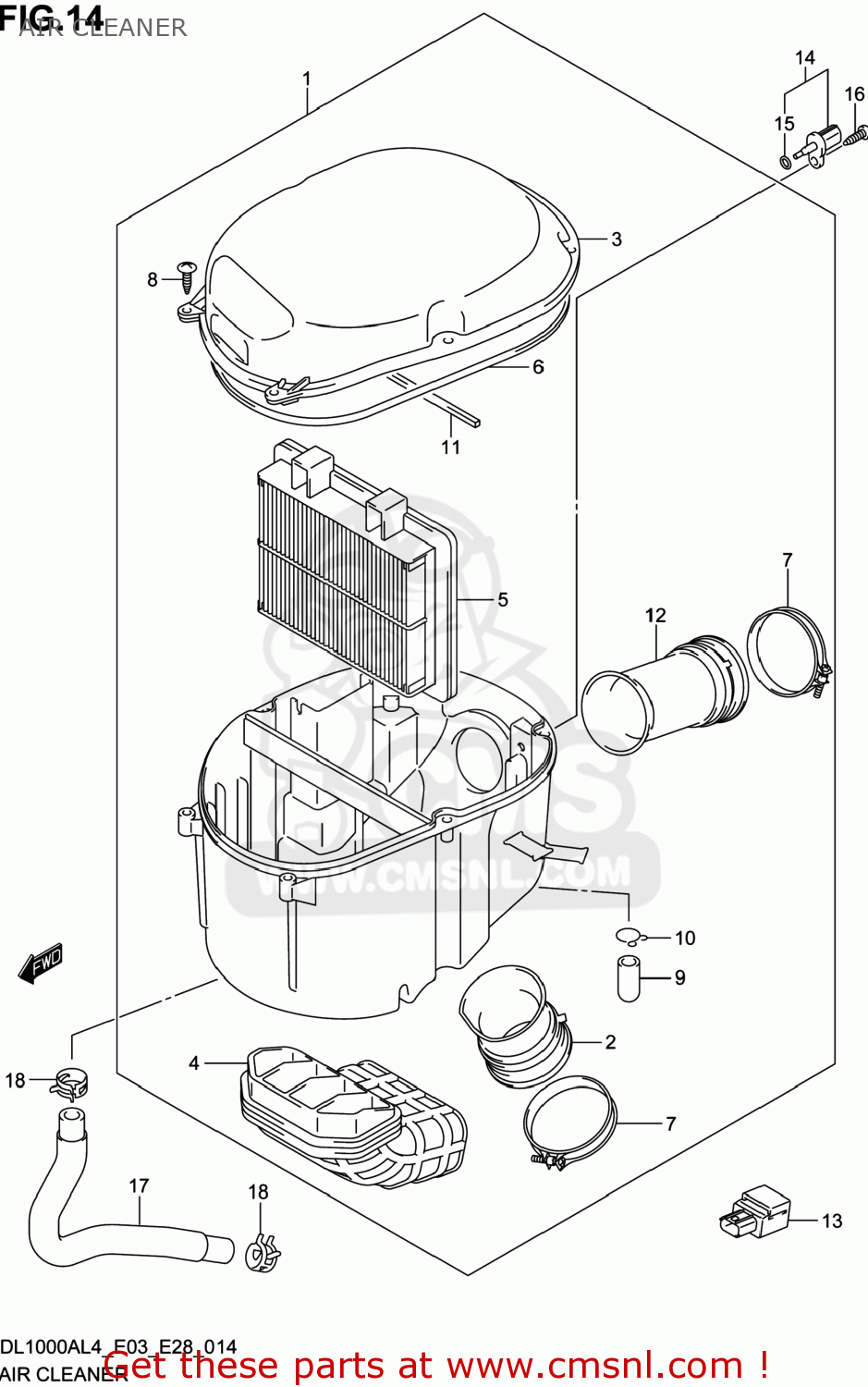

Air cleaner diagram DL1000A VSTROM 2014 (L4) USA (E03)
AIR CLEANER DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370031J00
ref: 1
CLEANER ASSY,AIR
€ 186.00
2
1388131J00
ref: 2
TUBE, OUTLET FR
€ 12.00
3
1374131J00
ref: 3
CAP, AIR CLEANER
€ 21.50
4
1389131J00
ref: 4
TUBE,INLET
€ 30.50
5
1378031J00
ref: 5
FILTER, AIR CLEANER
€ 36.00
6
1374631J00
ref: 6
GASKET (NAS)
€ 4.50
7
1382731J00
ref: 7
CLAMP,OUTLET TUBE
€ 10.00
8
035410520B
ref: 8
SCREW
€ 2.50
9
1387810G00
ref: 9
PLUG
€ 3.00
10
0940114301
ref: 10
CLIP
€ 2.00
11
1374631J10
ref: 11
GASKET (NAS)
€ 8.00
12
1388231J00
ref: 12
TUBE, OUTLET RR
€ 18.50
13
1859032G00
ref: 13
SENSOR,AIR PRESSURE
€ 259.00
14
1365041F10
ref: 14
SENSOR,AIR TEMP
€ 41.50
15
1365541F10
ref: 15
O RING
€ 7.00
16
035110516A
ref: 16
SCREW
€ 2.50
17
1385031J00
ref: 17
TUBE,BREATHER
€ 20.50
18
0940122405
ref: 18
CLIP
€ 3.00
