HEADLAMP

DL1000A VSTROM 2014 (L4) USA (E03)

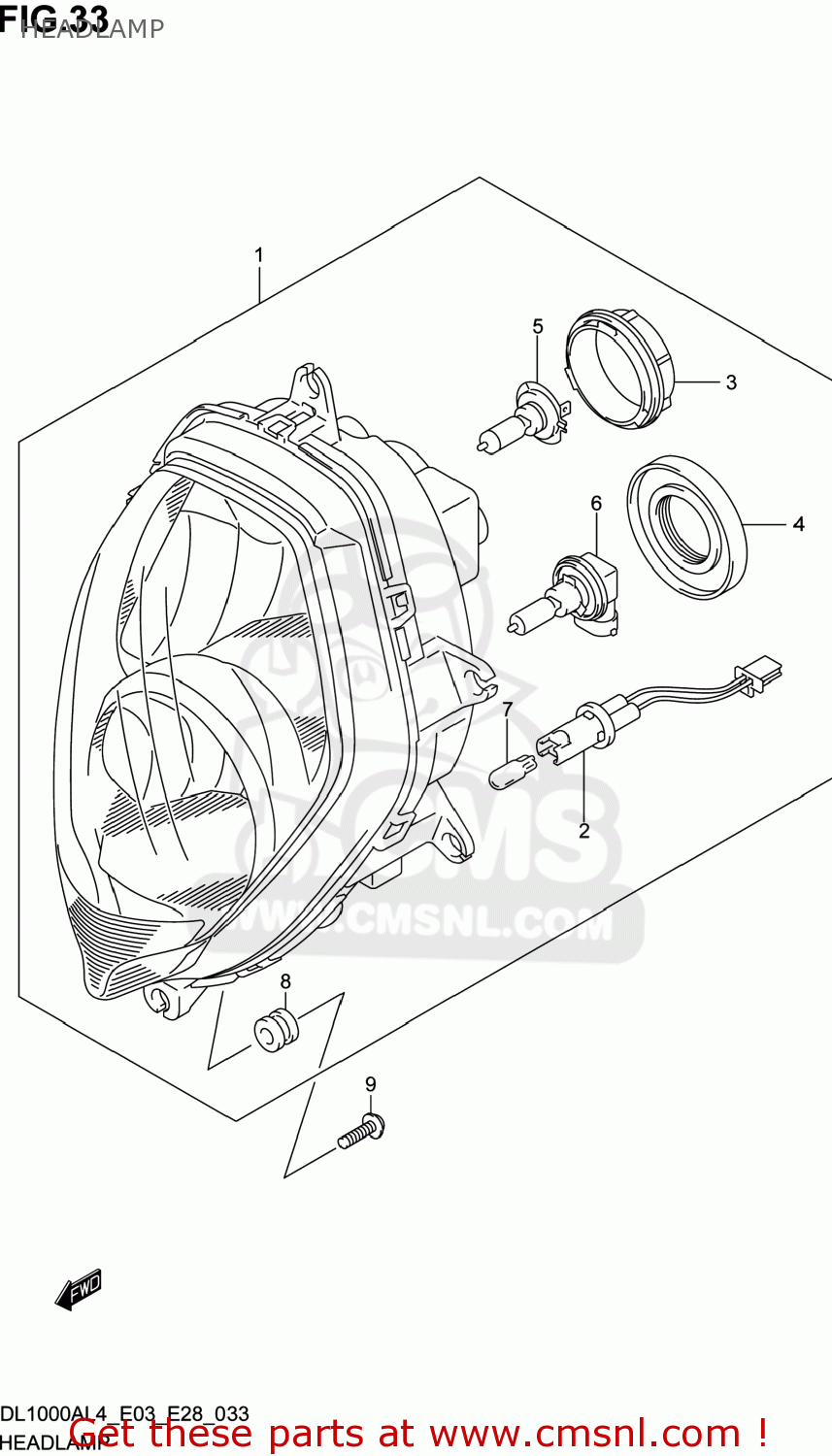

Headlamp diagram DL1000A VSTROM 2014 (L4) USA (E03)

HEADLAMP DL1000A VSTROM 2014 (L4) USA (E03)
HEADLAMP DL1000A VSTROM 2014 (L4) USA (E03)
HEADLAMP DL1000A VSTROM 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3510031J00
ref: 1
HEADLAMP ASSY
€ 361.50
2
3517131J00
ref: 2
CORD ASSY
3517131J00
€ 16.00
3
3517931J00
ref: 3
COVER
3517931J00
€ 15.00
4
3514231J00
ref: 4
SEAL COVER
€ 15.00
5
0947112188
ref: 5
BULB(12V55W/H7/PX26D/PHILIPS)
0947112188
€ 12.50
6
0947112222
ref: 6
BULB(12V65W,H9)
0947112222
€ 35.50
7
0947112216
ref: 7
BULB(12V5W)
0947112216
€ 5.00
8
0932007014
ref: 8
CUSHION
0932007014
€ 3.50
9
0913605062
ref: 9
SCREW(5X15)
0913605062
€ 2.50
