FOOTREST
DL1000A VSTROM 2014 (L4) USA (E03)

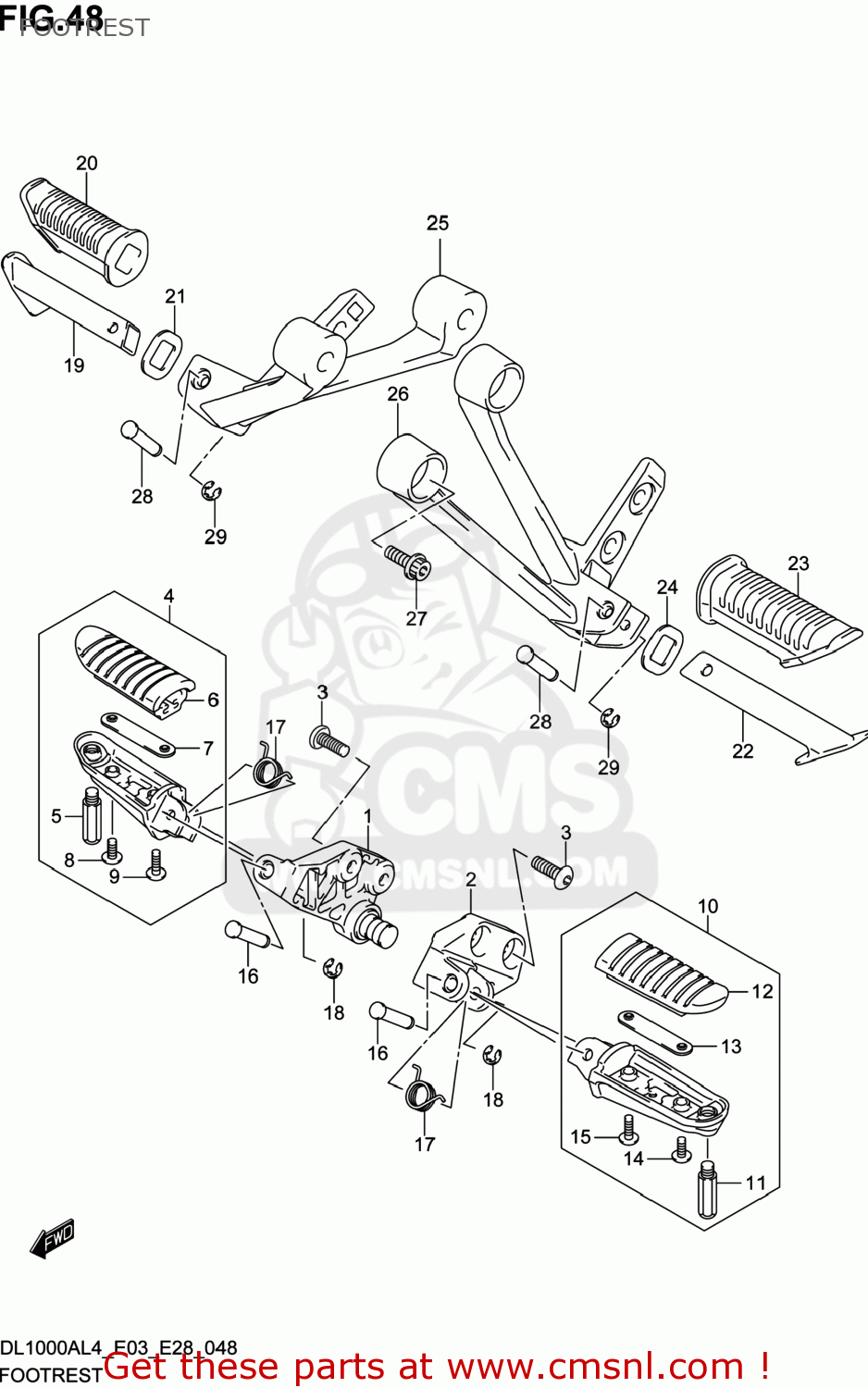

Footrest diagram DL1000A VSTROM 2014 (L4) USA (E03)
FOOTREST DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351006G01YAP
ref: 1
BRACKET,FR FOOTREST,R
€ 50.50
2
4352106G01YAP
ref: 2
BRACKET,FR FOOTREST,L
€ 44.50
3
0910608150
ref: 3
BOLT(8X23)
€ 3.50
4
4350131J00
ref: 4
FOOTREST ASSY,FRONT,R
€ 54.50
5
4357631J00
ref: 5
SENSOR,FOOTREST
€ 6.50
6
4355106G00
ref: 6
RUBBER,FOOTREST
€ 7.50
7
4355206G00
ref: 7
PLATE,FR FOOTREST RUBBER
€ 6.50
8
021420516A
ref: 8
SCREW
€ 2.00
9
021420520A
ref: 9
SCREW
€ 2.00
10
4350231J00
ref: 10
FOOTREST ASSY,FRONT,L
€ 54.50
11
4357631J00
ref: 11
SENSOR,FOOTREST
€ 6.50
12
4355106G00
ref: 12
RUBBER,FOOTREST
€ 7.50
13
4355206G00
ref: 13
PLATE,FR FOOTREST RUBBER
€ 6.50
14
021420516A
ref: 14
SCREW
€ 2.00
15
021420520A
ref: 15
SCREW
€ 2.00
16
0920808016
ref: 16
PIN
€ 4.00
17
0944818022
ref: 17
SPRING
€ 3.50
18
083321106A
ref: 18
E RING
€ 2.00
19
4361034A00
ref: 19
BAR,PILLION FOOTREST,R
€ 36.00
20
4361233G01
ref: 20
RUBBER,PILLION FOOTREST
€ 5.50
21
4363131J00
ref: 21
WASHER
€ 3.50
22
4371034A00
ref: 22
BAR,PILLION FOOTREST,L
€ 31.00
23
4361233G01
ref: 23
RUBBER,PILLION FOOTREST
€ 5.50
24
4363134A01
ref: 24
WASHER,FOOTREST RUBBER
€ 6.50
25
4381131J00YD8
ref: 25
BRACKET,PILLION FOOTREST,R
€ 112.00
26
4382131J00YD8
ref: 26
BRACKET,PILLION FOOTREST,L
€ 92.50
27
0910608193
ref: 27
BOLT(8X30)
€ 2.00
28
0920806007
ref: 28
PIN
€ 3.00
29
083321104A
ref: 29
E RING
€ 2.00
