Buy Suzuki DL Parts Online


REAR FENDER

DL1000A VSTROM 2014 (L4) USA (E03)

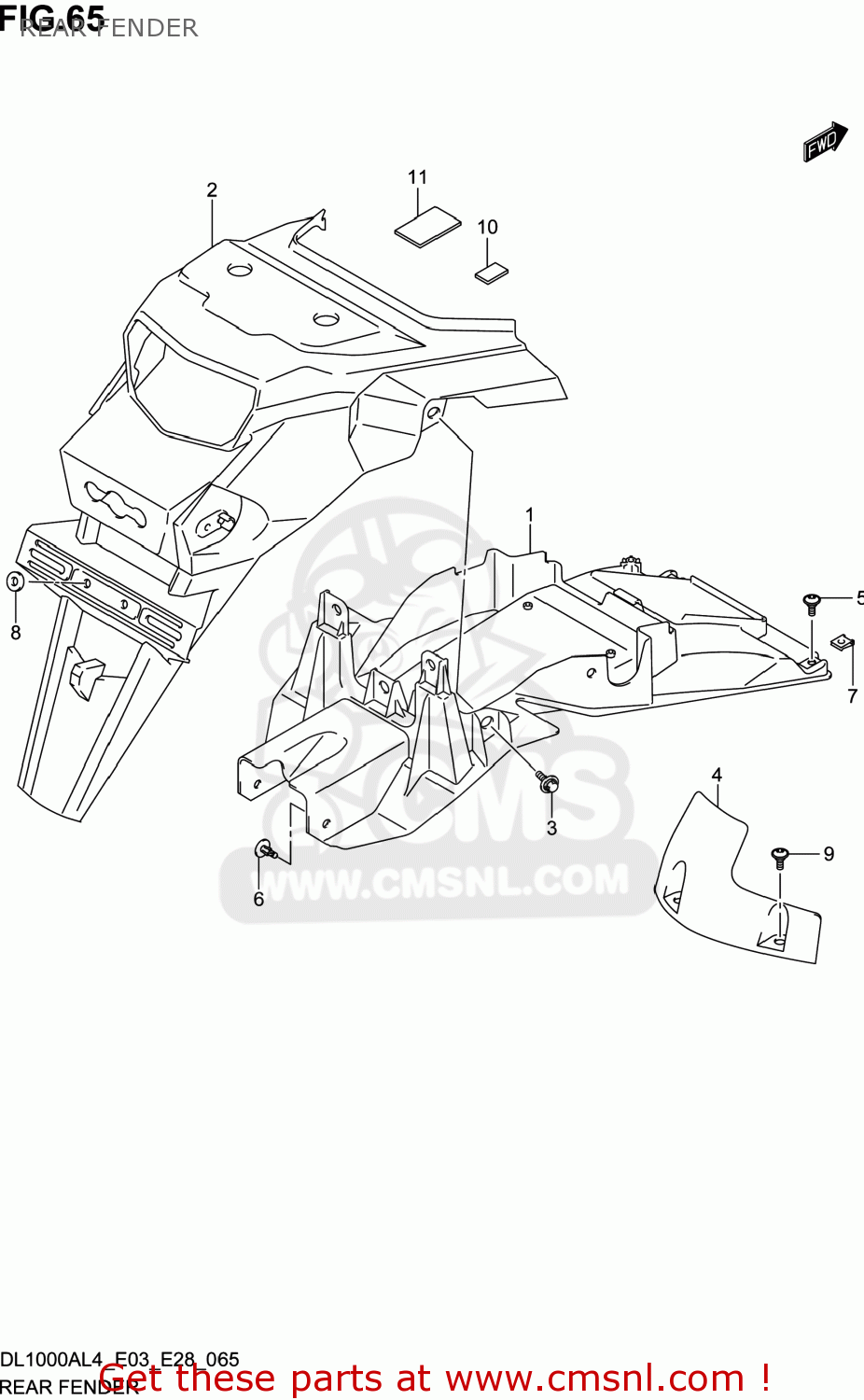

Rear fender diagram DL1000A VSTROM 2014 (L4) USA (E03)

REAR FENDER DL1000A VSTROM 2014 (L4) USA (E03)
REAR FENDER DL1000A VSTROM 2014 (L4) USA (E03)
REAR FENDER DL1000A VSTROM 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6311131J00291
ref: 1
FENDER,RR FR
€ 80.00
2
6311231J00291
ref: 2
FENDER,REAR REAR
6311231J00291
€ 66.50
3
0911606165
ref: 3
BOLT(6X16)
0911606165
€ 2.50
4
6341131J00
ref: 4
MUDGUARD,REAR FENDER
6341131J00
€ 8.50
5
0913905074
ref: 5
BOLT(5X13)
0913905074
€ 3.00
6
9447935F00
ref: 6
CLIP
9447935F00
€ 3.50
7
0914805052
ref: 7
NUT
0914805052
€ 3.50
8
083220106B
ref: 8
WASHER
083220106B
€ 2.00
9
4791231J00
ref: 9
SCREW
4791231J00
€ 2.50
10
3397231D00
ref: 10
33652-19B00
CUSHION
€ 4.50
11
1589665J00
ref: 11
DAMPER,CLAMP
€ 2.50
