SIDE CASE SET (OPTIONAL)

DL1000A VSTROM 2014 (L4) USA (E03)

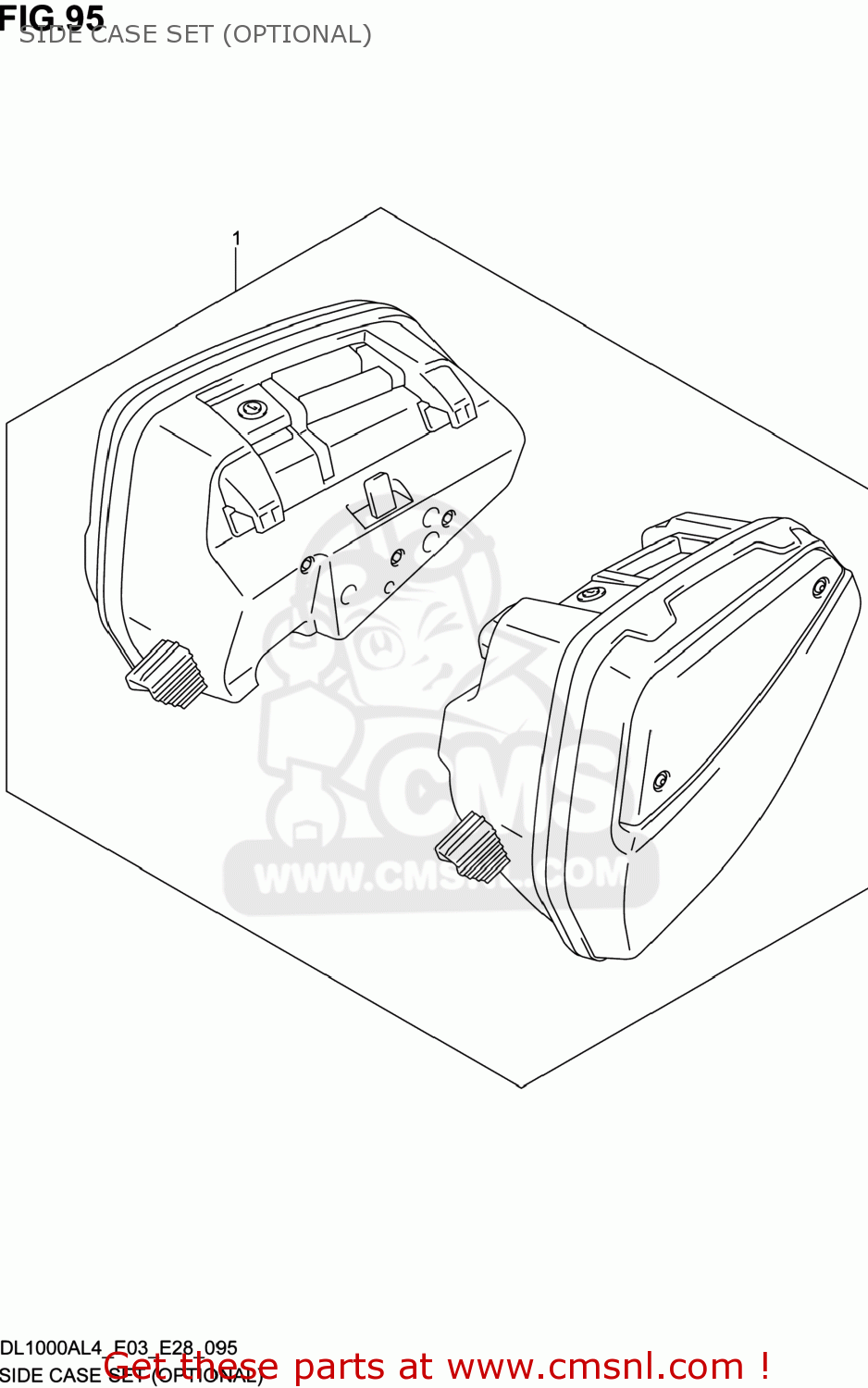

Side case set (optional) diagram DL1000A VSTROM 2014 (L4) USA (E03)

SIDE CASE SET (OPTIONAL) DL1000A VSTROM 2014 (L4) USA (E03)

SIDE CASE SET (OPTIONAL) DL1000A VSTROM 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

9310031810
ref: 1

CASE SET, SIDE

€ 1,103.50

all assemblies
