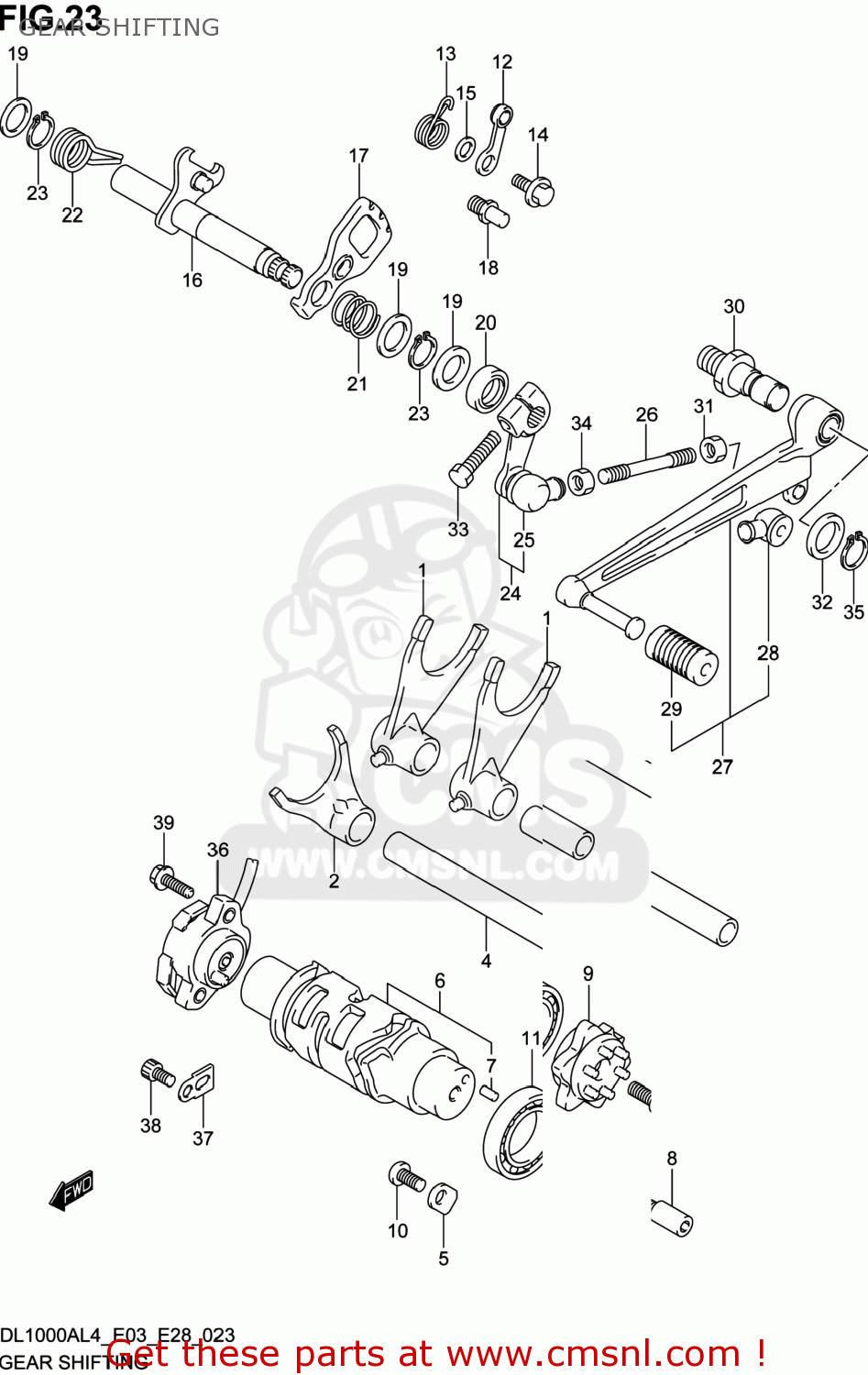

GEAR SHIFTING

ref

part #

description

quantity

1

2521117E01
ref: 1

FORK,GEAR SHIFT

€ 64.50

2

2523135F00
ref: 2

FORK,GEAR SHIFT NO.3

€ 108.50

3

2541102F20
ref: 3

SHAFT,GEAR SHIFT FORK

€ 16.00

4

2541102F20
ref: 4

SHAFT,GEAR SHIFT FORK

€ 16.00

5

2474121A00
ref: 5

RETAINER

€ 2.00

6

2531031J00
ref: 6

CAM,GEAR SHIFT

€ 134.00

7

0422104089
ref: 7

PIN

€ 1.50

8

2531212C00
ref: 8

PIN,SHIFT CAM DRIVEN GEAR

€ 6.00

9

2538113E30
ref: 9

PLATE,GEAR SHIFT CAM

€ 30.00

10

0912506122
ref: 10

SCREW(6X12)

€ 1.50

11

0811369050
ref: 11

BEARING

€ 36.00

12

2535006G00
ref: 12

STOPPER,SHIFT CAM

€ 19.00

13

2535538F00
ref: 13

SPRING,GEAR SHIFT CAM STOPPER

€ 3.00

14

0911106041
ref: 14

BOLT(6X14.3)

€ 3.00

15

0821106141
ref: 15

WASHER

€ 2.50

16

2551006G10
ref: 16

SHAFT,GEAR SHIFT

€ 70.00

17

2551206G10
ref: 17

PLATE,GEAR SHIFT CAM DRIVE

€ 20.00

18

2567101011
ref: 18

STOPPER,GEAR SHIFT ARM

€ 3.00

19

0918114167
ref: 19

SHIM(14X22X1)

€ 3.50

20

0928314005
ref: 20

SEAL,OIL(14X22X7.3)

€ 6.50

21

0944017009
ref: 21

SPRING

€ 1.50

22

0944420001
ref: 22

SPRING

€ 5.00

23

083313114A
ref: 23

CIRCLIP

€ 2.00

24

2552016G00
ref: 24

ARM,GEAR SHIFT LINK

€ 46.50

25

2552647000
ref: 25

COVER,DUST

€ 3.50

26

2552511C00
ref: 26

ROD,GEAR SHIFT LINK

€ 6.00

27

2560031J00
ref: 27

LEVER ASSY,GEAR SHIFT

€ 68.00

28

2552647000
ref: 28

COVER,DUST

€ 3.50

29

2565220C00
ref: 29

RUBBER,GEAR SHIFT PEDAL

€ 8.00

30

2561703F10
ref: 30

SHAFT,GEAR SHIFT LEVER

€ 10.50

31

0914006025
ref: 31

NUT

€ 2.00

32

0916012011
ref: 32

WASHER(12.5X20X1)

€ 1.50

33

015470625A
ref: 33

BOLT

€ 2.50

34

083100006A
ref: 34

NUT

€ 2.00

35

083313112A
ref: 35

CIRCLIP

€ 2.00

36

3773031J00
ref: 36

SENSOR ASSY,GEAR POSITION

€ 121.50

37

3149745000
ref: 37

CLAMP,GENERATOR LEAD WIRE

€ 1.50

38

071300510A
ref: 38

BOLT

€ 1.50

39

0910605023
ref: 39

BOLT(5X16)

€ 2.50
