OIL PUMP
DL1000A VSTROM 2014 (L4) USA (E03)

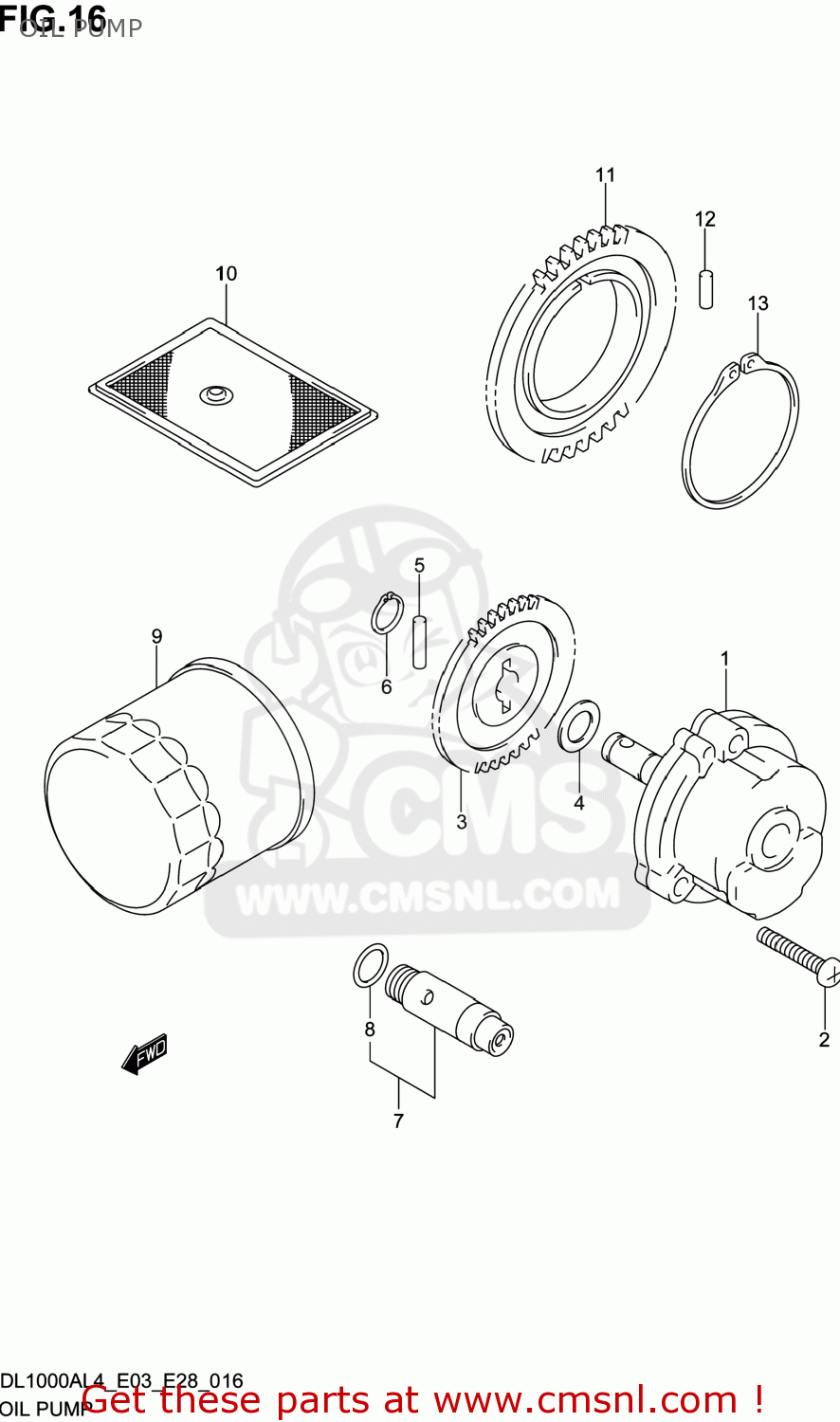

Oil pump diagram DL1000A VSTROM 2014 (L4) USA (E03)
OIL PUMP DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640002FB0
ref: 1
PUMP ASSY,ENGINE OIL
€ 135.50
2
071300625A
ref: 2
BOLT
€ 2.50
3
1633102F00
ref: 3
GEAR,OIL PUMP DRIVEN
€ 35.50
4
0918110158
ref: 4
SHIM(10X18X0.5)
€ 2.50
5
0926104009
ref: 5
PIN(4X15.8)
€ 1.50
6
0833131109
ref: 6
CIRCLIP
€ 2.00
7
1644024F00
ref: 7
VALVE ASSY,OIL RELIEF(7K)
€ 41.50
8
0928013004
ref: 8
O RING(D:1.9,ID:13)
€ 2.50
9
1651007J00
ref: 9
FILTER ASSY,ENGINE OIL
€ 12.50
10
1652032E00
ref: 10
STRAINER,ENGINE OIL
€ 11.50
11
1632102F00
ref: 11
GEAR,ENG OIL PUMP DRIVE
€ 39.00
12
0926106002
ref: 12
PIN(6X6)
€ 1.50
13
0833131509
ref: 13
CIRCLIP
€ 4.50
