SEAT
DL1000A VSTROM 2014 (L4) USA (E03)

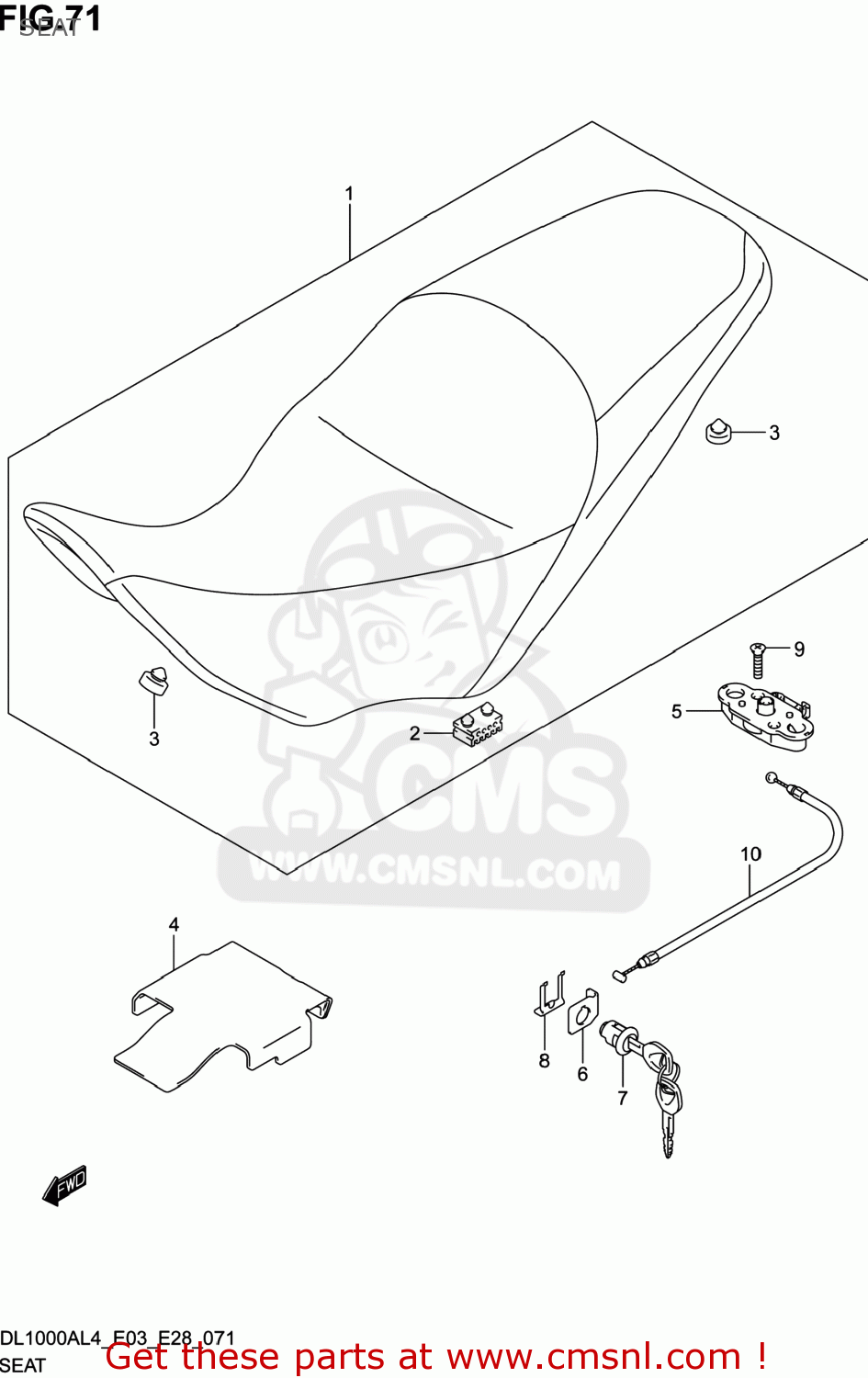

Seat diagram DL1000A VSTROM 2014 (L4) USA (E03)
SEAT DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510031J00AR8
ref: 1-1
SEAT ASSY
€ 225.50
1-2
4510031J00AT3
ref: 1-2
SEAT ASSY
€ 167.00
2
4514931300
ref: 2
CUSHION,SEAT(40X20X15)
€ 2.00
3
0932110012
ref: 3
CUSHION
€ 3.00
4
4525631J00
ref: 4
SHEET,HEAT SHIELD RUBBER
€ 13.50
5
4522047H00
ref: 5
BRACKET,SEAT SUPPORT
€ 79.50
6
4528814F00
ref: 6
GUIDE,SEAT LOCK CABLE
€ 3.00
7
9570014F00
ref: 7
LOCK SET,SEAT
€ 75.50
8
4528911F00
ref: 8
PLATE,SEAT LOCK ASSY
€ 3.00
9
021220630A
ref: 9
SCREW
€ 1.50
10
4528031J00
ref: 10
CABLE,SEAT LOCK
€ 15.00
