STARTING MOTOR
DL1000A VSTROM 2014 (L4) USA (E03)

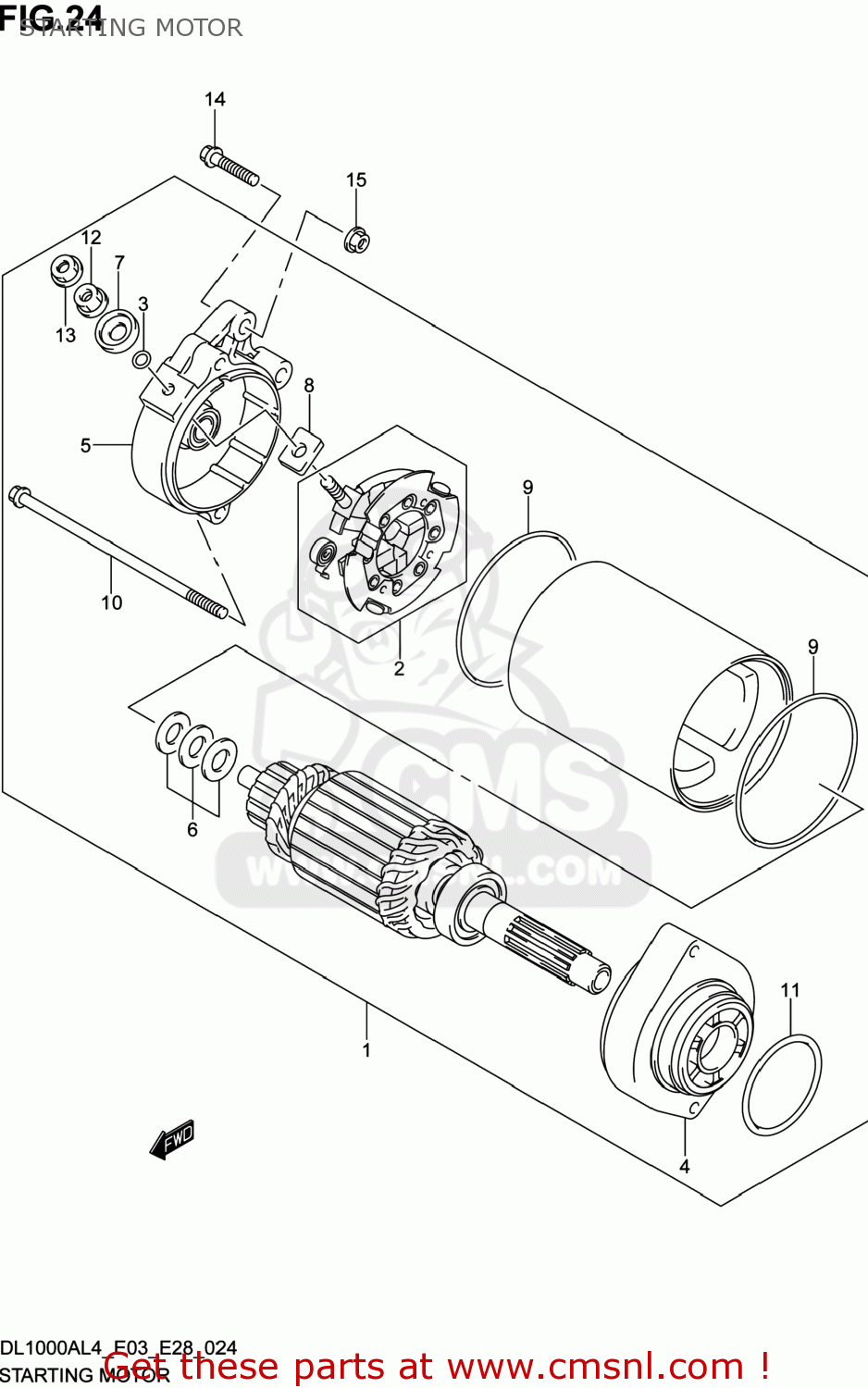

Starting motor diagram DL1000A VSTROM 2014 (L4) USA (E03)
STARTING MOTOR DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3110006G01
ref: 1
MOTOR ASSY,STARTING
€ 763.00
2
3113245C00
ref: 2
HOLDER SET,BRUSH
€ 46.00
3
3114338300
ref: 3
O RING
€ 3.50
4
3115044B10
ref: 4
HOUSING ASSY
€ 98.50
5
3117002F10
ref: 5
FRAME ASSY
€ 91.50
6
3117043400
ref: 6
SHIM SET,STARTING MOTOR
€ 3.50
7
3117238300
ref: 7
BUSHING
€ 4.00
8
3117388C00
ref: 8
BUSHING
€ 6.00
9
3126444110
ref: 9
O RING
€ 8.00
10
3128124B10
ref: 10
BOLT
€ 5.00
11
3115648B00
ref: 11
O RING
€ 8.50
12
0831000067
ref: 12
NUT
€ 2.50
13
083613506A
ref: 13
NUT
€ 2.00
14
015470625A
ref: 14
BOLT
€ 2.50
15
083613506A
ref: 15
NUT
€ 2.00
