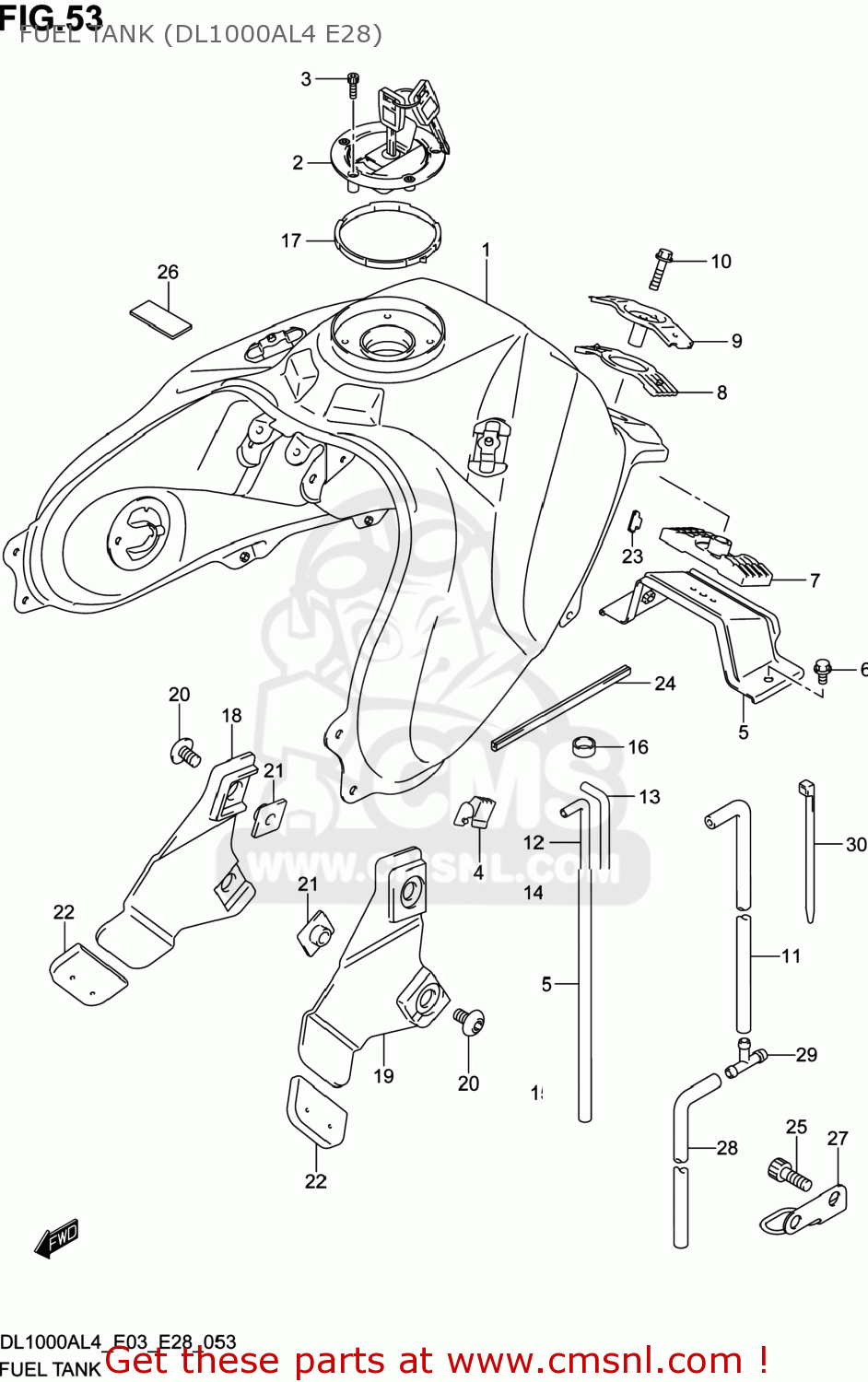

FUEL TANK (DL1000AL4 E28)

ref

part #

description

quantity

1-1

4410031J00YVB
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 730.00

1-2

4410031J00YWW
ref: 1-2

TANK ASSY,FUEL(WHITE)

€ 802.00

1-3

4410031J00YYG
ref: 1-3

TANK ASSY,FUEL(RED)

€ 730.00

1-4

4410031J00PRU
ref: 1-4

TANK ASSY,FUEL(KHAKI)

€ 604.50

2

4420017810
ref: 2

CAP SET,FUEL TANK

€ 258.50

3

4424411J00
ref: 3

BOLT,FUEL TANK FILLER CAP

€ 3.00

4

4454131J00
ref: 4

CUSHION,FUEL TANK SIDE

€ 9.00

5

4455031J00
ref: 5

BRACKET,FUEL TANK REAR

€ 11.50

6

015500816A
ref: 6

BOLT

€ 2.50

7

4454506G00
ref: 7

CUSHION,FUEL TANK RR LWR

€ 11.50

8

4454206G00
ref: 8

CUSHION,FUEL TANK RR UPR

€ 10.50

9

4453006G00
ref: 9

BRACKET,FUEL TANK RR UP

€ 12.00

10

015500835A
ref: 10

BOLT

€ 3.50

11

4442331J00
ref: 11

HOSE,FUEL TANK WATER DRAIN

€ 13.50

12

4442431J00
ref: 12

HOSE,FUEL TANK BRTHR NO.1

€ 4.50

13

4442415H10
ref: 13

HOSE,TANK BREATHER NO.2

€ 9.50

14

0936706007
ref: 14

3 WAY

€ 2.50

15

4442431J10
ref: 15

HOSE,FUEL TANK BRTHR NO.2

€ 7.50

16

0935212163600
ref: 16

HOSE(12X16X600)

€ 24.50

17

6824131J00
ref: 17

MOLDING,FUEL TANK COVER

€ 4.50

18

4417931J00
ref: 18

BRACKET,FUEL TANK COVER SIDE,R

€ 7.00

18

4417931J00
ref: 18

BRACKET,FUEL TANK COVER SIDE,R

€ 7.00

19

4418931J00
ref: 19

BRACKET,FUEL TANK COVER SIDE,L

€ 7.00

19

4418931J00
ref: 19

BRACKET,FUEL TANK COVER SIDE,L

€ 7.00

20

0913906181
ref: 20

SCREW(6X10)

€ 3.00

21

4452347H00
ref: 21

NUT(M6)

€ 5.50

22

4454231J00
ref: 22

CUSHION,FUEL TANK COVER BRKT

€ 3.00

23

4427621H00
ref: 23

CUSHION,FUEL TANK COVER

€ 6.00

24

4455224B00
ref: 24

MOLDING,FUEL TANK RR

€ 3.50

25

071301016B
ref: 25

BOLT

€ 2.00

26

4454431J00
ref: 26

CUSHION,FUEL TANK

€ 3.50

27

4448031J00
ref: 27

GUIDE,DRAIN HOSE

€ 7.50

28

4442331J10
ref: 28

HOSE,FUEL TANK DRAIN NO.2

€ 11.00

29

0936708005
ref: 29

3 WAY

€ 4.00

30

0940714407
ref: 30

CLAMP(L:145)

€ 4.00
