LOCK SET (DL1000AL4 E03)

DL1000A VSTROM 2014 (L4) USA (E03)

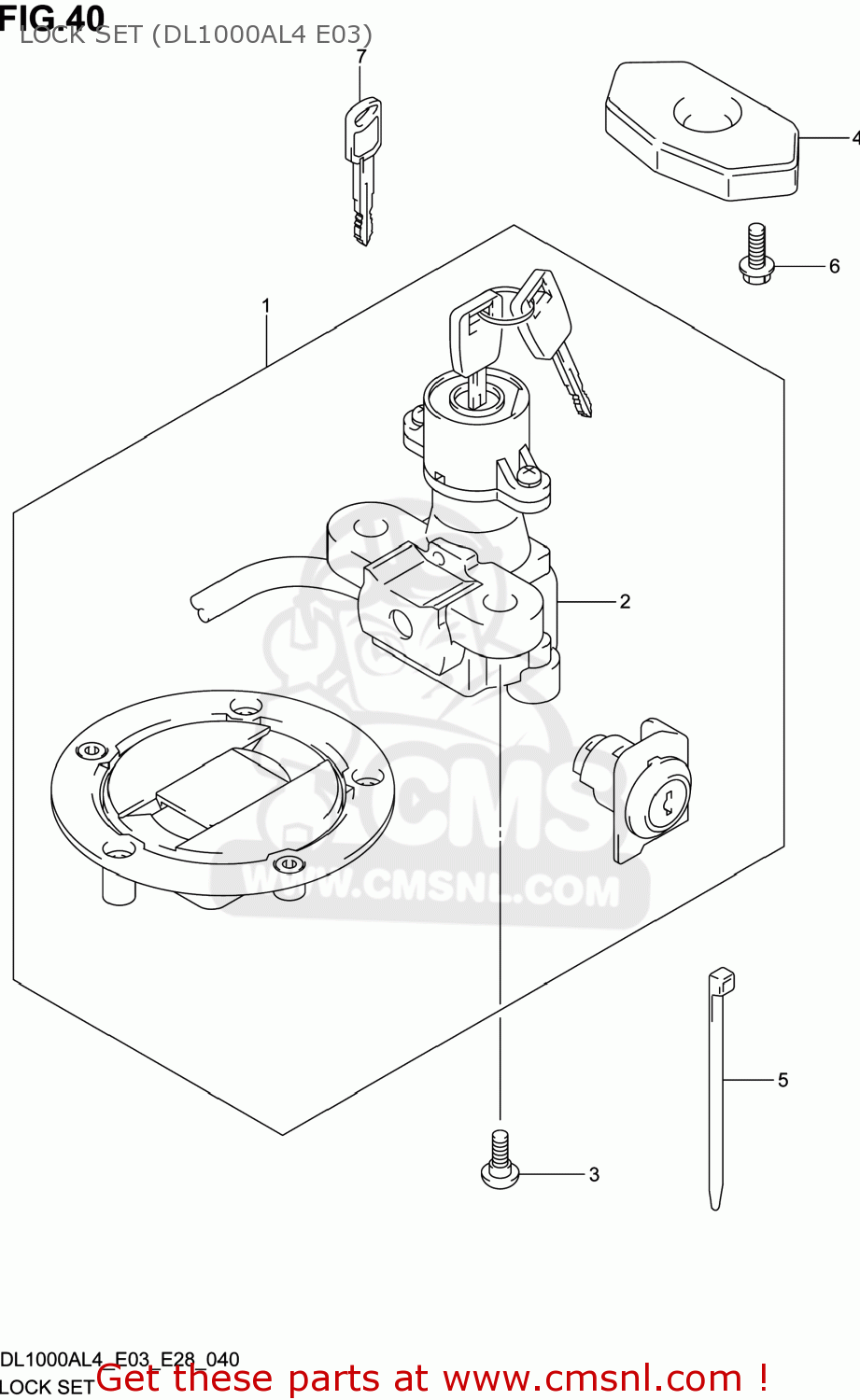

Lock set (dl1000al4 e03) diagram DL1000A VSTROM 2014 (L4) USA (E03)

LOCK SET (DL1000AL4 E03) DL1000A VSTROM 2014 (L4) USA (E03)
LOCK SET (DL1000AL4 E03) DL1000A VSTROM 2014 (L4) USA (E03)
LOCK SET (DL1000AL4 E03) DL1000A VSTROM 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3700031860
ref: 1
LOCK SET
€ 336.00
2
3710031J10
ref: 2
LOCK ASSY,STEERING
€ 165.50
3
0913908016
ref: 3
BOLT(8X20)
0913908016
€ 3.50
4
3718015H00
ref: 4
COVER,STEERING LOCK
3718015H00
€ 28.00
5
0940714407
ref: 5
CLAMP(L:145)
0940714407
€ 4.00
6
015470512B
ref: 6
BOLT
015470512B
€ 2.00
7
3714611J00
ref: 7
KEY,BLANK
€ 88.50
