RADIATOR HOSE
DL1000A VSTROM 2014 (L4) USA (E03)

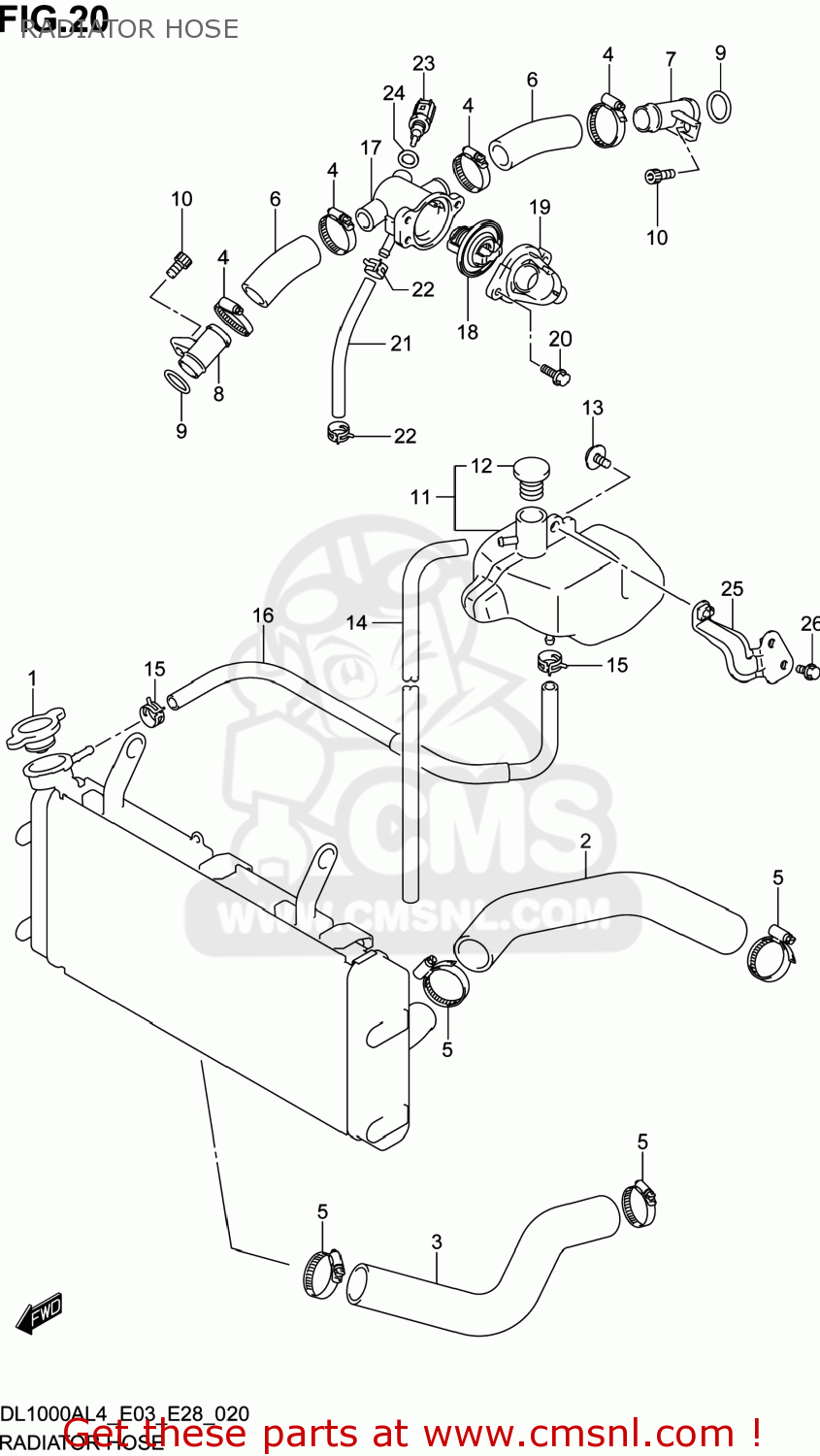

Radiator hose diagram DL1000A VSTROM 2014 (L4) USA (E03)
RADIATOR HOSE DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1773014G00
ref: 1
CAP,RADIATOR(1.1)
€ 36.00
2
1785131J00
ref: 2
HOSE,RADIATOR INLET
€ 16.50
3
1785231J00
ref: 3
HOSE,RADIATOR OUTLET
€ 15.00
4
0940228513
ref: 4
CLAMP
€ 6.50
5
0940235501
ref: 5
CLAMP
€ 7.00
6
1785302F10
ref: 6
HOSE,CONNECTOR INLET
€ 5.50
7
1789006G20
ref: 7
UNION,CONNECTOR HOSE
€ 9.50
8
1789006G20
ref: 8
UNION,CONNECTOR HOSE
€ 9.50
9
0928018008
ref: 9
09280-18009
O RING(D:3.2,ID:17.8)
€ 8.00
10
071300612A
ref: 10
BOLT
€ 2.50
11
1791031J00
ref: 11
TANK ASSY,RESERVOIR
€ 32.00
12
1793131J00
ref: 12
CAP,WATER RESERVOIR TANK
€ 3.50
13
0911106085
ref: 13
BOLT(6X12)
€ 4.50
14
1798231J00
ref: 14
HOSE,RSVR TANK OVFL
€ 5.00
15
0940108411
ref: 15
CLIP
€ 3.00
16
1798131J00
ref: 16
HOSE,RSVR TANK INLET
€ 11.00
17
1766202F11
ref: 17
CONNECTOR,THERMOSTAT INLET
€ 40.00
18
1767006G50
ref: 18
THERMOSTAT,WATER
€ 24.50
19
1766342E00
ref: 19
CAP,THERMOSTAT CONNECTOR
€ 34.00
20
015500616A
ref: 20
BOLT
€ 2.50
21
1785616G10
ref: 21
HOSE,WATER BYPASS
€ 14.50
22
0940112409
ref: 22
CLAMP
€ 3.00
23
1365049X00
ref: 23
SENSOR,TEMP
€ 73.00
24
0916812017
ref: 24
GASKET(12X17X1) (NAS)
€ 2.00
25
1792031J00
ref: 25
BRACKET,RSVR TANK
€ 7.00
26
015500610A
ref: 26
BOLT
€ 2.00
