CRANKCASE COVER
DL1000A VSTROM 2014 (L4) USA (E03)

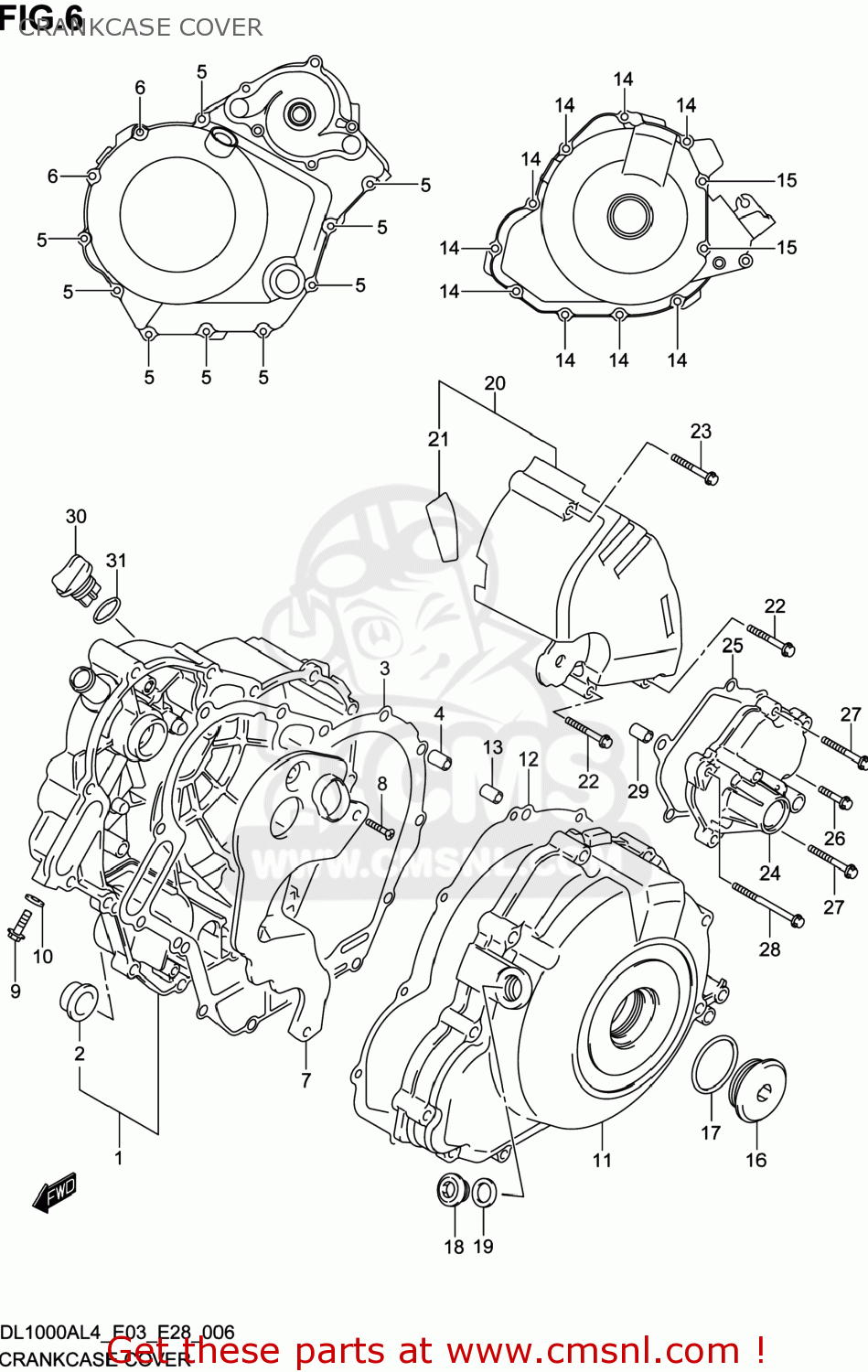

Crankcase cover diagram DL1000A VSTROM 2014 (L4) USA (E03)
CRANKCASE COVER DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134006G30
ref: 1
COVER,CLUTCH
€ 0.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148206G10
ref: 3
GASKET,CLUTCH COVER (NAS)
€ 19.50
4
0421109149
ref: 4
PIN
€ 2.00
5
0910306213
ref: 5
BOLT(6X30)
€ 2.50
6
0910306257
ref: 6
BOLT(6X75)
€ 4.00
7
1134206G00
ref: 7
SEPARATOR,OIL
€ 36.50
8
021120612A
ref: 8
SCREW
€ 1.50
9
015500610B
ref: 9
BOLT
€ 2.50
10
0916806026
ref: 10
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
11
1135131J00
ref: 11
COVER,MAGNETO
€ 228.00
12
1148302F10
ref: 12
GASKET,MAGNETO COVER (NAS)
€ 17.50
13
0421109149
ref: 13
PIN
€ 2.00
14
0910306214
ref: 14
BOLT(6X35)
€ 2.50
15
0910306263
ref: 15
BOLT(6X80)
€ 2.50
16
0925936026
ref: 16
PLUG
€ 10.00
17
0928033004
ref: 17
O RING(D:3.1,ID:32.7)
€ 2.50
18
0924814012
ref: 18
PLUG,14X12
€ 5.00
19
0916814002
ref: 19
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
20
1136031J00
ref: 20
COVER,ENG SPROCKET
€ 24.50
21
1136231J00
ref: 21
SHEET,SPROCKET COVER
€ 5.50
22
0910306214
ref: 22
BOLT(6X35)
€ 2.50
23
0910306261
ref: 23
BOLT(6X60)
€ 2.50
24
1138106G00
ref: 24
COVER,GEAR SHIFT
€ 47.00
25
1148502F10
ref: 25
GASKET,GEAR SHIFT COVER (NAS)
€ 4.00
26
0910306314
ref: 26
BOLT(6X105)
€ 2.00
27
015470625A
ref: 27
BOLT
€ 2.50
28
015470635A
ref: 28
BOLT
€ 3.00
29
0421109149
ref: 29
PIN
€ 2.00
30
1197125D00
ref: 30
PLUG,ENGINE OIL FILLER
€ 5.50
31
0928017003
ref: 31
O RING(D:3.1,ID:16.8)
€ 2.00
