CLUTCH MASTER CYLINDER
DL1000A VSTROM 2014 (L4) USA (E03)

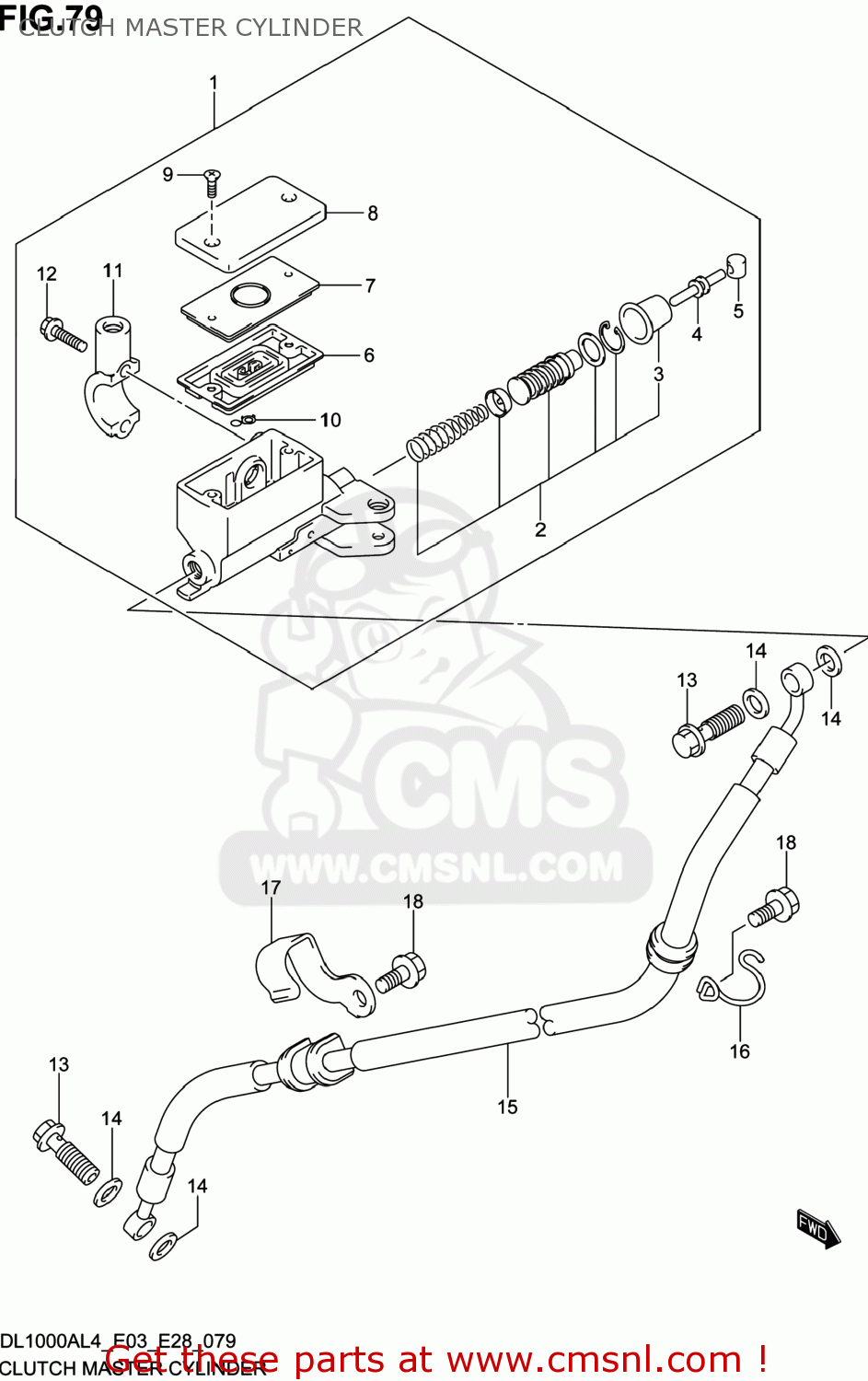

Clutch master cylinder diagram DL1000A VSTROM 2014 (L4) USA (E03)
CLUTCH MASTER CYLINDER DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5980032F01
ref: 1
CYLINDER ASSY,CLUTCH MASTER
€ 292.50
2
5980032810
ref: 2
PISTON & CUP SET
€ 35.00
3
5986623H00
ref: 3
BOOT
€ 5.50
4
5987132F00
ref: 4
ROD,PUSH
€ 6.50
5
5989208A00
ref: 5
BUSH
€ 5.50
6
5966749460
ref: 6
5966749460
7
5966841C00
ref: 7
PLATE,DIAPHRAGM
€ 8.00
8
5966910G00
ref: 8
CAP
€ 19.00
9
6968949300
ref: 9
SCREW
€ 1.50
10
5966432F00
ref: 10
PROTECTOR
€ 7.50
11
5967132F00
ref: 11
HOLDER
€ 17.00
12
5967502FA0
ref: 12
BOLT(6X22)
€ 3.00
13
0936010062
ref: 13
BOLT UNION
€ 5.00
14
0916110009
ref: 14
WASHER(10X15X1.5)
€ 2.00
15
5991031J00
ref: 15
HOSE,CLUTCH
€ 58.00
16
5991531J00
ref: 16
CLAMP,CLUTCH HOSE NO.1
€ 11.50
17
5992131J00
ref: 17
CLAMP,CLUTCH HOSE NO.2
€ 7.00
18
015500612A
ref: 18
BOLT
€ 2.50
