REAR SWINGINGARM
DL1000A VSTROM 2014 (L4) USA (E03)

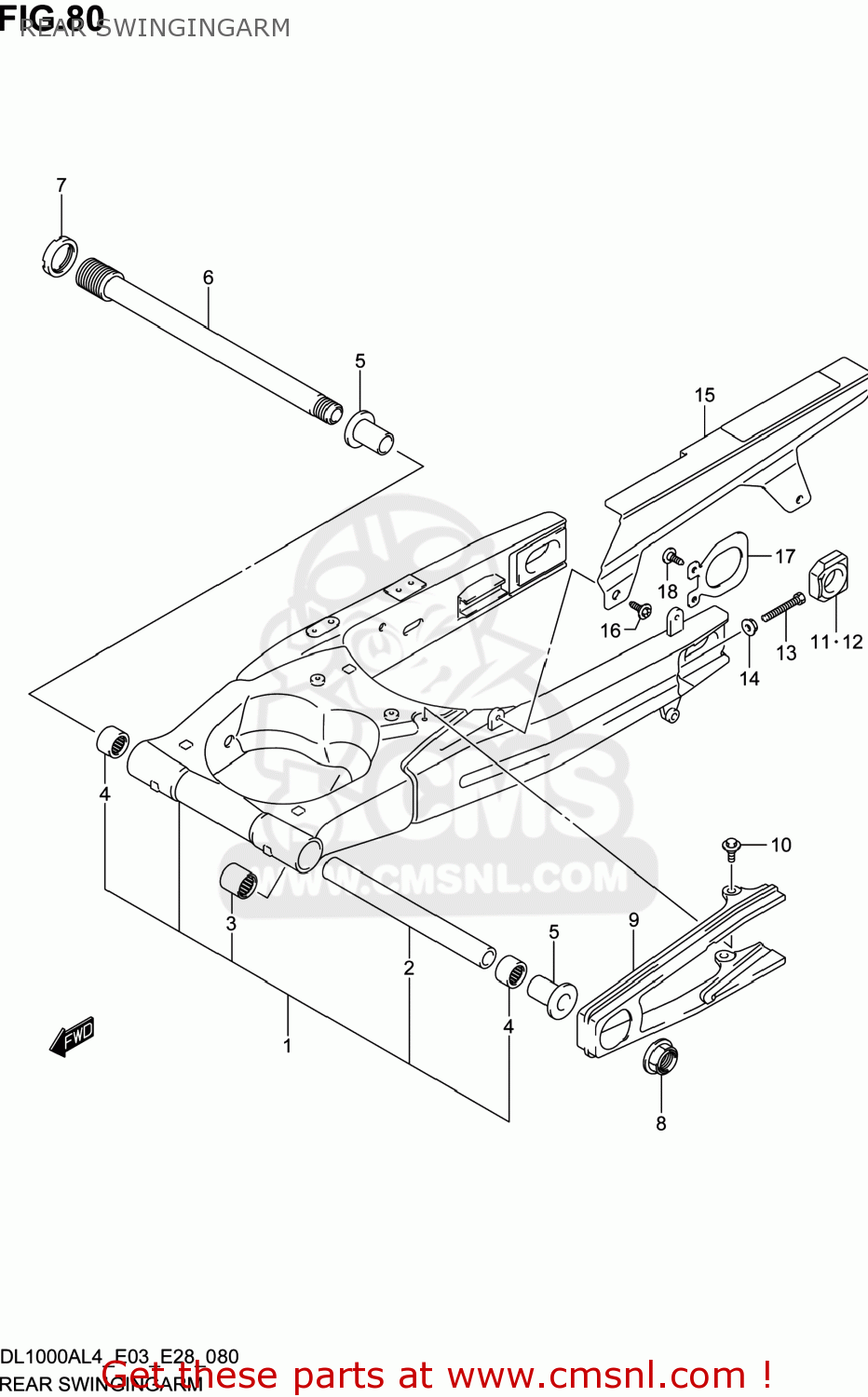

Rear swingingarm diagram DL1000A VSTROM 2014 (L4) USA (E03)
REAR SWINGINGARM DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100031J00YAP
ref: 1
SWINGINGARM ASSY,REAR
€ 1,444.50
1
6100031J00YAP
ref: 1
SWINGINGARM ASSY,REAR
€ 1,444.50
2
6128131J00
ref: 2
SPACER,RR SWGARM PIVOT CTR
€ 14.50
3
0926320070
ref: 3
BEARING(20X27X30)
€ 21.00
4
0926327013
ref: 4
BEARING(27X35X35)
€ 23.00
5
6125141G00
ref: 5
SPACER,RR SWGARM PIVOT BEARING
€ 19.00
6
6121131J00
ref: 6
SHAFT,RR SWGARM PIVOT
€ 46.50
7
6121442E10
ref: 7
NUT,RR SWGARM PIVOT BOLT
€ 9.00
8
0915920006
ref: 8
NUT
€ 19.00
9
6127331J00
ref: 9
BUFFER,CHAIN TOUCH DEFENSE
€ 20.00
10
0911106072
ref: 10
BOLT(6X17.8)
€ 2.00
11
6144640F10
ref: 11
ADJUSTER,CHAIN
€ 31.00
12
6144540F20
ref: 12
ADJUSTER,CHAIN
€ 31.00
13
0910008287
ref: 13
BOLT(8X50)
€ 3.00
14
083161008A
ref: 14
NUT
€ 2.50
15
6131016G00
ref: 15
CASE,CHAIN
€ 44.00
16
0911106107
ref: 16
BOLT(6X12)
€ 3.00
17
6112433E00
ref: 17
PLATE,RR SWING ARM BRKT
€ 3.50
18
0912506060
ref: 18
SCREW(6X12)
€ 1.50
