STAND
DL1000A VSTROM 2014 (L4) USA (E03)

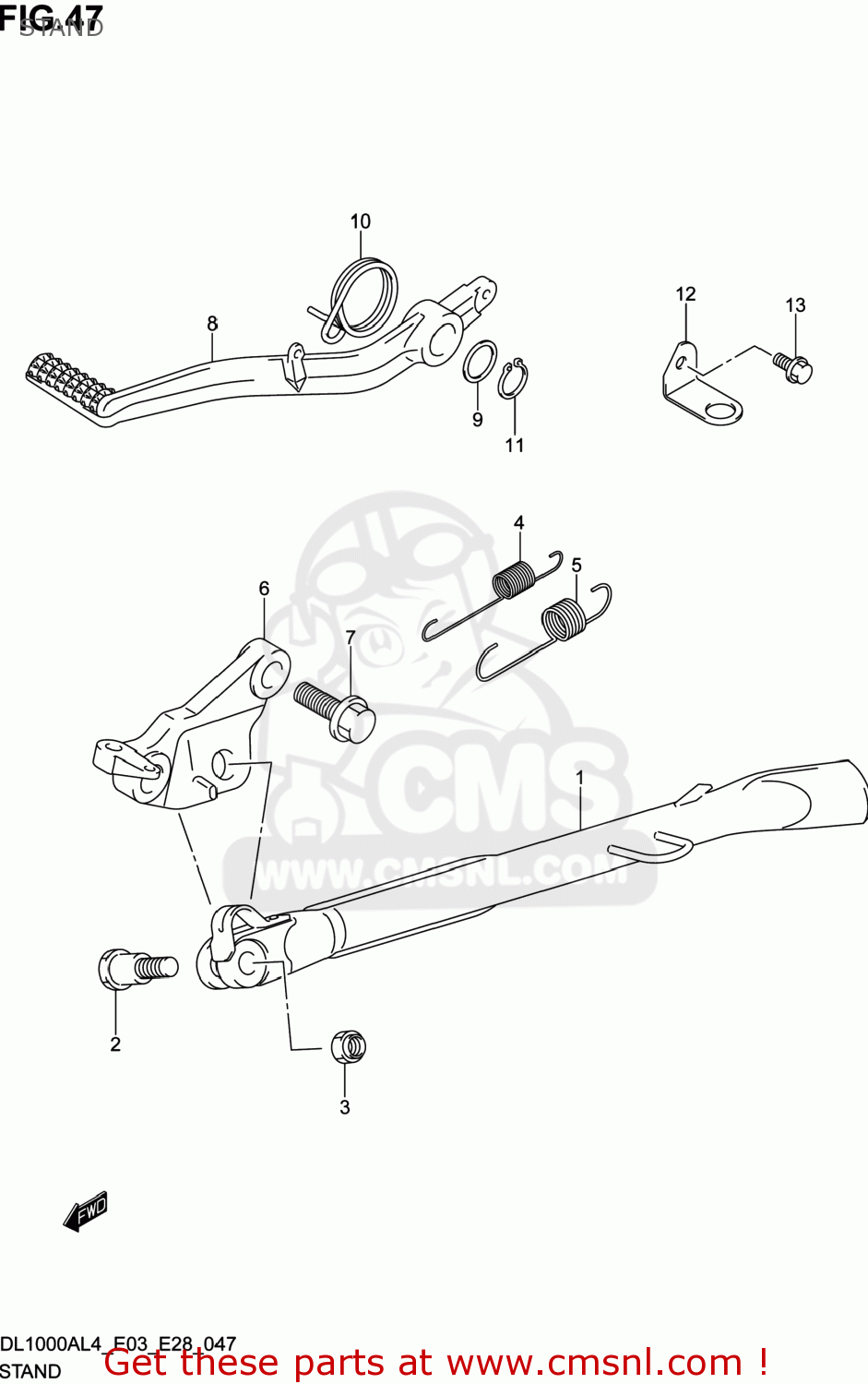

Stand diagram DL1000A VSTROM 2014 (L4) USA (E03)
STAND DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231031J10
ref: 1
STAND COMP,PROP
€ 104.50
2
0911110058
ref: 2
BOLT(10X37.5)
€ 6.00
3
4232103FK0
ref: 3
NUT,PROP STAND
€ 4.50
4
0944314058
ref: 4
SPRING
€ 5.50
5
0944319011
ref: 5
SPRING
€ 5.50
6
4233031J00
ref: 6
BRACKET,PROP STAND
€ 49.00
7
015501235A
ref: 7
BOLT
€ 3.00
8
4311131J00
ref: 8
PEDAL,BRAKE
€ 43.00
9
0916018022
ref: 9
WASHER(18X24X1)
€ 3.00
10
0944841005
ref: 10
SPRING
€ 4.00
11
083313118A
ref: 11
CIRCLIP
€ 2.00
12
4325131J00
ref: 12
BRACKET,STOP LAMP SWITCH
€ 4.00
13
015500612A
ref: 13
BOLT
€ 2.50
