CRANKSHAFT
DL1000A VSTROM 2014 (L4) USA (E03)

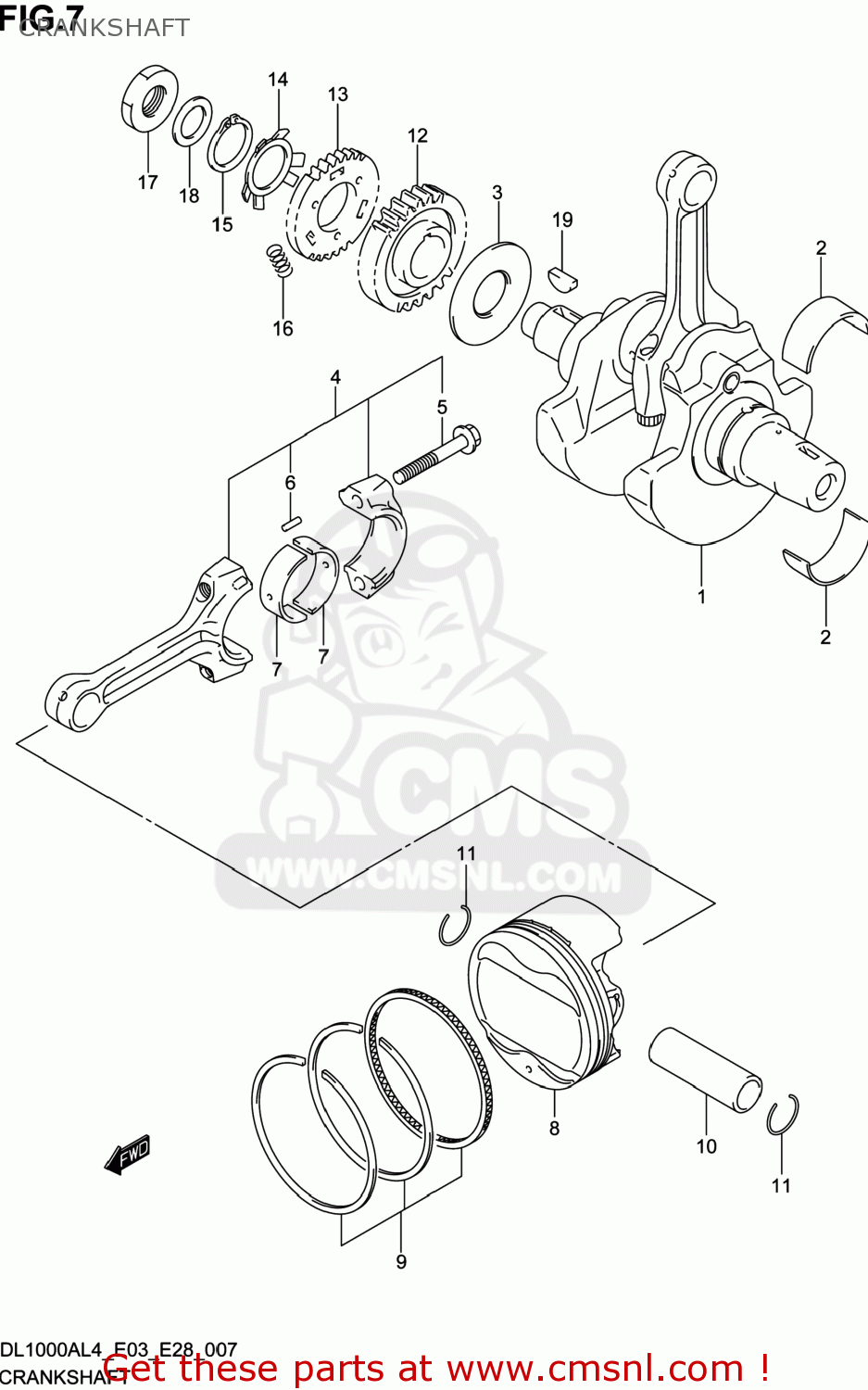

Crankshaft diagram DL1000A VSTROM 2014 (L4) USA (E03)
CRANKSHAFT DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1222031J00
ref: 1
CRANKSHAFT
€ 800.00
2-1
1222931J000A0
ref: 2-1
BEARING,CRANKSHAFT
€ 17.00
2-2
1222931J000B0
ref: 2-2
BEARING,CRANKSHAFT
€ 17.00
2-3
1222931J000C0
ref: 2-3
BEARING,CRANKSHAFT
€ 17.50
3
1265238B00
ref: 3
WASHER,CRANK THRUST
€ 54.50
4
1216006G10
ref: 4
CONNECTING ROD ASSY
€ 133.00
5
1216306G00
ref: 5
BOLT,CONNECTING ROD
€ 12.00
6
1216527A50
ref: 6
PIN,CONNECTING ROD
€ 1.00
7-1
1216431J000A0
ref: 7-1
BEARING,CRANK PIN
€ 16.00
7-2
1216431J000B0
ref: 7-2
BEARING,CRANK PIN
€ 15.50
7-3
1216431J000C0
ref: 7-3
BEARING,CRANK PIN
€ 15.50
7-4
1216431J000D0
ref: 7-4
BEARING,CRANK PIN
€ 16.00
8
1211131J000F0
ref: 8
PISTON
€ 158.00
9
1214031J00
ref: 9
RING SET,PISTON
€ 60.00
10
1215102F10
ref: 10
PIN,PISTON
€ 18.50
11
0938122002
ref: 11
CIRCLIP
€ 1.50
12
2111102F11
ref: 12
GEAR,PRIMARY DRIVE
€ 91.50
13
2111202F00
ref: 13
GEAR,PRIMARY DRIVE SCISSORS
€ 72.50
13
2111202F00
ref: 13
GEAR,PRIMARY DRIVE SCISSORS
€ 72.50
14
2111402F00
ref: 14
WASHER,PRI DRIVE
€ 5.50
15
0833131409
ref: 15
CIRCLIP
€ 2.50
16
0944007001
ref: 16
SPRING
€ 2.00
17
0914022012
ref: 17
NUT
€ 7.50
18
0916422007
ref: 18
WASHER
€ 5.00
19
0942006001
ref: 19
KEY
€ 5.50
