EVAP SYSTEM (DL1000AL4 E33)

DL1000A VSTROM 2014 (L4) USA (E03)

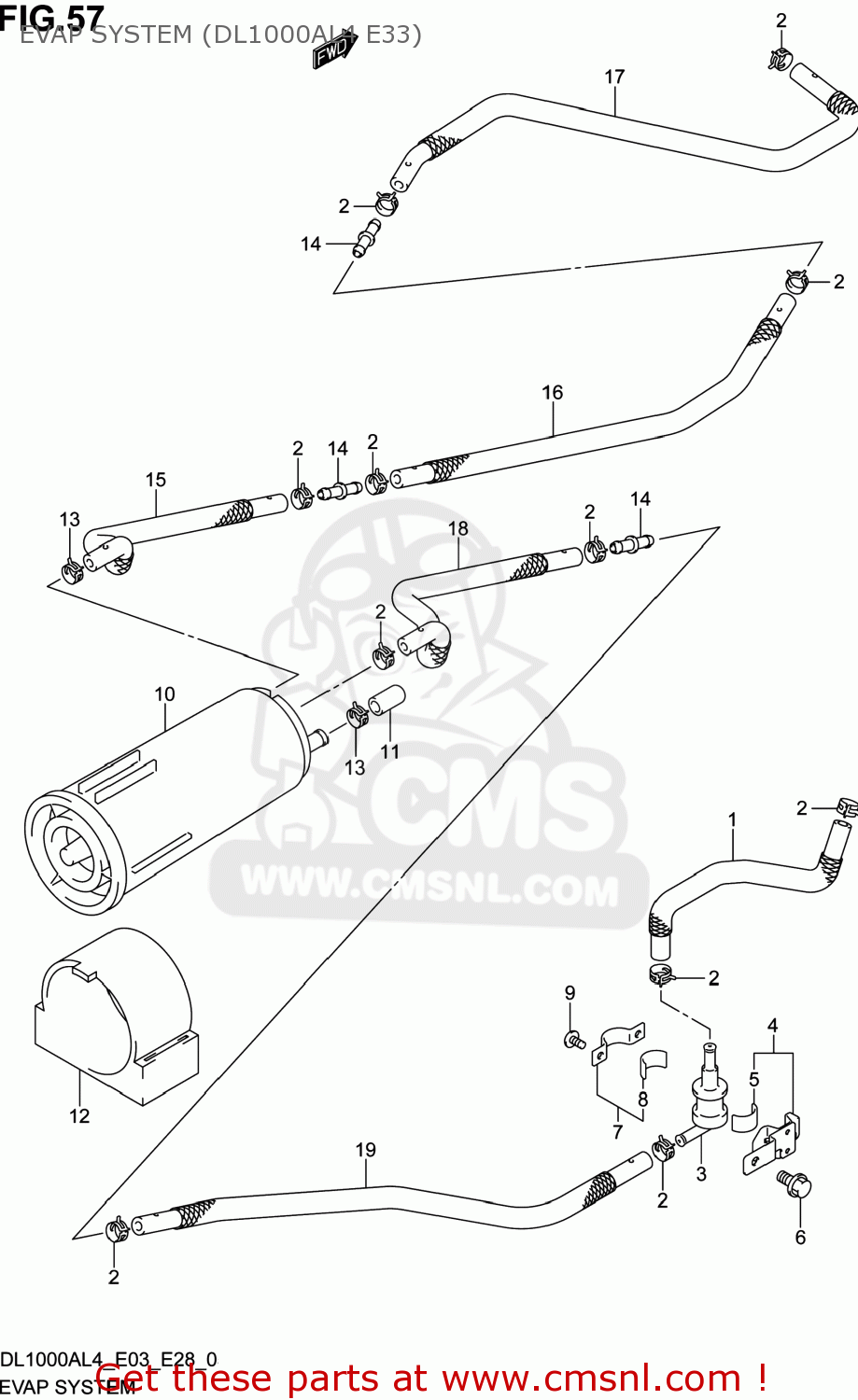

Evap system (dl1000al4 e33) diagram DL1000A VSTROM 2014 (L4) USA (E03)

EVAP SYSTEM (DL1000AL4 E33) DL1000A VSTROM 2014 (L4) USA (E03)
EVAP SYSTEM (DL1000AL4 E33) DL1000A VSTROM 2014 (L4) USA (E03)
EVAP SYSTEM (DL1000AL4 E33) DL1000A VSTROM 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4443431J00
ref: 1
HOSE,TANK & BREATHER VALVE
€ 0.00
2
0940111413
ref: 2
CLIP
0940111413
€ 2.50
3
4424017C00
ref: 3
VALVE,FUEL TANK BREATHER
4424017C00
€ 40.00
4
4489006G00
ref: 4
PLATE,BREATHER VALVE
€ 0.00
5
4489424A00
ref: 5
CUSHION
4489424A00
€ 1.50
6
015500612B
ref: 6
BOLT
015500612B
€ 2.50
7
4489224A00
ref: 7
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
8
4489424A00
ref: 8
CUSHION
4489424A00
€ 1.50
9
021420408B
ref: 9
SCREW
021420408B
€ 1.50
10
1721015H00
ref: 10
CANISTER ASSY,CHARCOAL
€ 201.50
11
0925107003
ref: 11
CAP,OD:11.5
0925107003
€ 2.00
12
4488306G00
ref: 12
CUSHION,CANISTER
€ 8.00
13
0940112404
ref: 13
CLIP
0940112404
€ 2.50
14
0936706009
ref: 14
JOINT
0936706009
€ 2.50
15
1856131J00
ref: 15
HOSE,CSTR PURGE NO.1
€ 0.00
16
1856131J10
ref: 16
HOSE,CSTR PURGE NO.2
€ 25.50
17
1856131J20
ref: 17
HOSE,CSTR PURGE NO.3
€ 26.00
18
1856331J00
ref: 18
HOSE,CSTR SURGE NO.1
€ 0.00
19
1856331J10
ref: 19
HOSE,CSTR SURGE NO.2
€ 0.00
