Buy Suzuki DL Parts Online


BATTERY

DL1000A VSTROM 2014 (L4) USA (E03)

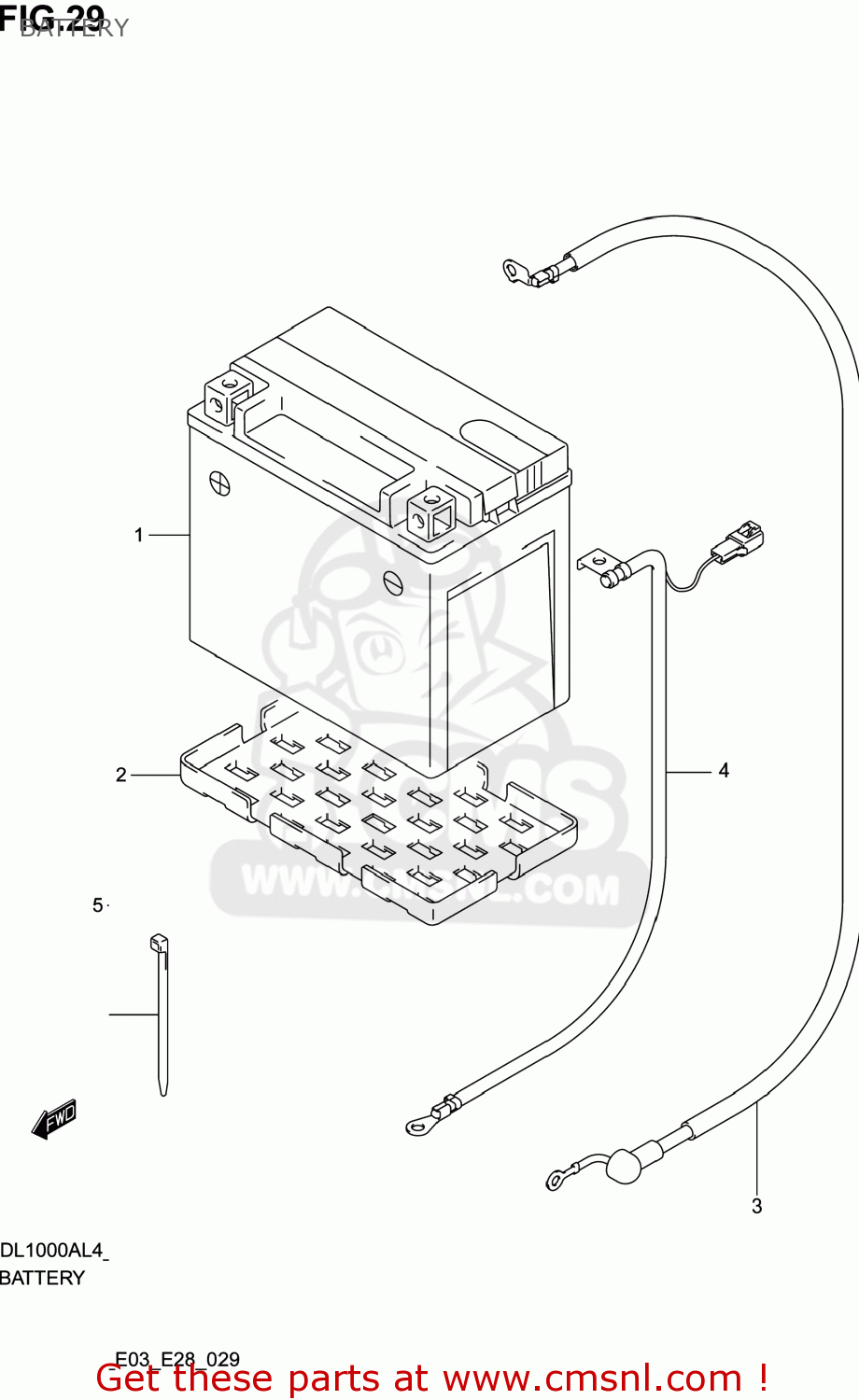

Battery diagram DL1000A VSTROM 2014 (L4) USA (E03)

BATTERY DL1000A VSTROM 2014 (L4) USA (E03)
BATTERY DL1000A VSTROM 2014 (L4) USA (E03)
BATTERY DL1000A VSTROM 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3361026D10
ref: 1
BATTERY ASSY (12V) YTX14-BS
3361026D10
€ 116.50
1
3361026D10
ref: 1
BATTERY ASSY (12V) YTX14-BS
3361026D10
€ 116.50
2
3365216G00
ref: 2
PROTECTOR,BATTERY
3365216G00
€ 5.50
3
3381031J00
ref: 3
WIRE,STARTER MOTOR LEAD
3381031J00
€ 28.50
4
3386031J00
ref: 4
WIRE,BATTERY MINUS LEAD
3386031J00
€ 25.50
5
0940714407
ref: 5
CLAMP(L:145)
0940714407
€ 4.00
