CYLINDER
DL1000A VSTROM 2014 (L4) USA (E03)

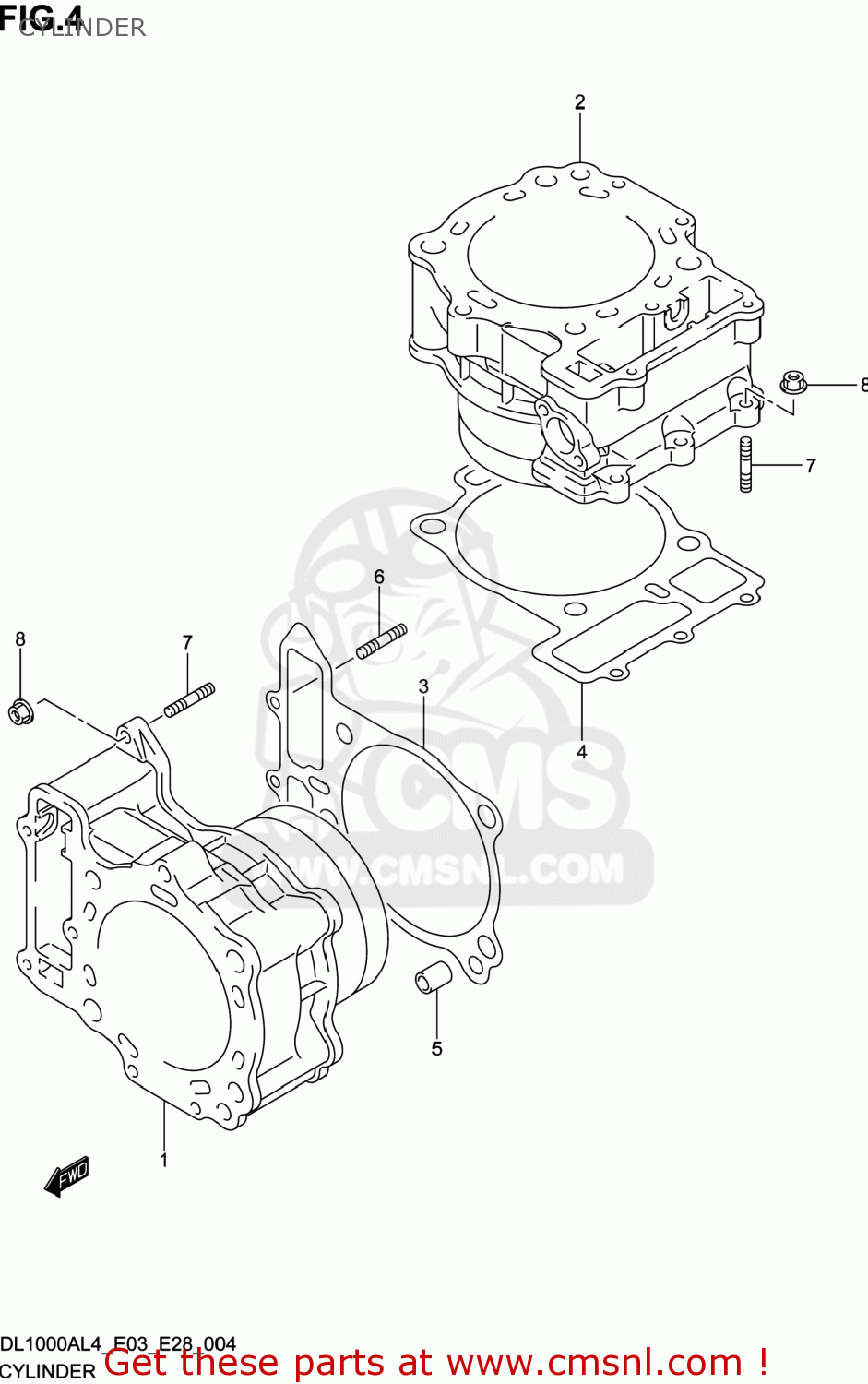

Cylinder diagram DL1000A VSTROM 2014 (L4) USA (E03)
CYLINDER DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1121131J000F0
ref: 1
CYLINDER,FRONT
€ 713.50
2
1122131J000F0
ref: 2
CYLINDER,REAR
€ 713.50
3
1124131J00
ref: 3
GASKET,CYLINDER FRONT (NAS)
€ 14.00
4
1124231J00
ref: 4
GASKET,CYLINDER REAR (NAS)
€ 15.50
5
0421113189
ref: 5
PIN
€ 2.50
6
0910806134
ref: 6
BOLT,STUD
€ 2.00
7
014210620A
ref: 7
BOLT,STUD
€ 2.50
8
083161006A
ref: 8
NUT
€ 2.50
