STEERING STEM
DL1000A VSTROM 2014 (L4) USA (E03)

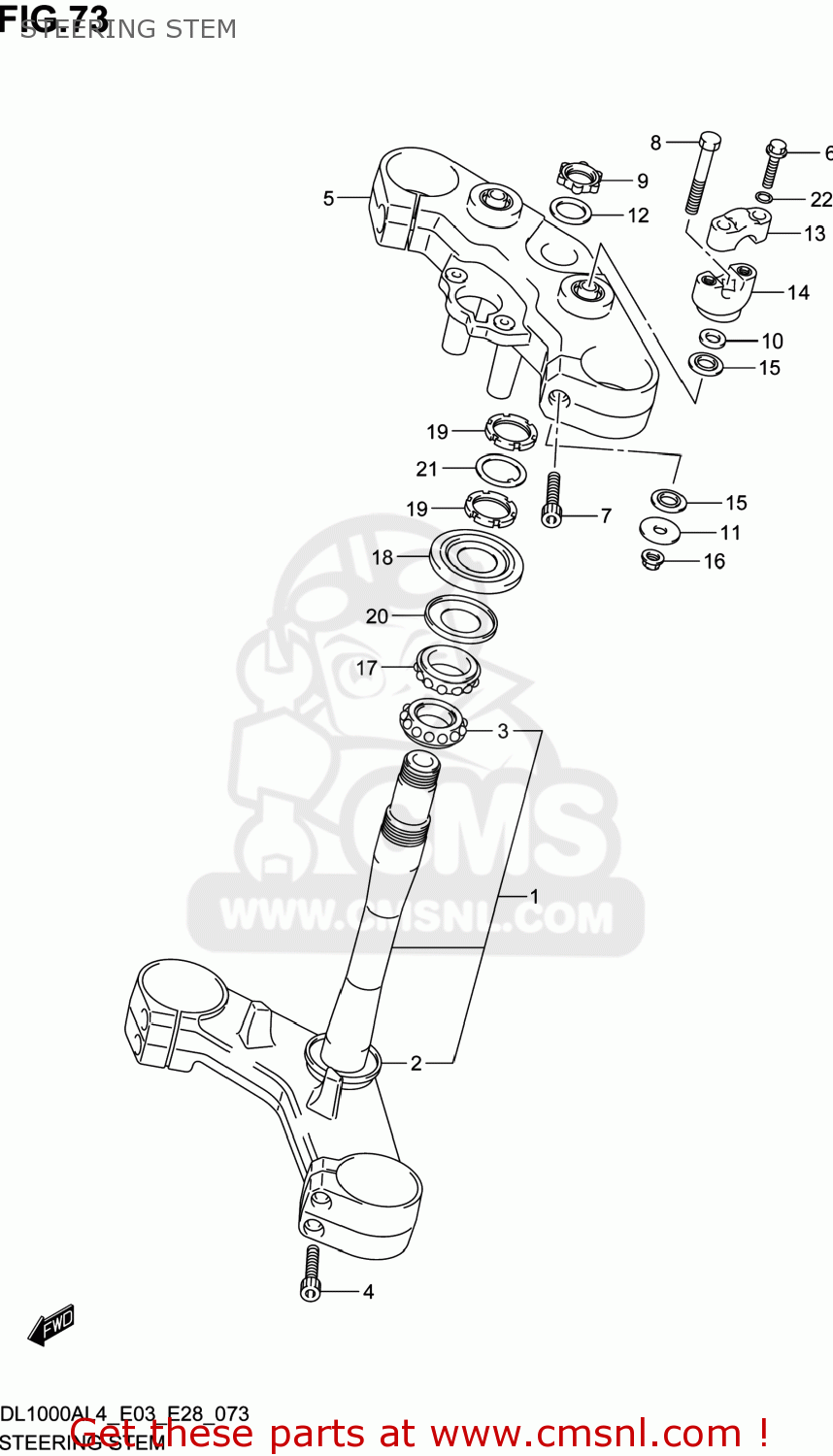

Steering stem diagram DL1000A VSTROM 2014 (L4) USA (E03)
STEERING STEM DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141031J00
ref: 1
BRACKET,UNDER
€ 506.50
2
5164412C00
ref: 2
SEAL,STEERING LWR
€ 5.50
3
0926730010
ref: 3
BEARING(30X55X17)
€ 46.50
4
5114731J00
ref: 4
BOLT
€ 2.00
5
5131131J00YTA
ref: 5
BRACKET,UPPER(BLACK)
€ 267.00
6
5132844G10
ref: 6
BOLT
€ 4.00
7
5132844G10
ref: 7
BOLT
€ 4.00
8
5132117H10
ref: 8
BOLT
€ 6.50
9
5135324F00
ref: 9
NUT
€ 27.50
10
5135417H00
ref: 10
WASHER
€ 3.50
11
5135516G00
ref: 11
WASHER
€ 3.50
12
5135624F50
ref: 12
WASHER
€ 3.00
13
5621131J00YTA
ref: 13
HOLDER,HANDLE UPPER(BLACK)
€ 30.50
14
5622108J00YTA
ref: 14
HOLDER,HANDLE LOWER(BLACK)
€ 65.00
15
5624531J00
ref: 15
RUBBER,HANDLE HOLDER
€ 2.00
16
083193110A
ref: 16
NUT
€ 3.00
17
0926730010
ref: 17
BEARING(30X55X17)
€ 46.50
18
5164341G00
ref: 18
COVER,STEERING UPR
€ 35.50
19
5163133E00
ref: 19
NUT,STEERING STEM
€ 12.00
20
5164412C00
ref: 20
SEAL,STEERING LWR
€ 5.50
21
5164133E00
ref: 21
WASHER,STEERING STEM
€ 3.00
22
0916408015
ref: 22
WASHER
€ 3.00
