FRONT FORK DAMPER
DL1000A VSTROM 2014 (L4) USA (E03)

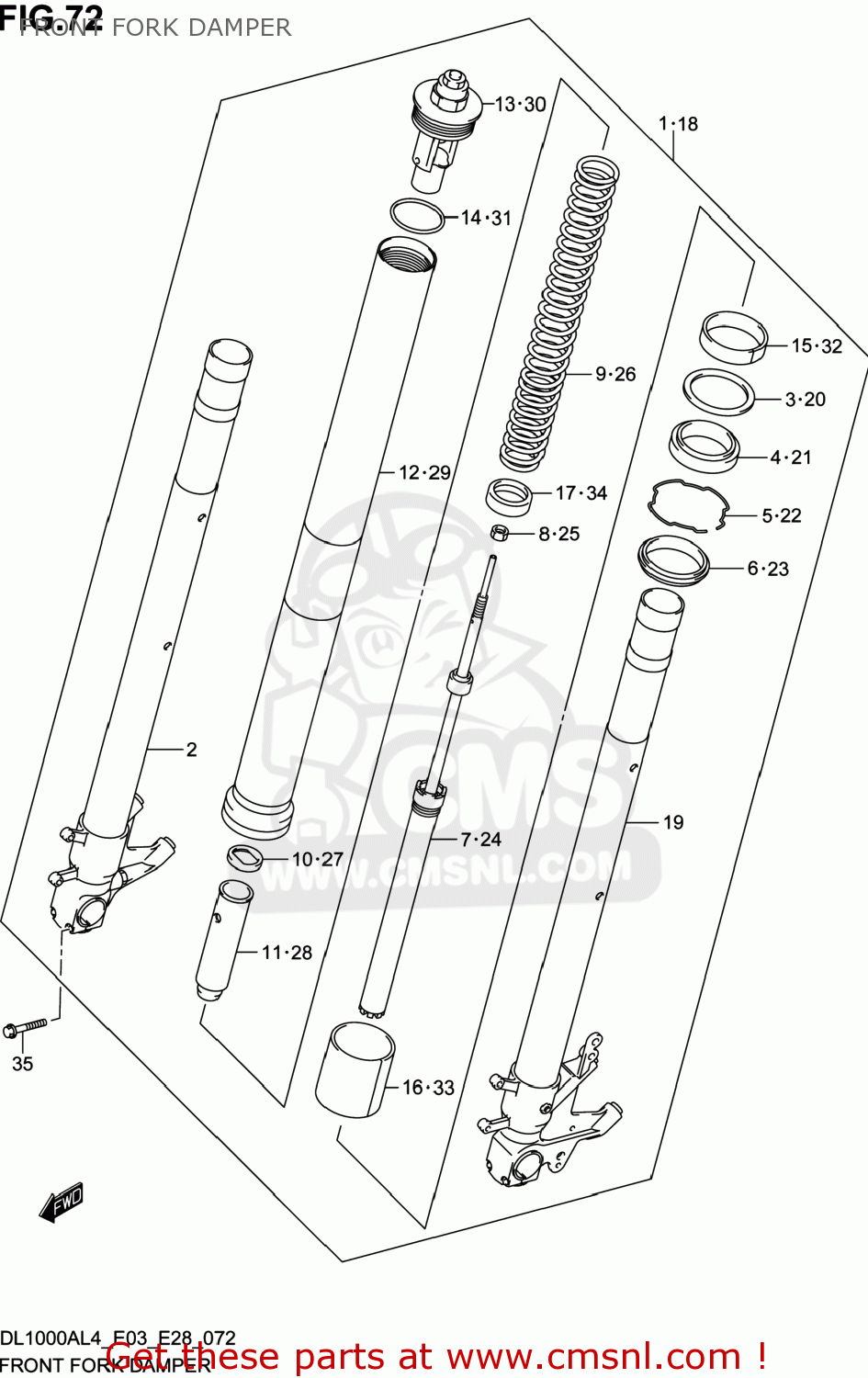

Front fork damper diagram DL1000A VSTROM 2014 (L4) USA (E03)
FRONT FORK DAMPER DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110331J00
ref: 1
DAMPER ASSY,FR FORK,R
€ 1,145.00
2
5111031J00
ref: 2
TUBE,INNER,R
€ 525.00
3
5115840F00
ref: 3
WASHER
€ 12.50
4
5115344G00
ref: 4
SEAL,OIL
€ 25.00
5
5115614200
ref: 5
RING,STOPPER
€ 4.50
6
5117302FA0
ref: 6
SEAL,DUST
€ 21.00
7
5114631J00
ref: 7
CYLINDER
€ 117.50
8
5135213A60
ref: 8
NUT,ROD
€ 1.50
9
5117131J00
ref: 9
SPRING
€ 53.00
10
5115840F30
ref: 10
GUIDE,SPRING
€ 7.00
11
5117648G10
ref: 11
SPACER,SPRING
€ 14.00
12
5113131J00
ref: 12
TUBE,OUTER
€ 499.00
13
5135131J00
ref: 13
CAP
€ 179.50
14
6227814100
ref: 14
O RING
€ 3.50
15
5111231J00
ref: 15
PISTON
€ 7.50
16
5115231J00
ref: 16
SLIDEMETAL
€ 9.00
17
5117831J00
ref: 17
SEAT,SPRING
€ 5.00
18
5110431J00
ref: 18
DAMPER ASSY,FR FORK,L
€ 1,145.00
19
5112031J00
ref: 19
TUBE,INNER,L
€ 525.00
20
5115840F00
ref: 20
WASHER
€ 12.50
21
5115344G00
ref: 21
SEAL,OIL
€ 25.00
22
5115614200
ref: 22
RING,STOPPER
€ 4.50
23
5117302FA0
ref: 23
SEAL,DUST
€ 21.00
24
5114631J00
ref: 24
CYLINDER
€ 117.50
25
5135213A60
ref: 25
NUT,ROD
€ 1.50
26
5117131J00
ref: 26
SPRING
€ 53.00
27
5115840F30
ref: 27
GUIDE,SPRING
€ 7.00
28
5117648G10
ref: 28
SPACER,SPRING
€ 14.00
29
5113131J00
ref: 29
TUBE,OUTER
€ 499.00
30
5135131J00
ref: 30
CAP
€ 179.50
31
6227814100
ref: 31
O RING
€ 3.50
32
5111231J00
ref: 32
PISTON
€ 7.50
33
5115231J00
ref: 33
SLIDEMETAL
€ 9.00
34
5117831J00
ref: 34
SEAT,SPRING
€ 5.00
35
5116624F60
ref: 35
BOLT
€ 4.50
