ELECTRICAL (DL1000AL4 E28)

DL1000A VSTROM 2014 (L4) USA (E03)

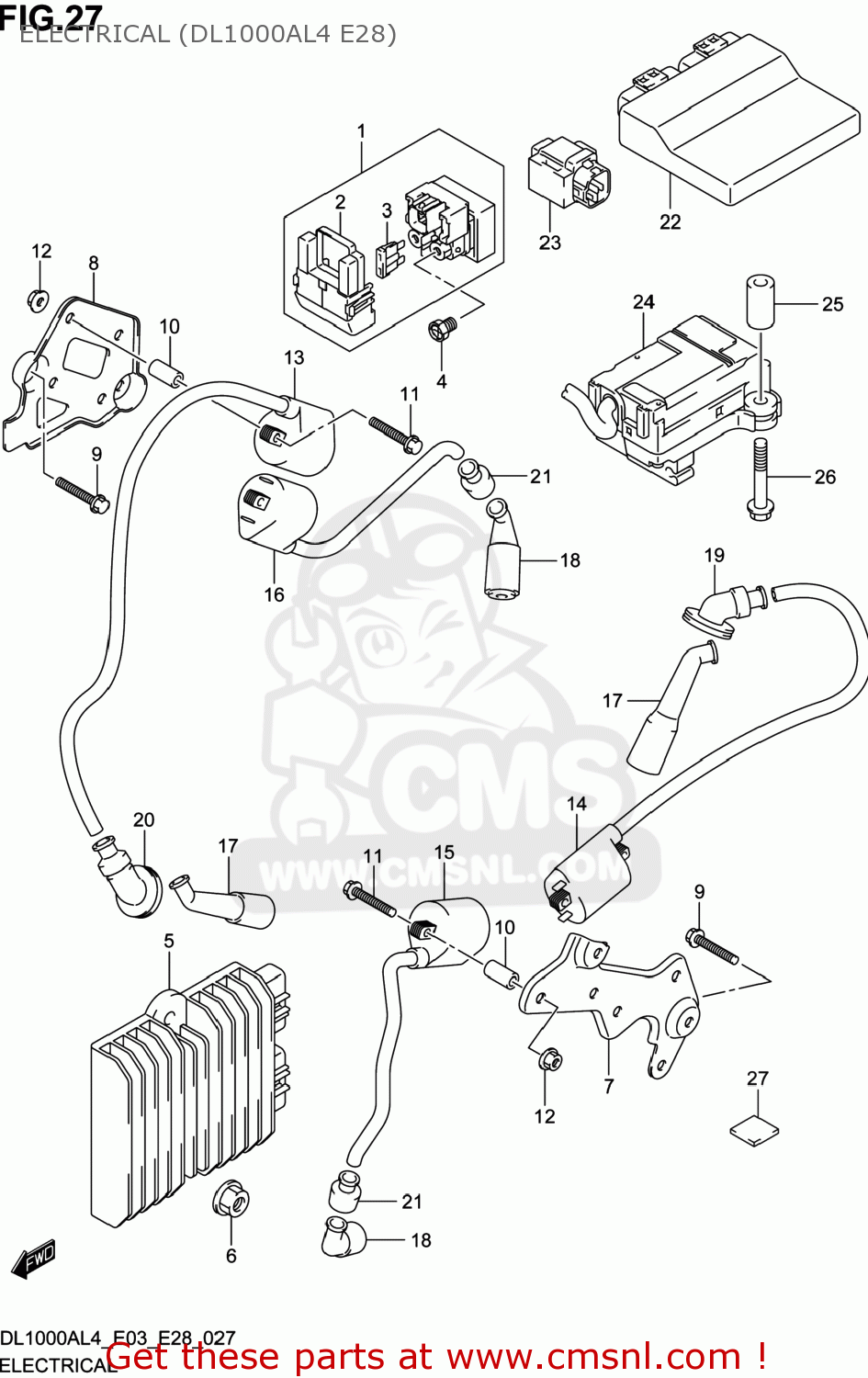

Electrical (dl1000al4 e28) diagram DL1000A VSTROM 2014 (L4) USA (E03)

ELECTRICAL (DL1000AL4 E28) DL1000A VSTROM 2014 (L4) USA (E03)
ELECTRICAL (DL1000AL4 E28) DL1000A VSTROM 2014 (L4) USA (E03)
ELECTRICAL (DL1000AL4 E28) DL1000A VSTROM 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180006G00
ref: 1
RELAY ASSY,STARTING MOTOR
3180006G00
€ 78.50
2
3186147E00
ref: 2
COVER
3186147E00
€ 10.50
3
0948130101
ref: 3
FUSE(30A)
0948130101
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
0912806013
€ 1.50
5
3280031J00
ref: 5
RECTIFIER ASSY
3280031J00
€ 260.50
6
083161006A
ref: 6
NUT
083161006A
€ 2.50
7
3341431J00
ref: 7
BRACKET,IGNITION COIL
€ 9.00
8
3342431J00
ref: 8
BRACKET,IGNITION COIL
€ 8.50
9
015500620A
ref: 9
BOLT
015500620A
€ 2.50
10
0918006195
ref: 10
SPACER(6.4X10X18)
0918006195
€ 3.50
11
0910306231
ref: 11
BOLT(6X35)
0910306231
€ 3.00
12
0915906096
ref: 12
NUT
€ 2.00
13
3341006G00
ref: 13
COIL ASSY,IGNITION
3341006G00
€ 79.00
14
3341017G00
ref: 14
COIL ASSY,IGNITION
3341017G00
€ 86.50
15
3341020H00
ref: 15
COIL ASSY,IGNITION
€ 79.00
16
3341026G00
ref: 16
COIL ASSY,IGNITION
3341026G00
€ 78.50
17
3351031G00
ref: 17
CAP ASSY,SPARK PLUG
3351031G00
€ 25.00
18
3351031G10
ref: 18
CAP ASSY,SPARK PLUG
3351031G10
€ 19.50
19
3354206G00
ref: 19
SEAL,HIGH TENSION CORD RR
3354206G00
€ 5.50
20
3354206G10
ref: 20
SEAL,HIGH TENSION CORD FR
3354206G10
€ 5.50
21
3354238B00
ref: 21
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
22
3292031J10
ref: 22
CONTROL UNIT,FI
€ 0.00
23
3396027G00
ref: 23
SENSOR ASSY,FUEL CUT
3396027G00
€ 72.00
24
3397047H01
ref: 24
ACTUATOR ASSY,EXHAUST CONTROL
€ 254.00
25
0918006345
ref: 25
SPACER(6.2X14.5X26)
€ 6.50
26
015500655A
ref: 26
BOLT
€ 2.00
27
4453424F00
ref: 27
CUSHION
4453424F00
€ 3.00
