FRONT BRAKE HOSE
DL1000A VSTROM 2014 (L4) USA (E03)

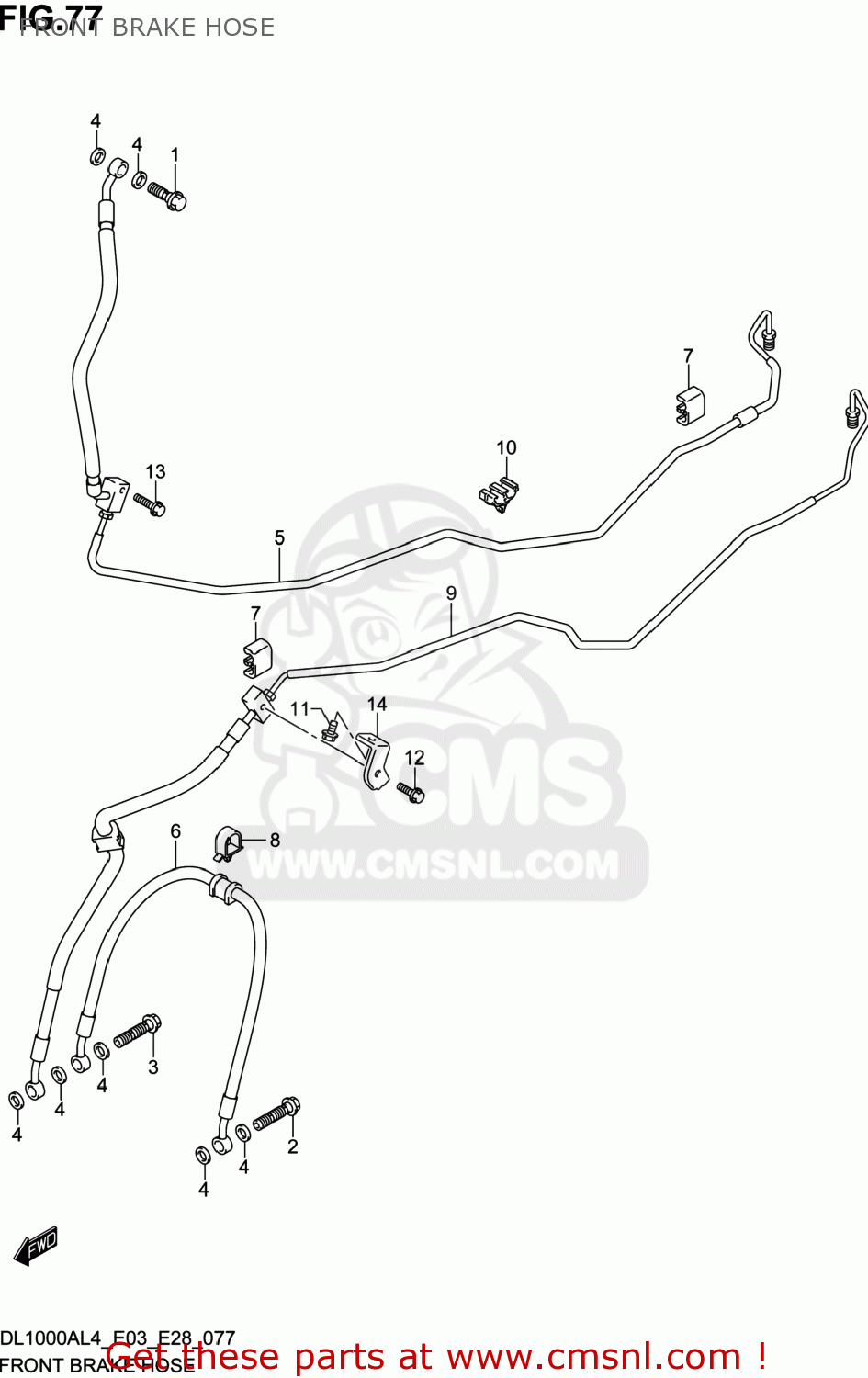

Front brake hose diagram DL1000A VSTROM 2014 (L4) USA (E03)
FRONT BRAKE HOSE DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
0936010062
ref: 1
BOLT UNION
€ 5.00
2
0936010062
ref: 2
BOLT UNION
€ 5.00
3
0936010064
ref: 3
BOLT UNION
€ 5.00
4
0916110009
ref: 4
WASHER(10X15X1.5)
€ 2.00
5
5920031J00
ref: 5
HOSE ASSY,FR MASTER TO UNIT
€ 106.50
6
5924031J00
ref: 6
HOSE,FR CLPR TO CLPR
€ 54.50
7
0940306324
ref: 7
CLAMP
€ 2.50
8
0940316413
ref: 8
CLAMP
€ 3.00
9
5940031J00
ref: 9
HOSE ASSY,FR UNIT TO CLPR
€ 75.50
10
0940307334
ref: 10
CLAMP
€ 3.00
11
015470612A
ref: 11
BOLT
€ 2.00
12
015470616A
ref: 12
BOLT
€ 2.00
13
015470625A
ref: 13
BOLT
€ 2.50
14
5926131J00
ref: 14
CLAMP,FR BRAKE HOSE NO.1
€ 6.00
