RADIATOR
DL1000A VSTROM 2014 (L4) USA (E03)

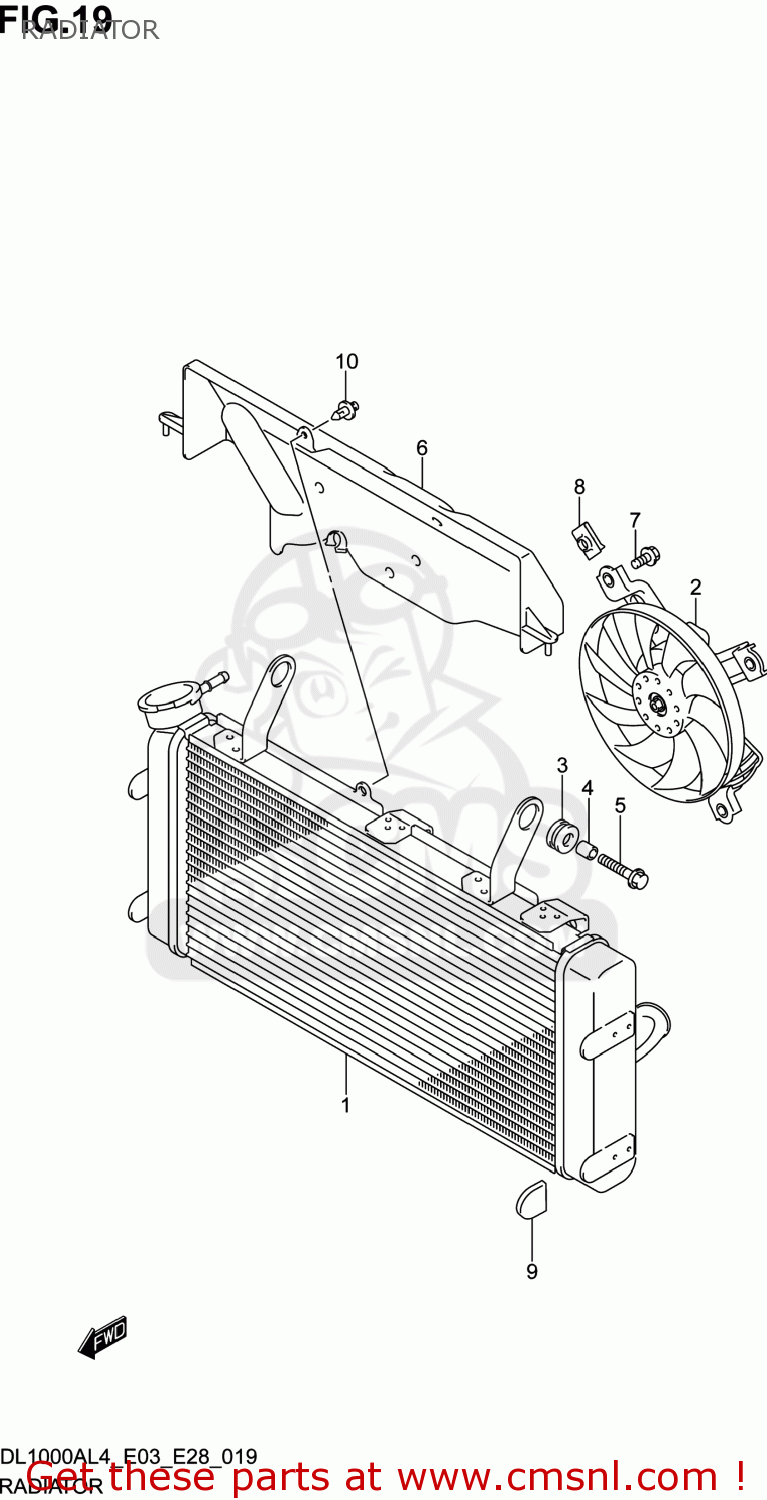

Radiator diagram DL1000A VSTROM 2014 (L4) USA (E03)
RADIATOR DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771031J00
ref: 1
RADIATOR ASSY,WATER
€ 707.50
2
1780031J00
ref: 2
FAN ASSY,RADIATOR
€ 517.00
3
0932010051
ref: 3
CUSHION
€ 3.50
4
0918006290
ref: 4
SPACER(6.5X10X12)
€ 2.50
5
0911806097
ref: 5
BOLT(6X25)
€ 2.50
6
1777131J00
ref: 6
SHIELD,RADIATOR HEAT
€ 29.00
7
015500616A
ref: 7
BOLT
€ 2.50
8
1780214F00
ref: 8
NUT,RADIATOR FAN
€ 3.00
9
0932918001
ref: 9
CUSHION
€ 2.50
10
09409063145PK
ref: 10
CLIP(BLACK)
€ 3.50
