REAR MASTER CYLINDER
DL1000A VSTROM 2014 (L4) USA (E03)

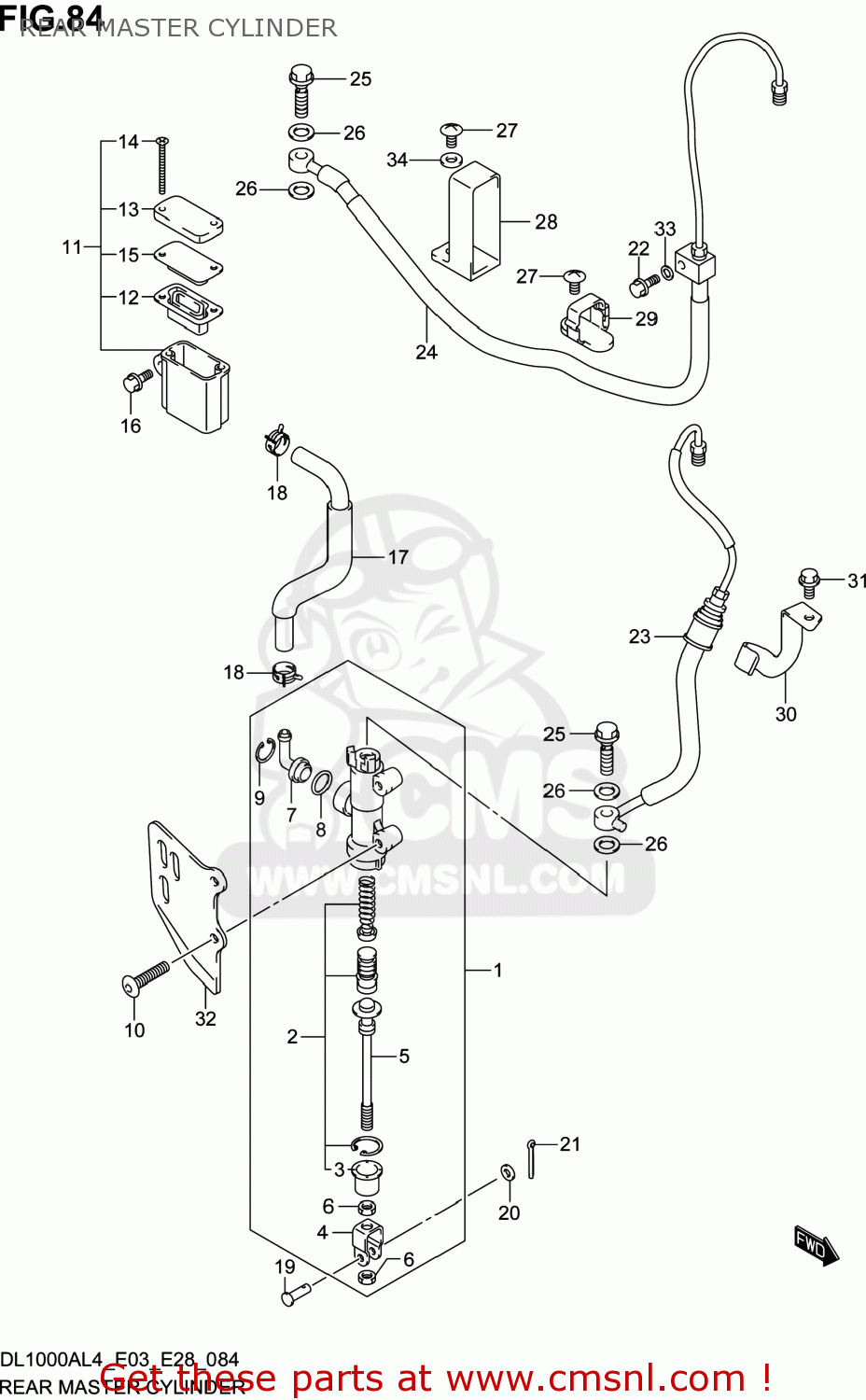

Rear master cylinder diagram DL1000A VSTROM 2014 (L4) USA (E03)
REAR MASTER CYLINDER DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960031J00
ref: 1
CYLINDER ASSY,REAR MASTER
€ 112.00
2
6960034830
ref: 2
PISTON/CUP SET
€ 24.50
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969244H00
ref: 4
YOKE
€ 10.50
5
6967031J00
ref: 5
ROD,PUSH
€ 20.50
6
6969324A00
ref: 6
69693-05A00
NUT
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
€ 5.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
€ 3.00
10
0913906029
ref: 10
SCREW(6X25)
€ 5.00
11
6974001H10
ref: 11
TANK ASSY,RESERVOIR
€ 21.50
12
6966701H00
ref: 12
DIAPHRAGM
€ 4.50
13
6966901H00
ref: 13
CAP
€ 8.50
14
6968901H00
ref: 14
SCREW
€ 3.00
15
6966801H00
ref: 15
PLATE,DIAPHRAGM
€ 3.50
16
0911106116
ref: 16
BOLT(6X16.5)
€ 2.00
17
6973031J00
ref: 17
HOSE,RR RESERVOIR TANK
€ 16.50
18
0940112404
ref: 18
CLIP
€ 2.50
19
0920006068
ref: 19
PIN(6X18.2)
€ 5.00
20
083220106A
ref: 20
WASHER
€ 2.00
21
041112015A
ref: 21
PIN
€ 1.50
22
015470612A
ref: 22
BOLT
€ 2.00
23
6920031J00
ref: 23
HOSE ASSY,RR MASTER TO UNIT
€ 67.50
24
6940031J00
ref: 24
HOSE ASSY,RR UNIT TO CLPR
€ 92.50
25
0936010062
ref: 25
BOLT UNION
€ 5.00
26
0916110009
ref: 26
WASHER(10X15X1.5)
€ 2.00
27
021420616A
ref: 27
SCREW
€ 2.50
28
6924316G00
ref: 28
GUIDE,RR BRAKE HOSE
€ 12.50
29
6119644H00
ref: 29
GUIDE,RR BRAKE HOSE
€ 4.00
30
6926131J00
ref: 30
CLAMP,RR BRAKE HOSE
€ 5.00
31
015470612A
ref: 31
BOLT
€ 2.00
32
6964131J00
ref: 32
COVER,REAR MASTER CYLINDER
€ 23.00
33
6927331J00
ref: 33
CUSHION,REAR BRAKE HOSE
€ 1.50
34
083220106A
ref: 34
WASHER
€ 2.00
