FUEL PUMP
DL1000A VSTROM 2014 (L4) USA (E03)

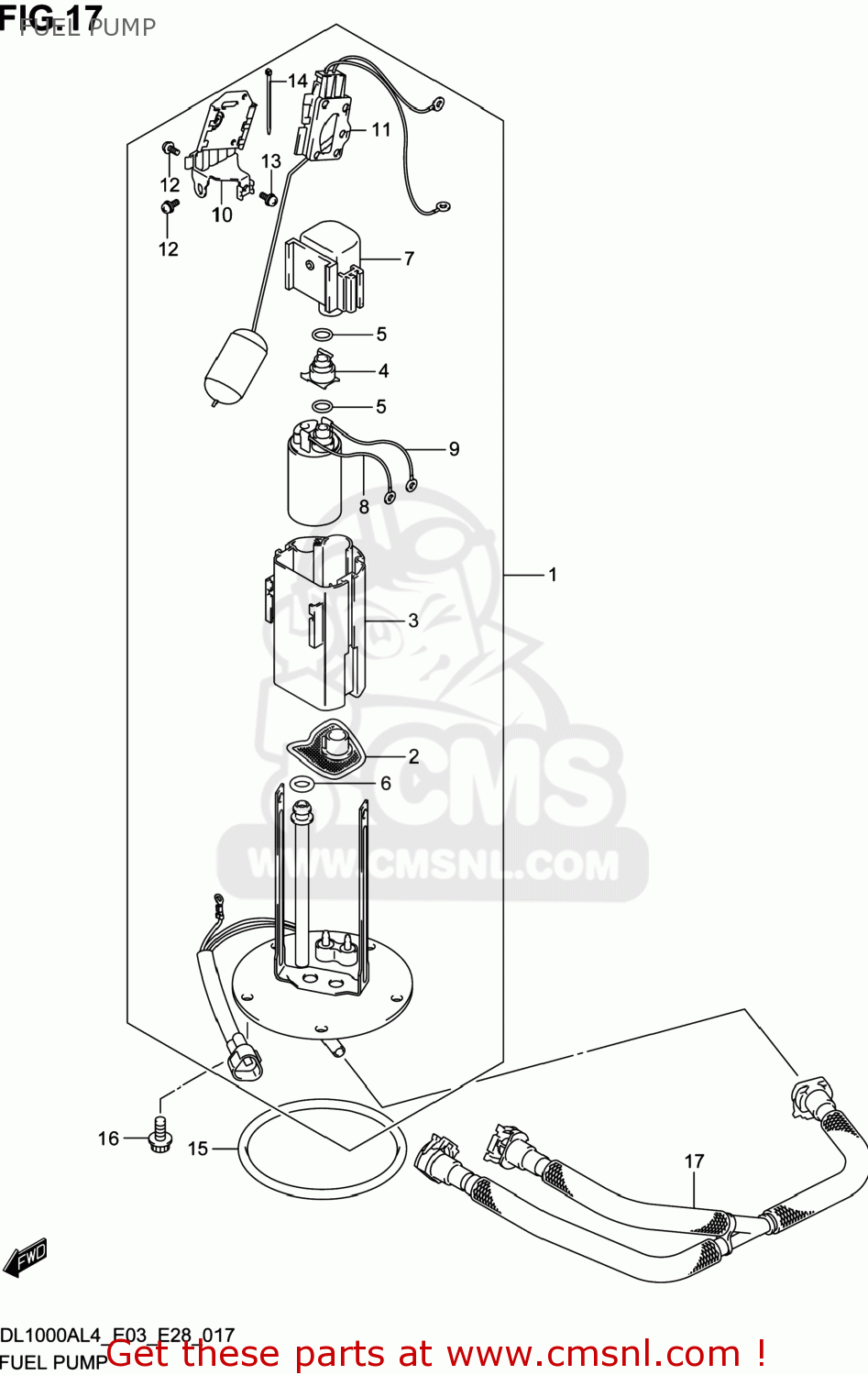

Fuel pump diagram DL1000A VSTROM 2014 (L4) USA (E03)
FUEL PUMP DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1510031J00
ref: 1
PUMP ASSY,FUEL
€ 511.00
2
1542005H00
ref: 2
STRAINER
€ 20.50
3
1511127G00
ref: 3
CUP
€ 25.00
4
1511205H00
ref: 4
JOINT
€ 17.00
5
1511305H00
ref: 5
O RING
€ 17.00
6
1511335F00
ref: 6
O RING
€ 7.50
7
1561014J00
ref: 7
REGULATOR,FUEL
€ 123.00
8
1511414J00
ref: 8
WIRE,EARTH
€ 16.00
9
1511508J00
ref: 9
WIRE,LEAD
€ 17.00
10
1518131J00
ref: 10
BRACKET,FUEL GAUGE
€ 29.00
11
3481031J00
ref: 11
GAUGE ASSY
€ 142.00
12
1511610F00
ref: 12
SCREW
€ 3.50
13
1511631J00
ref: 13
SCREW
€ 3.00
14
1515131J00
ref: 14
BINDER
€ 5.00
15
1520135F00
ref: 15
O RING,FUEL PUMP
€ 26.00
16
071200612A
ref: 16
BOLT
€ 3.50
17
1581031J00
ref: 17
HOSE,FUEL
€ 92.00
