WIRING HARNESS (DL1000AL4 E28)

DL1000A VSTROM 2014 (L4) USA (E03)

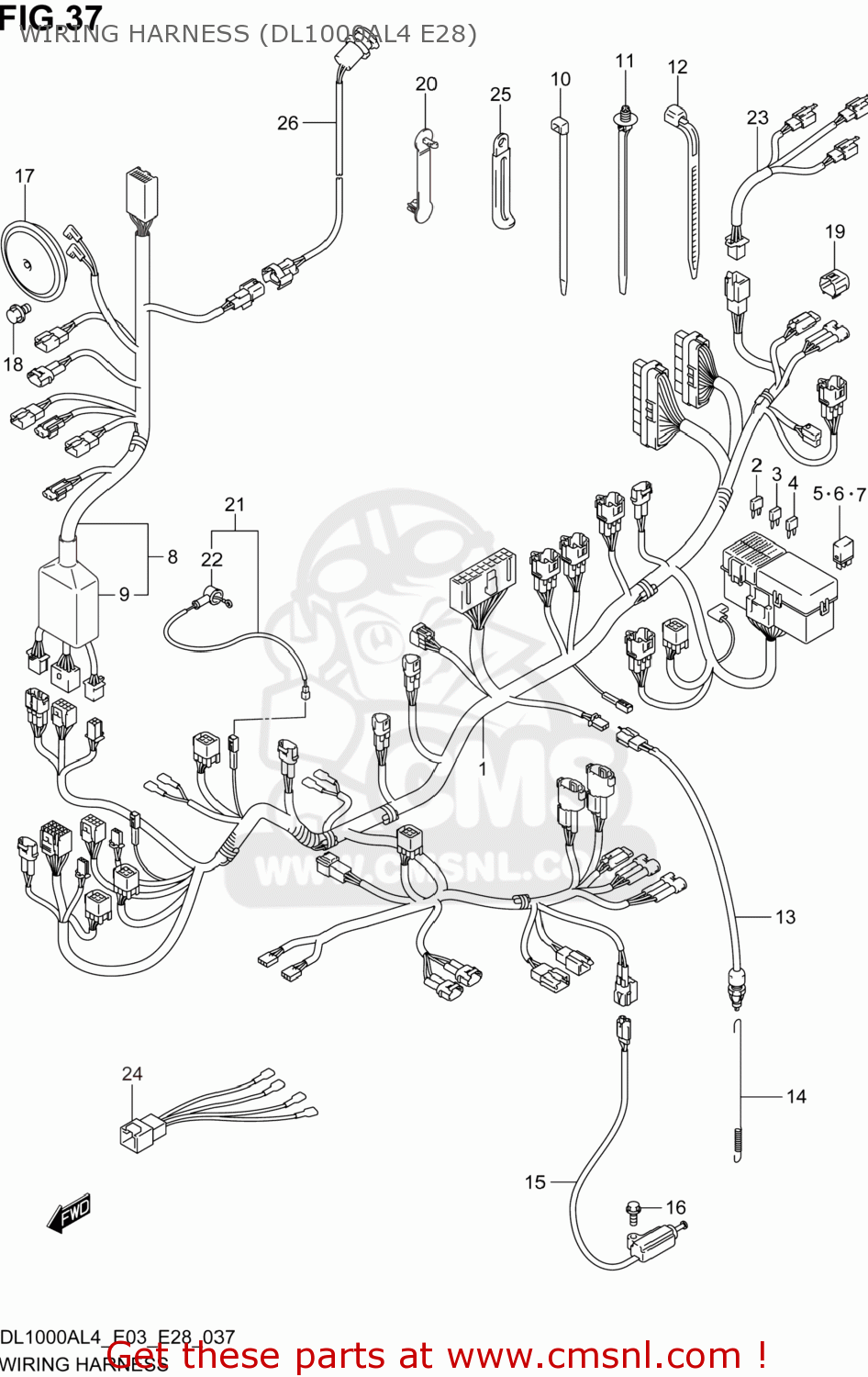

Wiring harness (dl1000al4 e28) diagram DL1000A VSTROM 2014 (L4) USA (E03)

WIRING HARNESS (DL1000AL4 E28) DL1000A VSTROM 2014 (L4) USA (E03)
WIRING HARNESS (DL1000AL4 E28) DL1000A VSTROM 2014 (L4) USA (E03)
WIRING HARNESS (DL1000AL4 E28) DL1000A VSTROM 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3661031J80
ref: 1
HARNESS,WIRING NO.1
€ 0.00
2
0948110504
ref: 2
FUSE(10A)
0948110504
€ 3.00
3
0948115504
ref: 3
FUSE(15A)
0948115504
€ 2.50
4
0948125504
ref: 4
FUSE(25A)
0948125504
€ 2.50
5
3886076F01
ref: 5
RELAY ASSY
€ 29.00
6
3886076F01
ref: 6
RELAY ASSY
€ 29.00
7
3886076F01
ref: 7
RELAY ASSY
€ 29.00
8
3662031J00
ref: 8
HARNESS,WIRING NO.2
3662031J00
€ 240.50
9
3661818G10
ref: 9
COVER,CONNECTOR
€ 8.00
10
0940714407
ref: 10
CLAMP(L:145)
0940714407
€ 4.00
11
0940717403
ref: 11
CLAMP(L:154)
0940717403
€ 5.50
12
0940714403
ref: 12
CLAMP(L:125)
0940714403
€ 2.50
13
3774031D00
ref: 13
SWITCH ASSY,STOP LAMP
3774031D00
€ 20.50
14
4325931J00
ref: 14
SPRING,STOP LAMP SWITCH
4325931J00
€ 3.50
15
3784024F00
ref: 15
SWITCH ASSY,SIDE STAND
3784024F00
€ 63.50
16
0910308357
ref: 16
BOLT(8X35)
0910308357
€ 2.00
17
3850041F50
ref: 17
HORN ASSY
€ 60.00
18
015500612B
ref: 18
BOLT
015500612B
€ 2.50
19
3665406J00
ref: 19
CAP,TS
3665406J00
€ 8.50
20
3665148E00
ref: 20
CLAMP(L:63)
3665148E00
€ 2.50
21
3685131J00
ref: 21
WIRE,OIL PRESSURE SWITCH LEAD
3685131J00
€ 12.00
22
3661843410
ref: 22
CAP,OIL PRESSURE SWITCH
3661843410
€ 2.50
23
3685631J00
ref: 23
WIRE,REAR TURNSIGNAL LEAD
3685631J00
€ 24.00
24
3685431J00
ref: 24
WIRE,REAR COMB LEAD
3685431J00
€ 18.00
25
0940406429
ref: 25
CLAMP(L:45)
€ 2.50
26
3885031J00
ref: 26
TERMINAL,POWER SOURCE
3885031J00
€ 46.00
