REAR CALIPER
DL1000A VSTROM 2014 (L4) USA (E03)

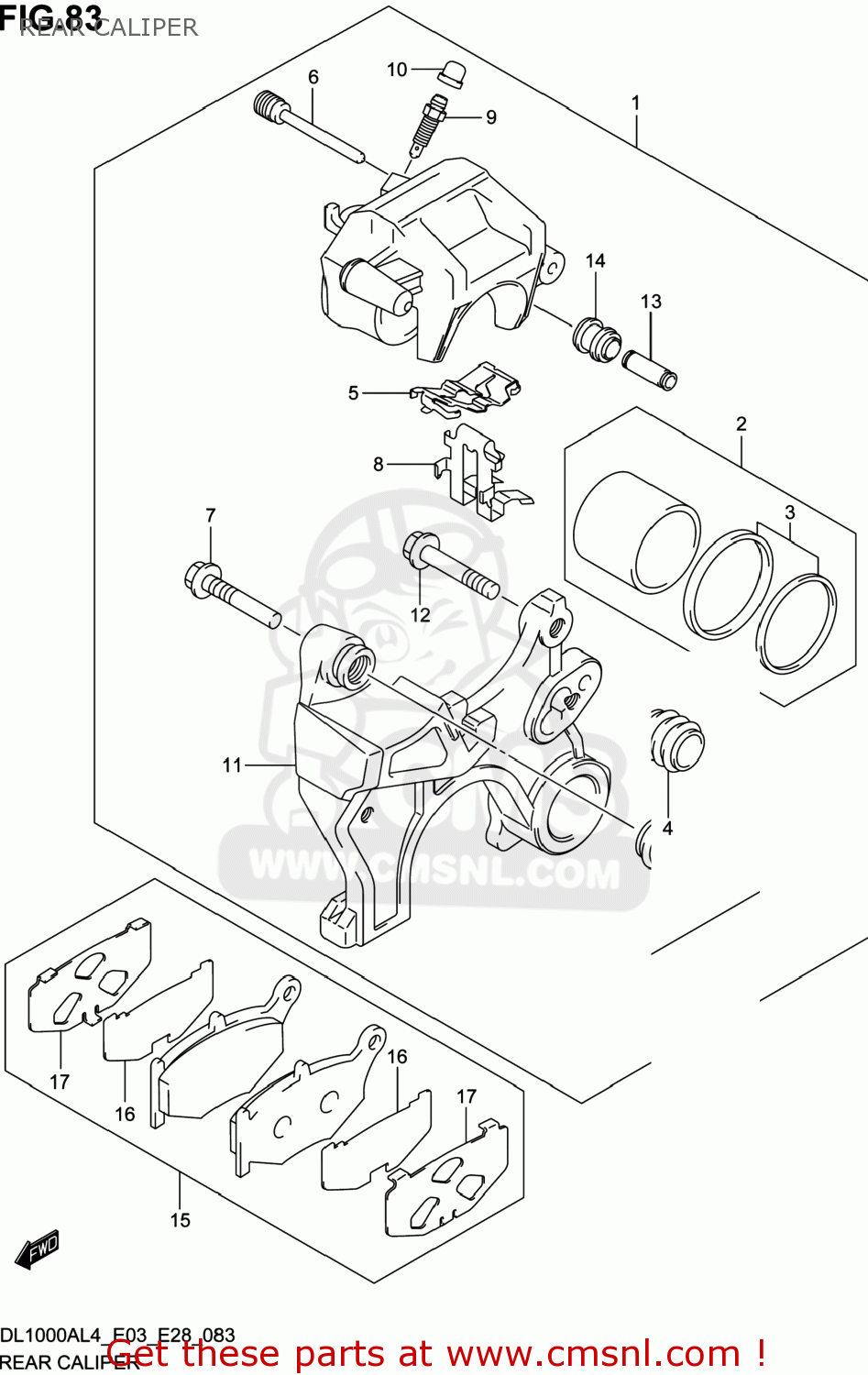

Rear caliper diagram DL1000A VSTROM 2014 (L4) USA (E03)
REAR CALIPER DL1000A VSTROM 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6910031J00999
ref: 1
CALIPER ASSY,RR
€ 230.00
2
6910044890
ref: 2
PISTON SET
€ 42.50
3
6910205880
ref: 3
SEAL SET,PISTON
€ 16.50
4
5911244B00
ref: 4
BOOT,AXLE
€ 8.00
5
6911544G00
ref: 5
SPRING,PAD
€ 11.50
6
5914140F00
ref: 6
PIN,PAD
€ 31.50
7
6910544G00
ref: 7
PIN,BOLT
€ 11.00
8
6911644G00
ref: 8
RETAINER
€ 8.50
9
5912118410
ref: 9
BLEEDER
€ 8.00
10
5515666310
ref: 10
CAP,BLEEDER PLUG
€ 6.00
11
6915031J00
ref: 11
BRACKET
€ 150.00
12
6918244G00
ref: 12
BOLT
€ 9.50
13
6918544G00
ref: 13
SLEEVE
€ 13.50
14
6918644G00
ref: 14
BOOT,SLEEVE
€ 11.00
15
6910144890
ref: 15
PAD & SHIM SET (NAS)
€ 54.00
16
6913244G10
ref: 16
INSULATOR
€ 10.50
17
6913344G00
ref: 17
SHIM
€ 5.00
